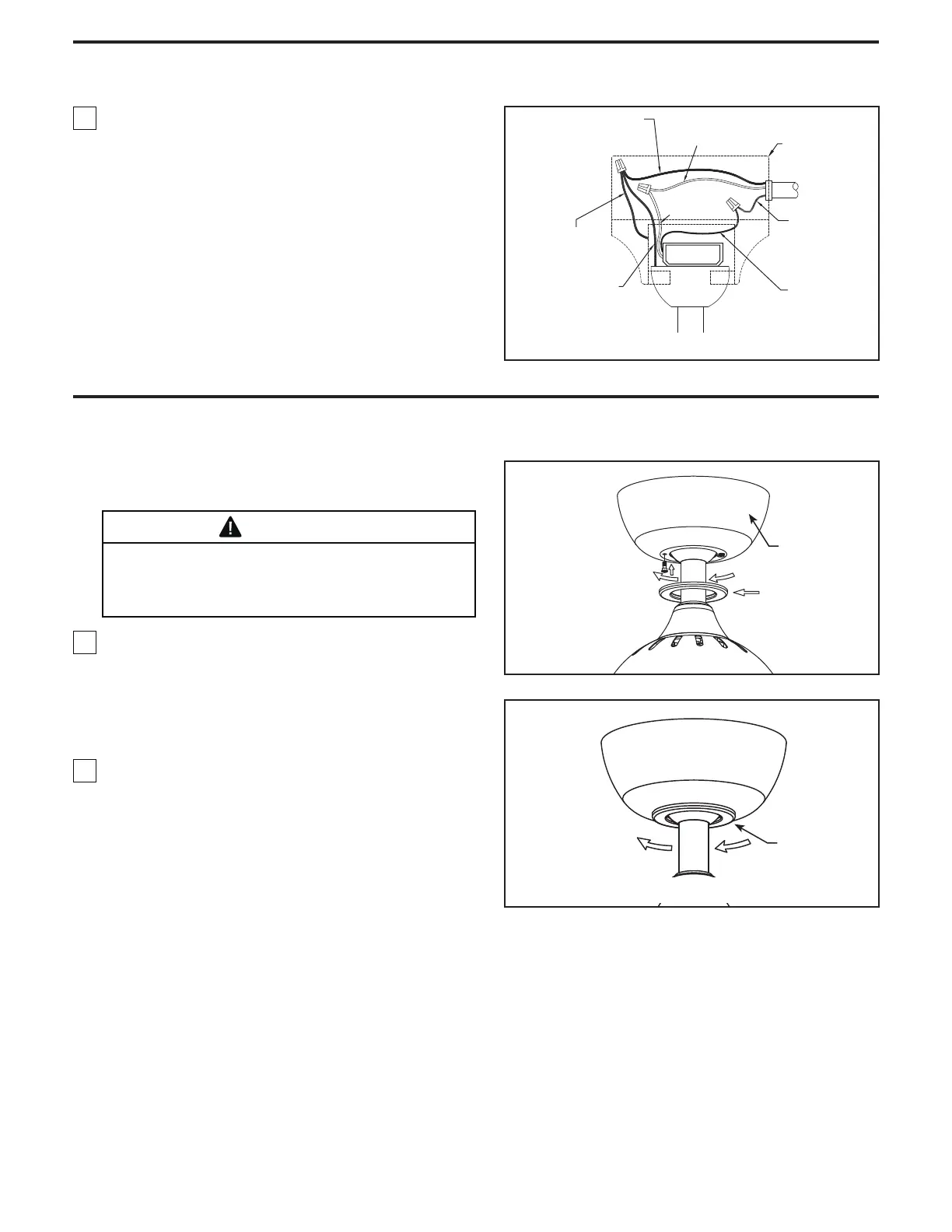

How to Wire Your Ceiling Fan (Continued)
Figure 4
Green Wire
from Supply
(Ground)
White Wire
from Supply
White Wire
from Receiver
Green Wire
from Hanger
Bracket (Ground)
Green Wire
from Hanger
Ball (Ground)
Listed
Outlet Box
Ceiling Canopy
Canopy Screw
Cover
Household
Supply
Black Wire
from Supply
Black Wire
from Receiver
Receiver
3. After connections have been made, turn leads
upward and carefully push leads into the outlet box,
with the white and green leads to one side of the box
and the black leads to the other side. (Figure 4)
How to Install Your Canopy Housing
Figure 1
Figure 2
NOTE: This step is applicable after the neccessary
wiring is completed.
1. Assemble canopy by rotating key slot in ceiling
canopy over shoulder screw in hanger bracket, taking
care not to pinch the wires. Tighten shoulder screws.
Fully assemble and tighten second shoulder screw
that was previously removed. (Figure 1)
2. Securely attach and tighten the canopy screw cover
over the shoulder screws in the hanger bracket
utilizing the key slot twist-lock feature. (Figure 2)
WARNING
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the canopy
housing and not pinched between the housing and the
ceiling.
11
