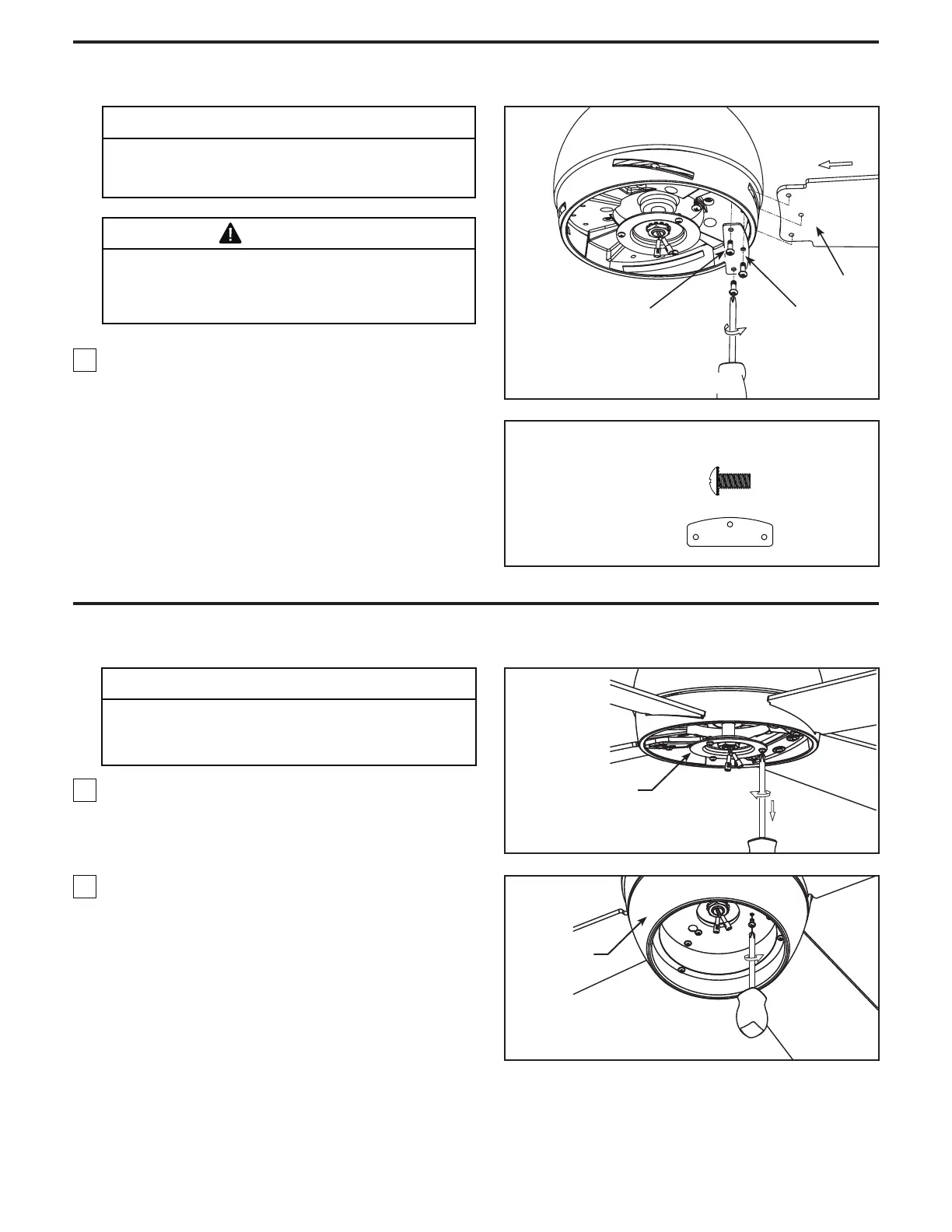

How to Assemble Your Ceiling Fan Blades
HARDWARE USED:
x 12
x 4
INSTALLATION NOTE
Do not connect fan blades until the fan is completely
installed. Installing the fan with blades assembled may
result in damage to the fan blades.
WARNING
To reduce the risk of personal injury, do not bend the
blades when installing, balancing or cleaning the fan.
Do not insert foreign objects in between the rotating
blades.
1. Carefully slide the blade through the slot as shown.
Securely fasten the four blades to the motor housing
using the blade plates and serrated head screws.
(Figure 1)
NOTE: You will find the fan blade set packed in its
own carton and hardware bag in the fan box .
1. Remove one of the three screws in the support
bracket at the bottom of the motor assembly. Retain
the screw for later and slightly loosen the remaining
two screws. (Figure 1)
2. Assemble the light plate assembly to the support
bracket using the two key slots in the light plate
assembly. Replace the previously removed screw and
securely tighten all three screws. (Figure 2)
How to Assemble Your Light Kit or Cap
Motor Assembly
Figure 1
Figure 1
Light Plate
Assembly
Figure 2
12
3/16″-24
Serrated Head Screws
(3 each per blade)
3/16″-24
Serrated Head Screw
Blade Plate
Blade Plate
Blade
CAUTION
To reduce the risk of electric shock, disconnect the
electrical supply circuit to the fan before installing
your light kit.
To Next Page
