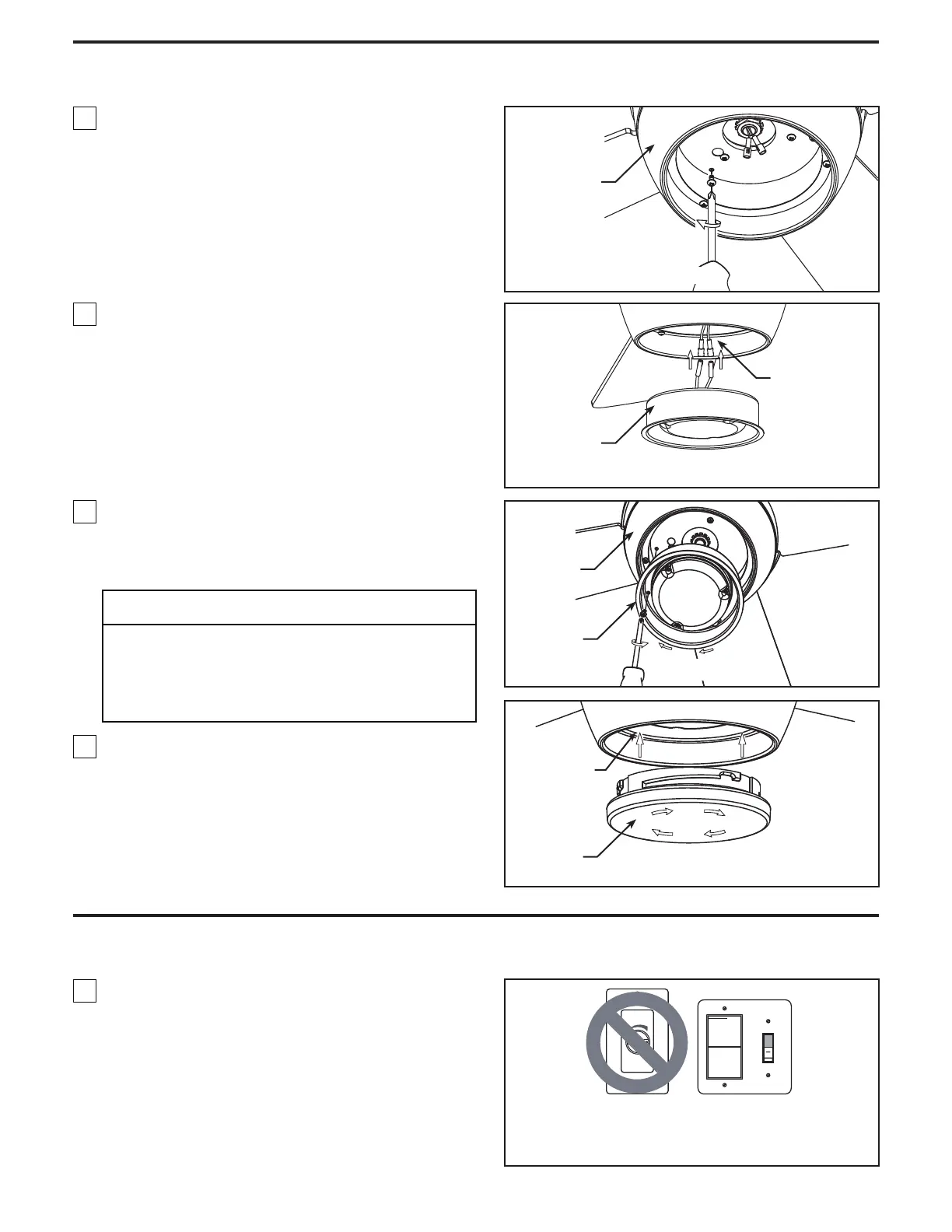

3. Remove one of the three screws in light plate
assembly. Retain the screw for later and slightly
loosen the remaining two screws. (Figure 3)
4. Connect the 2 single pin connectors from the light
kit to the 2 single pin connectors from motor
assembly. (Figure 4)
5. Assemble the light kit to the light plate assembly
using the two key slots in light kit. Replace the
previously removed screw and securely tighten all
three screws. (Figure 5)
6. Secure the glass to light kit by twisting in a
clockwise direction. Twist the glass gradually
until it
snaps on to the light kit.
Do not over-tighten.
(Figure 6)
How to Assemble Your Light Kit or Cap (Continued)
Light Plate
Assembly
Motor Assembly
Light Kit
Light Plate
Assembly
Light Kit
Light Kit
Figure 4
Figure 5
Figure 3
CAUTION
The light source is designed for this specific
application and can overheat if serviced by untrained
personnel. If any servicing is required, the product
should be returned to an authorized service facility
for examination or repair.
Glass
Figure 6
How to Operate Your Ceiling Fan
Figure 1
For illustrative purposes only-not
intended to cover all types of controls
1. IMPORTANT: Using a full range dimmer switch (not
included) to control fan speed will damage the fan. To
reduce the risk of fire or electrical shock, do not use a
full range dimmer switch to control the fan speed.
(Figure 1)
13
