10
NOTE: If fan or supply wires are different colors than indicated, ha

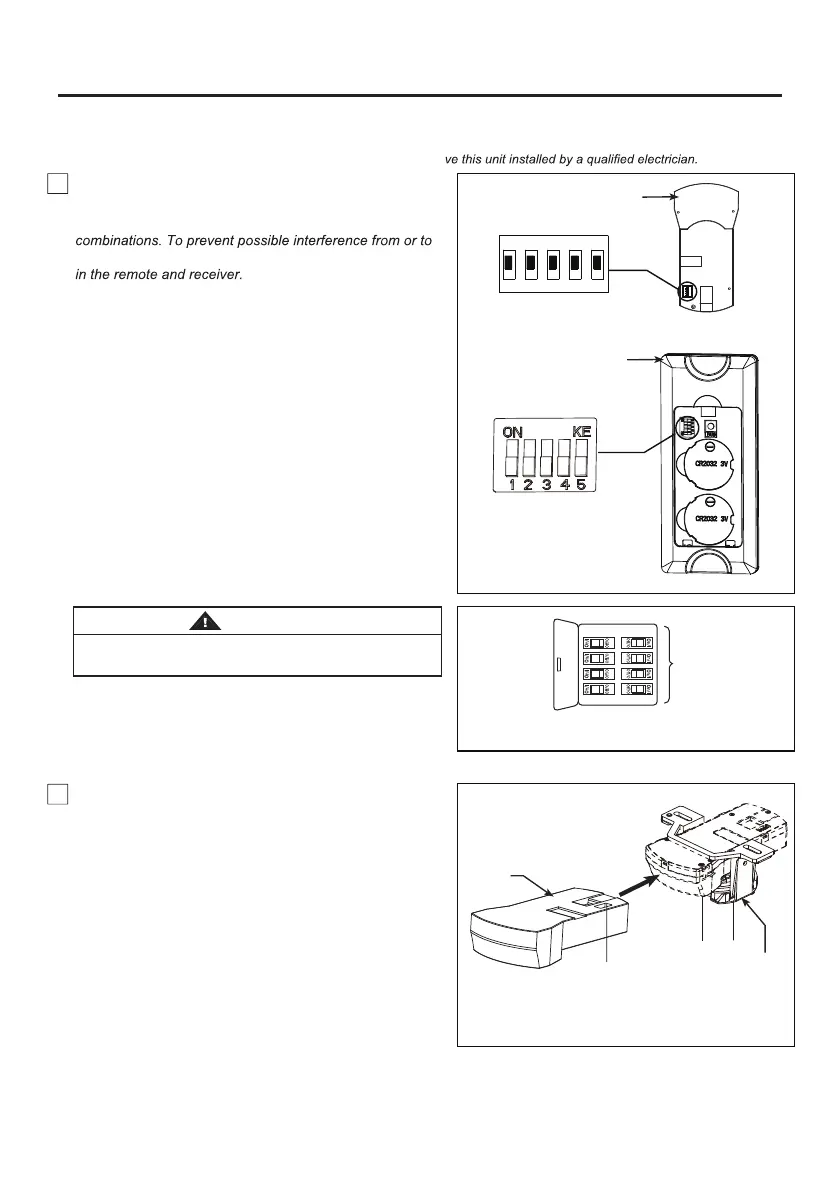

How to Wire Your Ceiling Fan
MAIN FUSE BOX
Figure 2
Figure 3
Figure 1
Dip Switch
ON
1 2 3 4 5
1. To set the code on receiver unit, slide dip switches to
the same positions as set on the remote control. (Figure 1)
NOTE: The remote unit has 32 different code
other remote units, simply change the combination code
NOTE: Factory setting is all up. Do not use this position.
2. Slide the receiver into the hanger bracket before wiring
as shown in figure 3.
Hanger Bracket
Receiver
Unit
Receiver Unit
Dip Switch
NOTE: Supply wires
omitted for clarity
NOTE:
If you are not sure if the outlet box is
grounded, contact a licensed electrician for advice, as
it must be grounded for safe operation.
WARNING
To avoid possible electrical shock, be sure electricity is
turned off at the main fuse box before wiring. (Figure 2)
Remote Control
Dip Switch
To Next Page
