Downrod
Set Screw
Hanger Ball
7

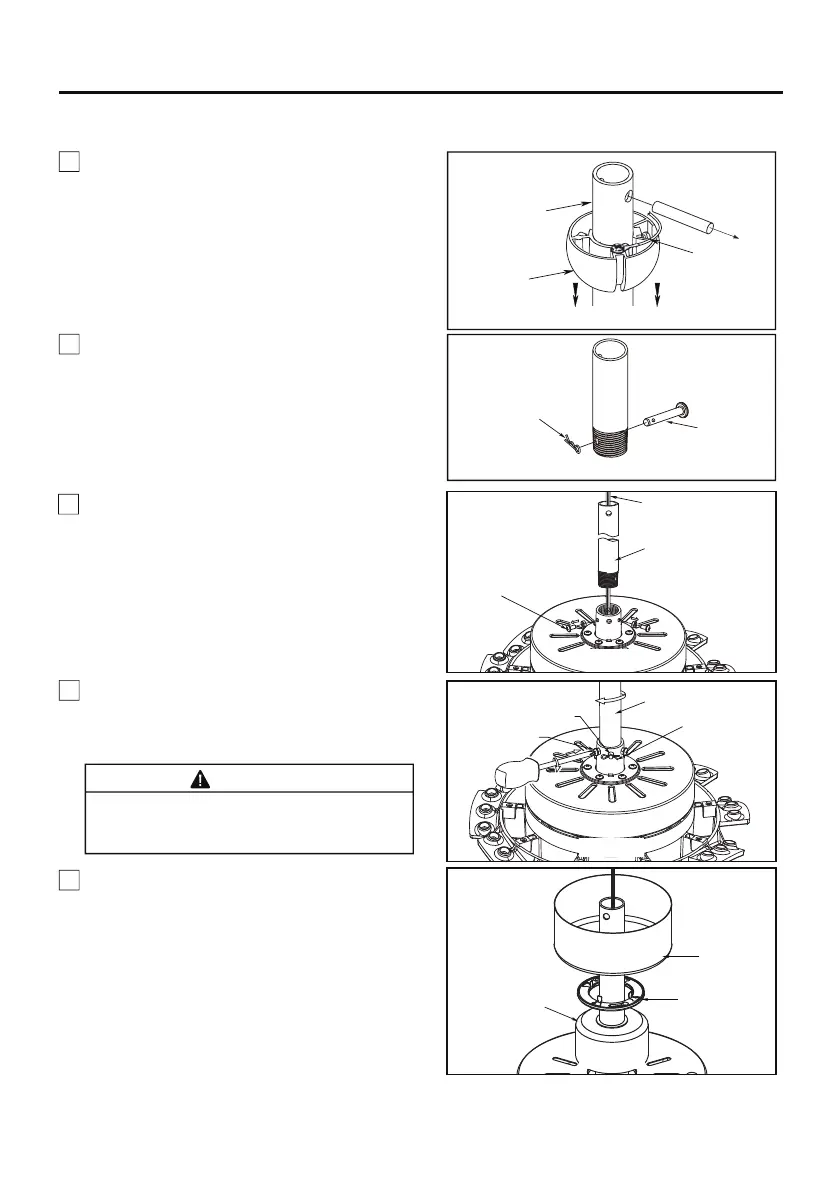

How to Assemble Your Ceiling Fan
Downrod
Set Screws (2)
Figure 1
Figure 2
4. Thread downrod into the downrod support on top of
the motor. Install the clevis pin by aligning the holes
in the downrod support with holes in the downrod.
Secure clevis pin with hairpin clip. Tighten the two set
screws with nuts in the downrod support. (Figure 4)
WARNING
It is critical that the clevis pin in the downrod support
is properly installed and the set screws and nuts are
securely tightened. Failure to do so could result in
the fan falling.
2. Remove the hairpin clip and clevis pin from the
bottom of the downrod. Retain the pin and clip for
reinstallation in Step 4. (Figure 2)
Downrod
Set Screws and
Locking Nuts (2)
Clevis Pin
Hairpin Clip
Figure 4
Figure 5
5. Route wires through motor coupling cover, canopy
screw cover and ceiling canopy. (Figure 5)
Motor Coupling
Cover
Ceiling Canopy
Canopy Screw
Cover
Figure 3
Hairpin
Clip
Clevis Pin
Black/White, Blue, Red,
Gray, Yellow wires
3. Loosen the two set screws and locking nuts in
the downrod support of the motor assembly. Route
the black/white, blue, red, gray, yellow wires through
the downrod. (Figure 3)
1. Remove the hanger ball portion from the downrod/
hanger ball assembly by loosening the set screw in the
hanger ball until the ball falls freely down the downrod.
Remove the pin from the downrod, then remove the
hanger ball. Retain the pin and hanger ball for reinstalla-
tion in Step 6. (Figure 1)
To Next Page
