13

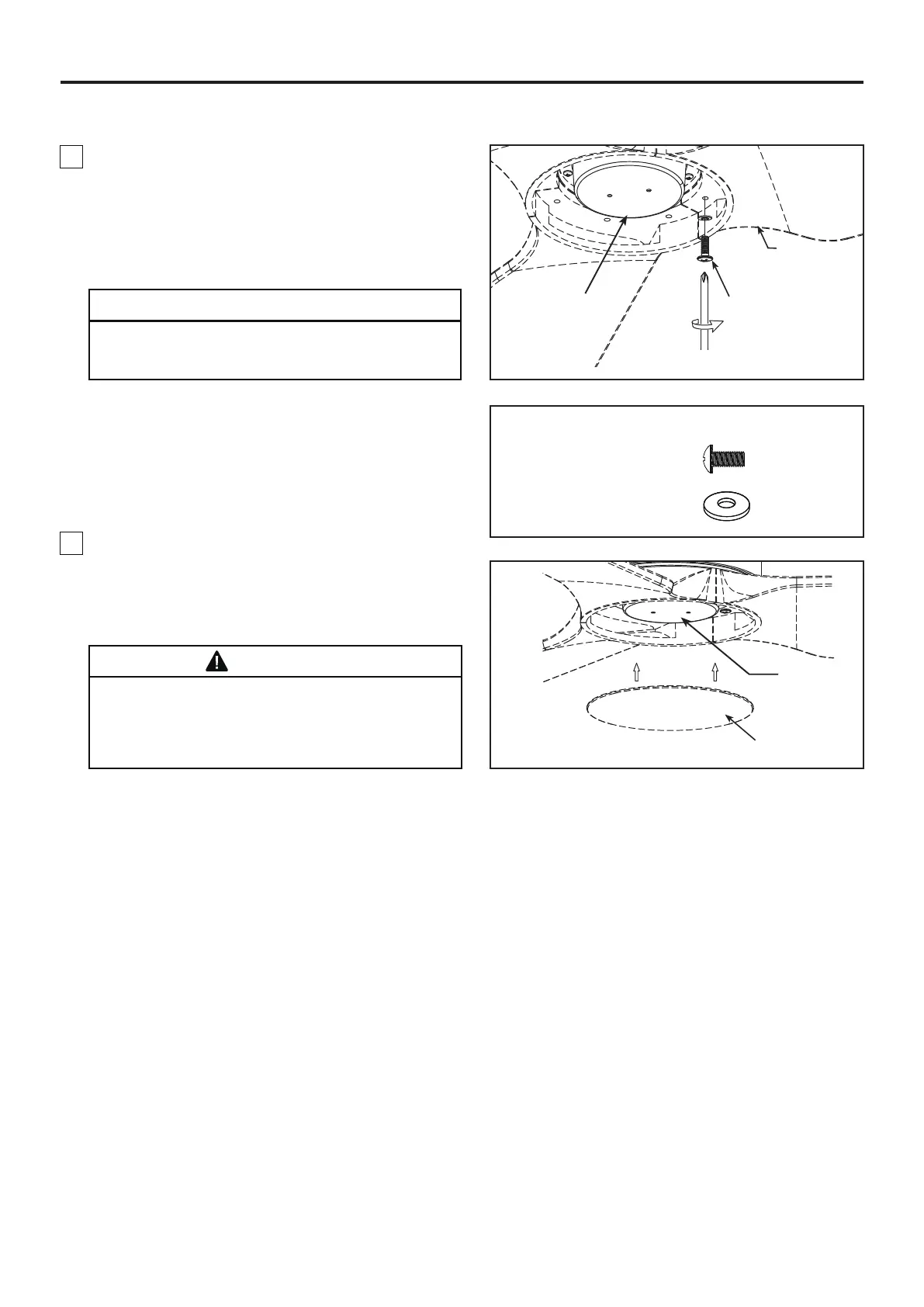

How to Assemble Your Ceiling Fan Blades and Cap
1. Secure the three blades using the 3/16˝-24 serrated
head screws with flat washers through the holes
located on the bottom of the motor assembly.
(Figure 1)
NOTE: You will find the fan blade set packed in its
own carton and hardware bag in the fan box.
2. Attach the plastic cap assembly to the motor
assembly, which is held in place by a magnet.
(Figure 2)
NOTE: You will find plastic cap in fan blade set carton.
CAUTION
Do not connect fan blades until the fan is completely
installed. Installing the fan with blades assembled may
result in damage to the fan blades.
HARDWARE USED:
x 9
x 9
3/16″-24
Serrated Head
Screws
3/16″-24
Serrated Head
Screw and Flat Washer
(3 each per blade)
Stainless
Flat Washers
WARNING
To avoid injury to you hand, please be careful when
installing the plastic plate to magnet on the motor
assembly as the strength of the magnet will quickly
attract the cap, causing it to snap down, possibly
pinching or crushing your hand.
Figure 1
Figure 2
Motor Assembly
Motor
Assembly
Plastic Cap
Blade
(not included)
To Next Page
