Tools Needed for Assembly
(Not Included)
Materials
WARNING
Before assembling your ceiling fan, refer to section on
proper method of wiring your fan (page 10). If you feel you
do not have enough wiring knowledge or experience, have
your fan installed by a licensed electrician.
This manual is designed to make it as easy as possible for you to assemble,
install, operate and maintain your ceiling fan
• One Phillips head screwdriver
• One ¼˝ blade screwdriver
• One stepladder
• One wire stripper
Wiring outlet box and box connectors must be of type
required by local code. The minimum wire would be a 3-
conductor (2-wire with ground) of the following size:
nstalled ire ength
ire i e
p to ft
ft
Unpacking Instructions

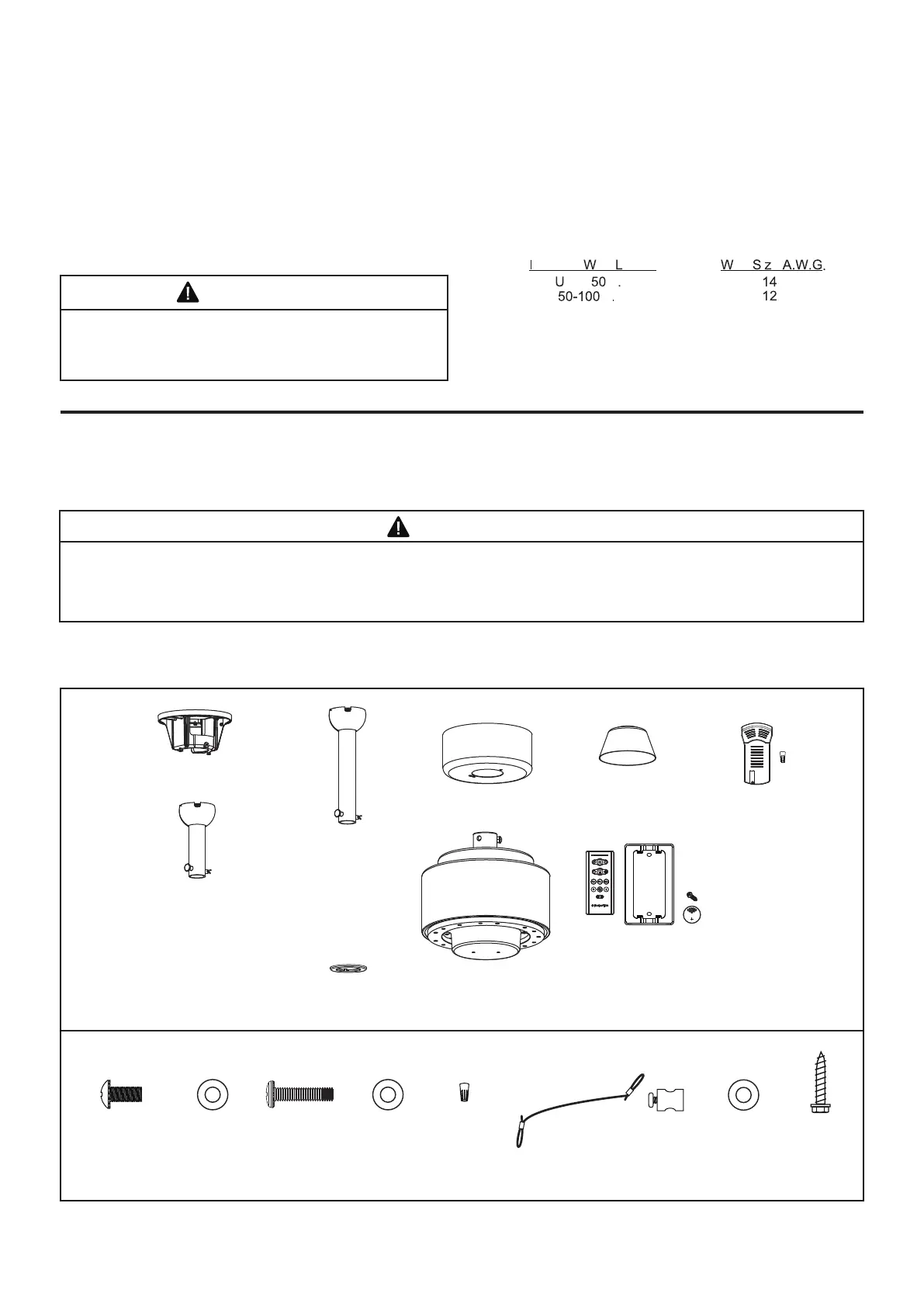

1. Check to see that you have received the following parts:
NOTE: If you are uncertain of part description, refer to exploded view illustration.
WARNING
Do not install or use fan if any part is damaged or missing. This product is designed to use only those parts supplied with
this product and/or any accessories designated specifically for use with this product by Fanimation. Substitution of parts
or accessories not designated for use with this product by Fanimation could result in personal injury or property damage.
Contact your retail store for missing or damaged parts.
For your convenience, check-off each step. As each step is completed, place a check mark. This will ensure that all steps have been
completed and will be helpful in finding your place should you be interrupted.
Hanger Bracket
Assembly (1)
Motor Coupling
Cover Assembly (1)
Hardware Bags Safety Cable Kit
Receiver (1)
Wire Connectors (9)
Motor Assembly (1)
Ceiling Canopy (1)
Downrod/Hanger Ball
Assembly (MAD8514**) (1)
– Downrod (1)
– Hanger Ball (1)
– Set Screw (1)
– Hairpin Clip (1)
– Clevis Pin (1)
– Pin (1)
Downrod/Hanger Ball
Assembly (MAD8515**) (1)
– Downrod (1)
– Hanger Ball (1)
– Set Screw (1)
– Hairpin Clip (1)
– Clevis Pin (1)
– Pin (1)
Canopy Screw
Cover Assembly (1)
3/16"-24
Serrated Head Screws
(10)
#8-32
Outlet Box Screws,
Stainless Steel
(2)
Wire Connectors
(4)
Safety Cable
(1)
Cable Clamp
(1)
Flat Washer,
Stainless Steel
(1)
Lag Bolt
(1)
4
Flat Washers,
Stainless Steel
(2)
Flat Washers,
Stainless Steel
(10)
NOTE: Place the parts from the loose parts bags in a small
container to keep them from being lost. If any parts are
missing, contact your local retailer.
Hand-held Remote (1)
Wall Plate (1)
Screws (2)
Batteries (2)
To Next Page
