How to Assemble Your Ceiling Fan
7

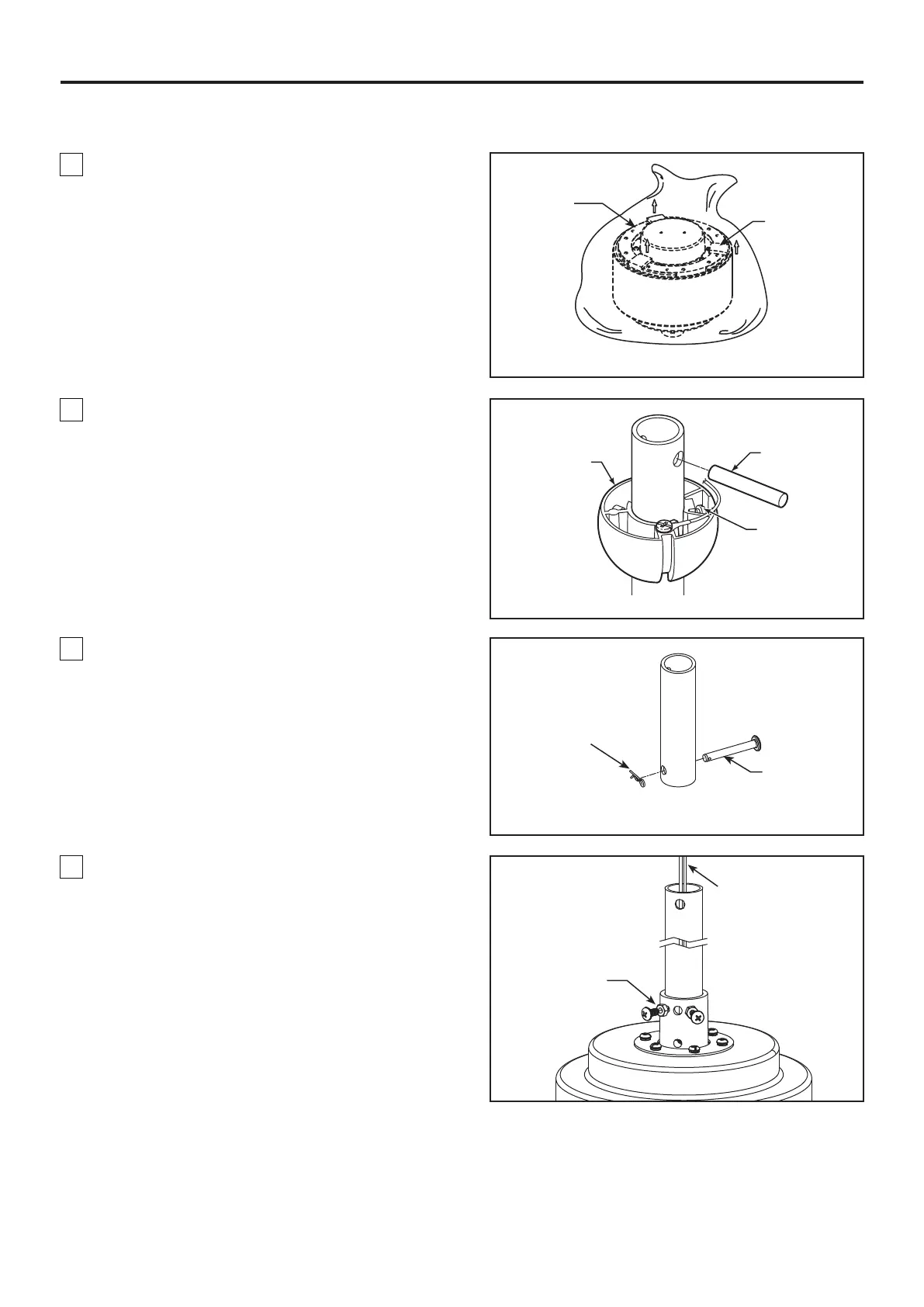

Figure 2
2. Prior to assembly, set aside and save the hardware
bags packaged with your fan. Remove the hanger ball
by loosening the set screw in the hanger ball until the
ball falls freely down the downrod. Remove the pin
from the downrod, then remove the hanger ball.
Retain the pin and hanger ball for reinstallation in
Step 7. (Figure 2)
Hanger
Ball
Pin
Set Screw
Figure 3
3. Remove the hairpin clip and clevis pin from the
bottom of the downrod. Retain the pin and clip for
reinstallation in Step 5. (Figure 3)
Clevis Pin
Hairpin Clip
4. Loosen the two set screws and locking nuts in the
downrod support of the motor assembly. Route the
brown, blue, red, gray, yellow wires and safety cable
through the downrod. (Figure 4)
Brown, Blue, Red, Gray,
Yellow wires and Safety
Cable
Set Screws
and Nuts (2)
Figure 4
1. Remove the three stabilizer tabs and plastic bag
from the motor. Discard the stabilizer tabs. (Figure 1)
Motor
Assembly
Stabilizer
Tabs
Figure 1
