How to Wire Your Ceiling Fan (Continued)
WARNING
The blades must be installed first before programming
is performed.

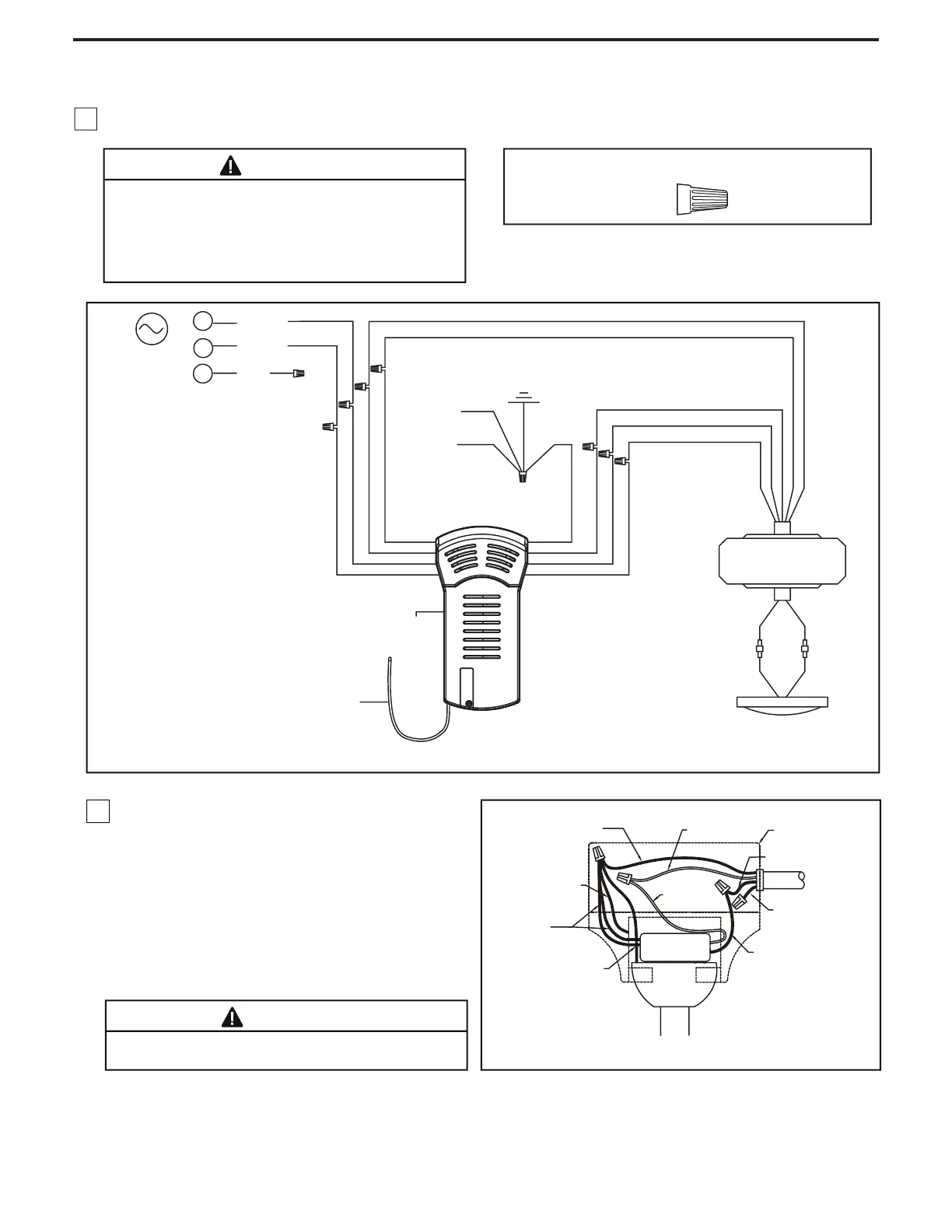

3. Connect wires using connectors as shown in
Figure 4.
x 9
RECEIVER HARDWARE USED:
CAUTION: INCORRECT WIRE CONNECTION
COULD DAMAGE THIS RECEIVER.
WARNING
Check to see that all connections are tight,
including ground, and that no bare wire is
visible at the wire connectors. Do not operate
fan until the blades are in place. Noise and
motor damage could result.
Listed Outlet Box
White Wire
from Supply
Green Wire
from Supply
(Ground)
Household
Supply
Black Wire
from Supply
Black Wire
from Receiver
White Wire
from Receiver
Green Wire
from Hanger
Bracket (Ground)
Green Wire
from Hanger
Ball (Ground)
Green Wire
from Receiver (2)
(Ground)
Receiver
Figure 5
Red Wire
from Supply
4. After connections have been made, put the
white and green leads to one side and the black
leads towards the other side, the connection
should be turned upward and carefully push leads
into the outlet box. The wires should be spread
apart with the grounded conductor and the
equipment-grounding conductor on one side of
the outlet box and the ungrounded conductor on
the other side. (Figure 5)
Wire
Connectors
Figure 4
BLACK
WHITE
L
N
RED
L1
AC POWER
BLUE
LIGHT KIT
DC MOTOR
RF ANTENNA
RECEIVER
BROWN
WHITE
BLACK WHITE BLUE
BLUE
BROWN
YELLOW / GREEN (2)
HANGER
BRACKET
HANGER
BALL
RED GRAY YELLOW
RED
GRAY
YELLOW
GROUND
