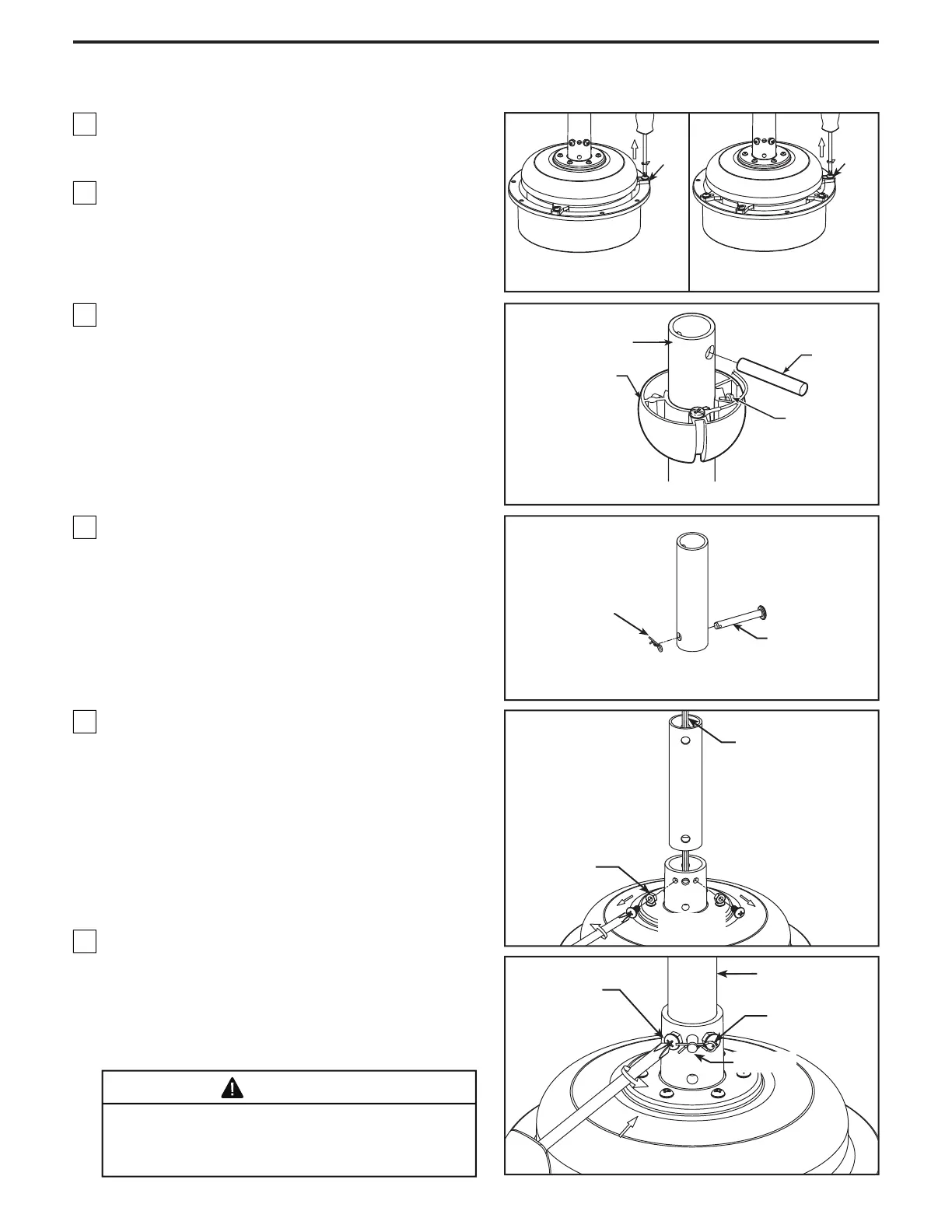

How to Assemble Your Ceiling Fan
7
Figure 2
2. Prior to assembly, set aside and save the hardware
bags packaged with your fan. Remove the hanger ball
by loosening the set screw in the hanger ball until the
ball falls freely down the downrod. Remove the pin
from the downrod, then remove the hanger ball.
Retain the pin and hanger ball for reinstallation in
Step 7. (Figure 2)
Hanger
Ball
Pin
Set screw
Figure 3
Figure 4
3. Remove the hairpin clip and clevis pin from the
bottom of downrod. Retain the pin and clip for
reinstallation in Step 5. (Figure 3)
Clevis Pin
Hairpin Clip
5. Slide downrod into the downrod support on top of
the motor. Install the clevis pin by aligning the holes in
the downrod support with holes in the downrod.
Secure clevis pin with hairpin clip. Install and tighten
the two set screws with nuts in the downrod support.
Securely tighten the set screws with screwdriver then
fully tighten the nuts by hex wrench. (Figure 5)
WARNING
It is critical that the clevis pin in the downrod support
is properly installed and the set screws and nuts are
securely tightened. Failure to do so could result in
the fan falling.
4. Loosen the two set screws and locking nuts in the
downrod support of the motor assembly. Route the
brown, blue, red, gray and yellow wires through the
downrod. (Figure 4)
1A. MAD8530**
Remove and discard the three rubber/screws motor
stops from the motor assembly. (Figure 1a)
1B. MAD8531**
Remove and discard the six rubber/screws motor
stops from the motor assembly. (Figure 1b)
Figure 1a Figure 1b
Motor
Stops
Motor
Stops
Downrod
Brown, Blue, Red, Gray,
and Yellow wires
Set Screws
and Nuts (2)
Figure 5
Hairpin Clip
Clevis Pin
Set Screws
and Nuts (2)
Downrod
To Next Page
