6 to 9 in.

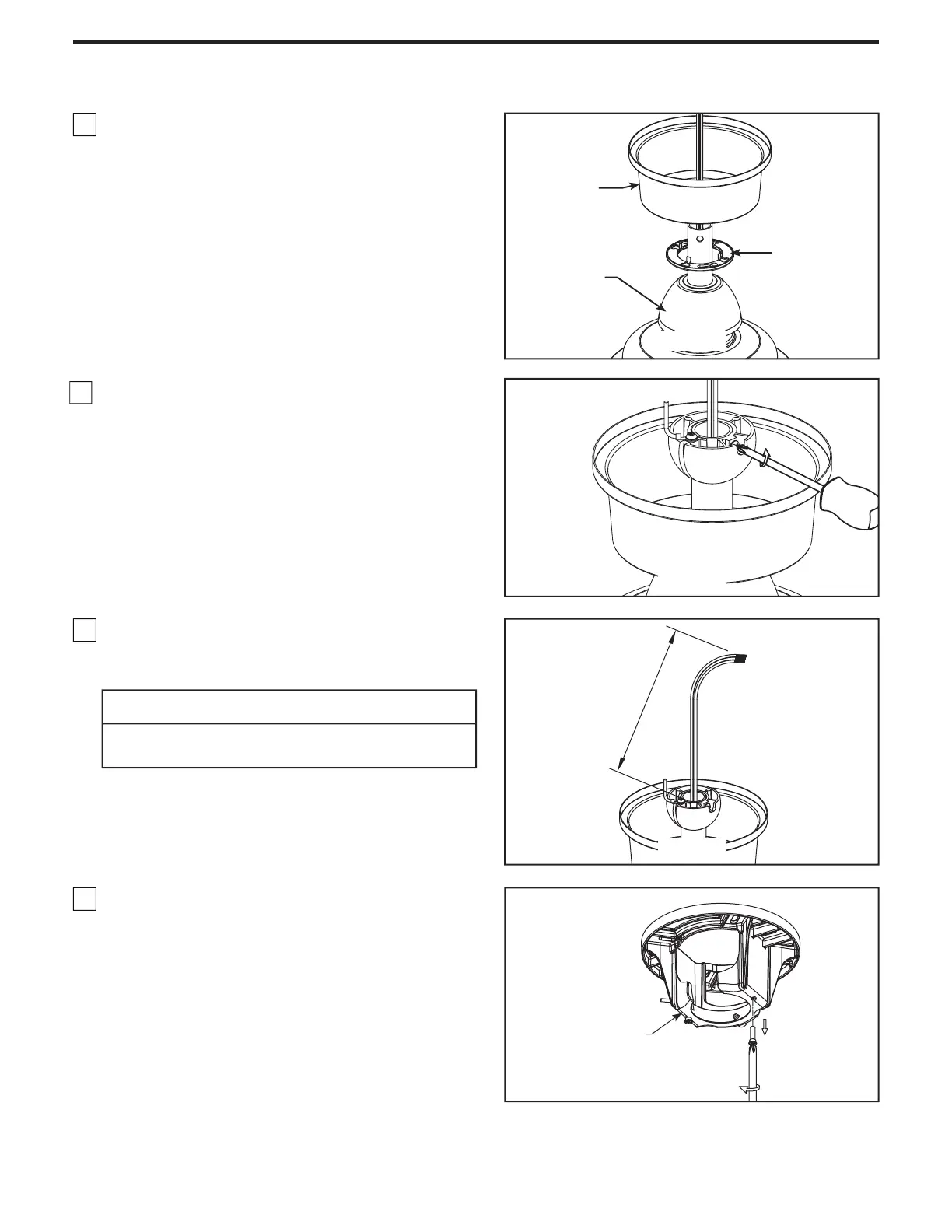

6. Route wires through motor coupling cover, canopy
screw cover and ceiling canopy. (Figure 6)
8. Cut off excess lead wire approximately 6 to 9 inches
above top of the downrod. Strip insulation off 1/2 inch
from the end of each lead wire. (Figure 8)
9. Remove one of the two shoulder screws in the
hanger bracket and retain the screw for later. Loosen
the second shoulder screw without fully removing it.
(Figure 9)
How to Assemble Your Ceiling Fan (Continued)
8
Canopy Screw
Cover
Ceiling
Canopy
Motor
Coupling
Cover
Figure 6
Figure 8
7. Reinstall the hanger ball on the downrod as follows.
Route the brown, blue, red, gray and yellow wires
through the hanger ball. Position the pin through the
two holes in the downrod and align the hanger ball
so the pin is captured in the groove in the top of the
hanger ball. Pull the hanger ball up tight against the pin.
Securely tighten the set screw in the hanger ball.
A loose set screw could cause fan wobble. (Figure 7)
CAUTION
All set screws must be checked, and retightened where
necessary before installation.
Hanger Bracket
Figure 9
Figure 7
To Next Page
