Fantic XE 50 - Main Parts; Controls (Enduro Version)

MAIN PARTS
16
MAIN PARTS

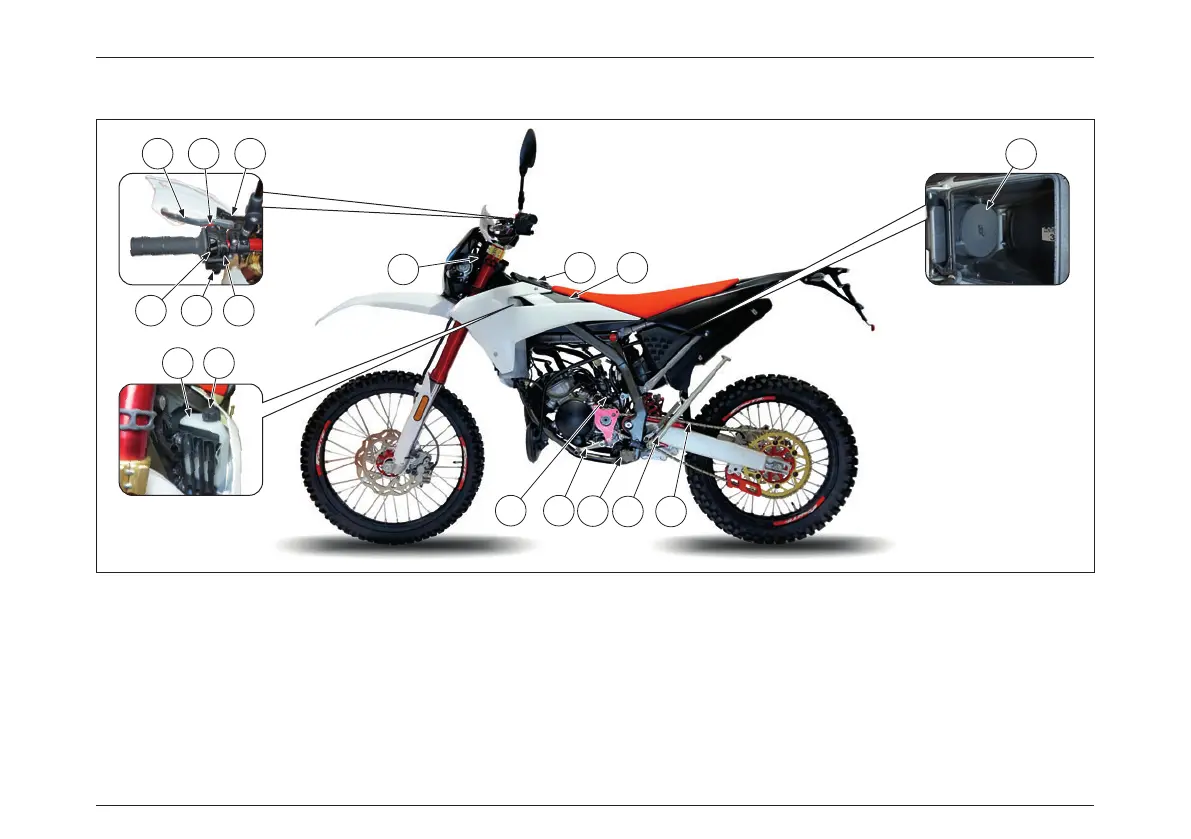

CONTROLS (“ENDURO” VERSION)
1. Clutch control lever
2. Stop engine switch
3. Cold start device or choke
4. Beam diverter
5. Indicator switch
6. Horn button
7. Steering lock
8. Fuel filler cap
9. Fuel tank
10. Air filter
11. Auto-Mixer oil reservoir
12. Auto-Mixer oil reservoir fi ller cap
13. Engine idling speed adjusting screw
14. Gear lever
15. Left footrest
16. Side stand
17. Chain
654
11 12
10
8 9
7
1413
15
16
17
1 2 3
