C50 Card Printer Service Manual PLT-01278 rev 1.1
August 2013
Page 14
HID GLOBAL CONFIDENTIAL AND/OR PROPRIETARY INFORMATION. This document contains confidential and/or proprietary information,
which may not be duplicated, published, disseminated or disclosed, or used for any purpose, without the written consent of HID Global
Corporation. If you are an unintended recipient of this information or are unwilling to accept the above restrictions, please immediately return
this document to HID Global Corporation, 15370 Barranca Pkwy, Irvine, CA 92618-3106..

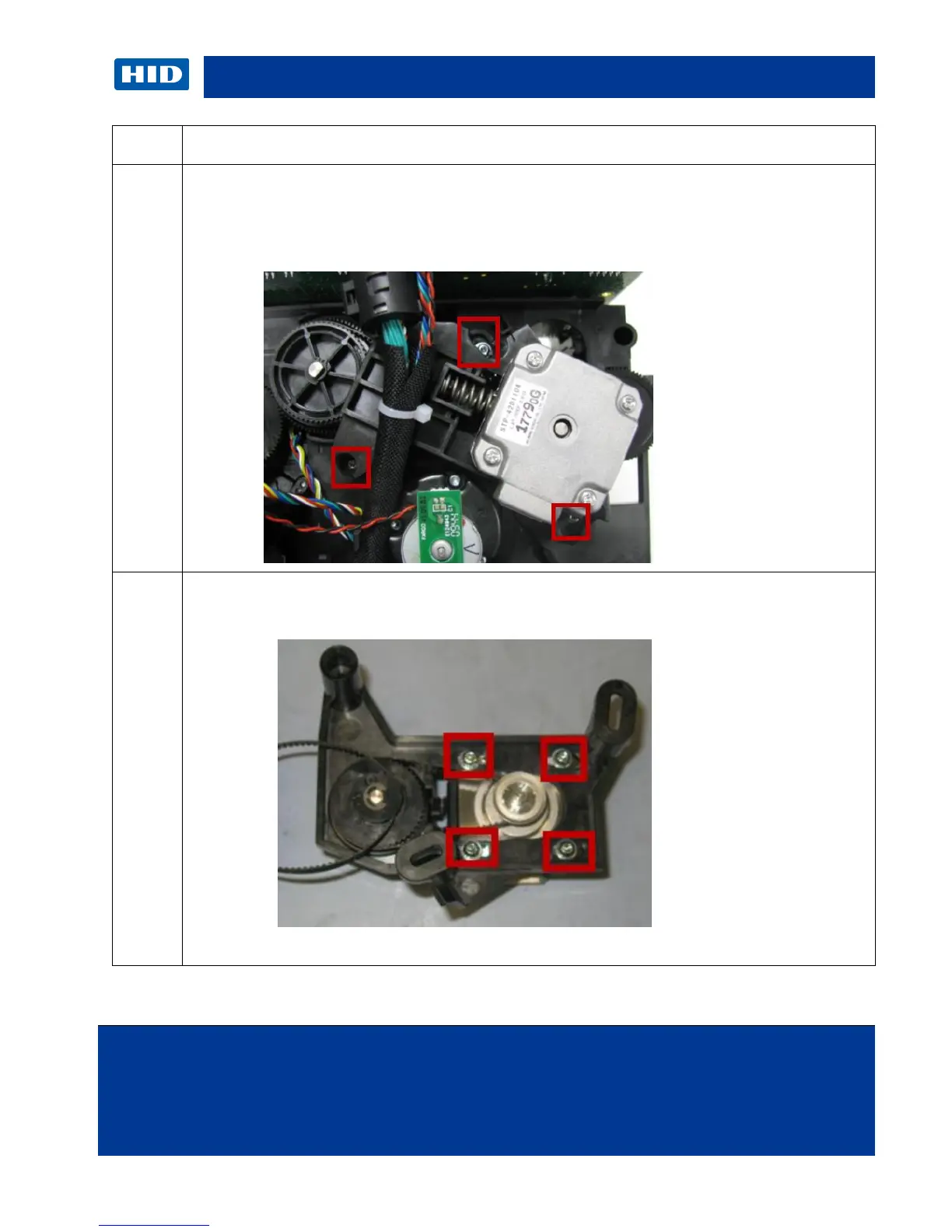

Step
Procedure
4
Remove the 3 screws that hold the Motor/Mount to the printer frame. ( Make note of
where the 2 screw/washers go and the one machine screw. Remove the printhead cable
for more clearance)
The motor is attached to a plastic mounting frame.
5
Remove the 4 screws that hold the stepper motor to the mount frame.
One belt (F000424) will come off of the platen roller pulley/gear (D900429- not shown).
(Caution: Spring may pop out. Safety glasses required)
