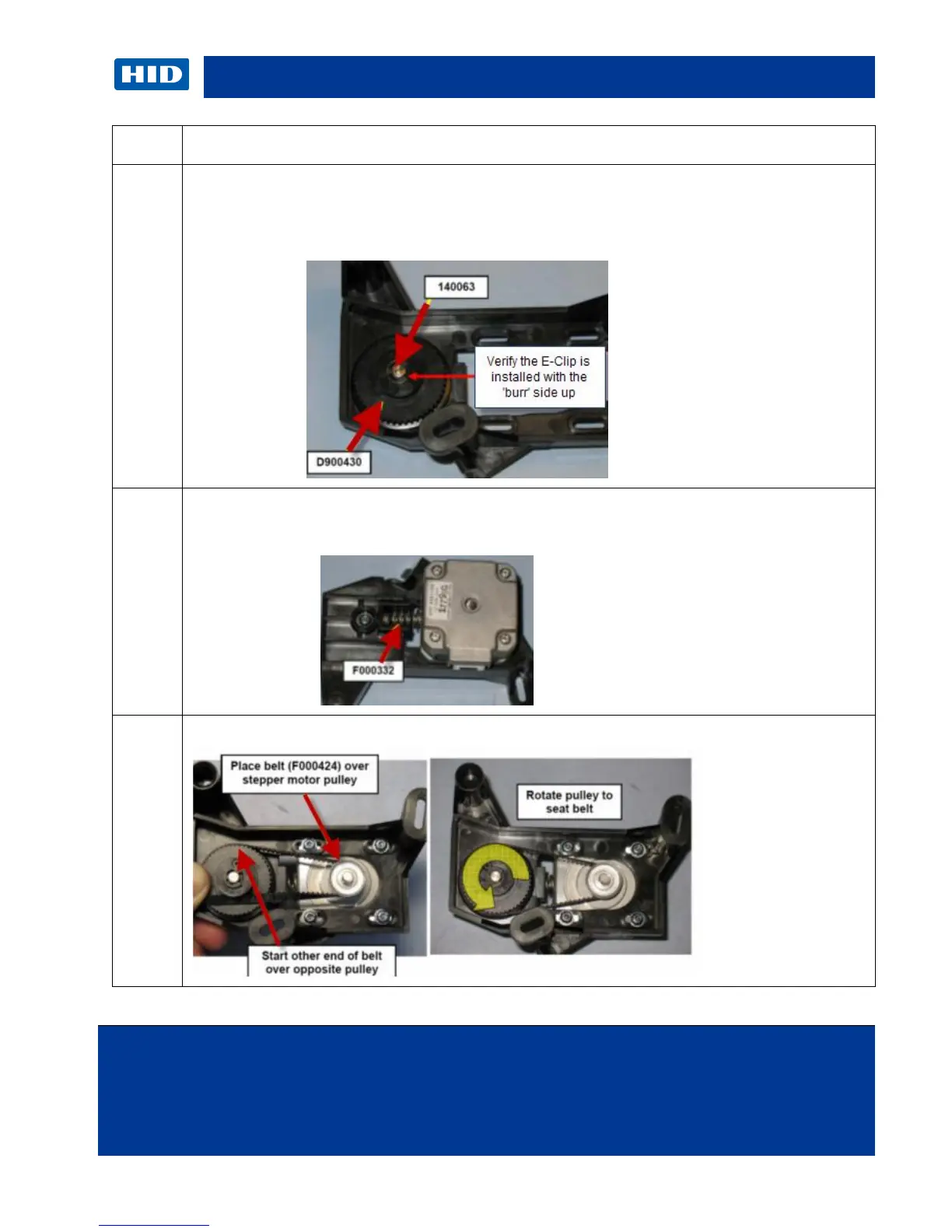

Step
Procedure
6
If replacing the Pulley D900430 remove the E CLIP (140063).
Replace with new Pulley.
Re- install the E-clip.
7
Replace the new Motor to the mount frame.
Make sure Spring (F000332) gets put back into proper place
8
Install the belt (F000424)
