Step
Procedure
6

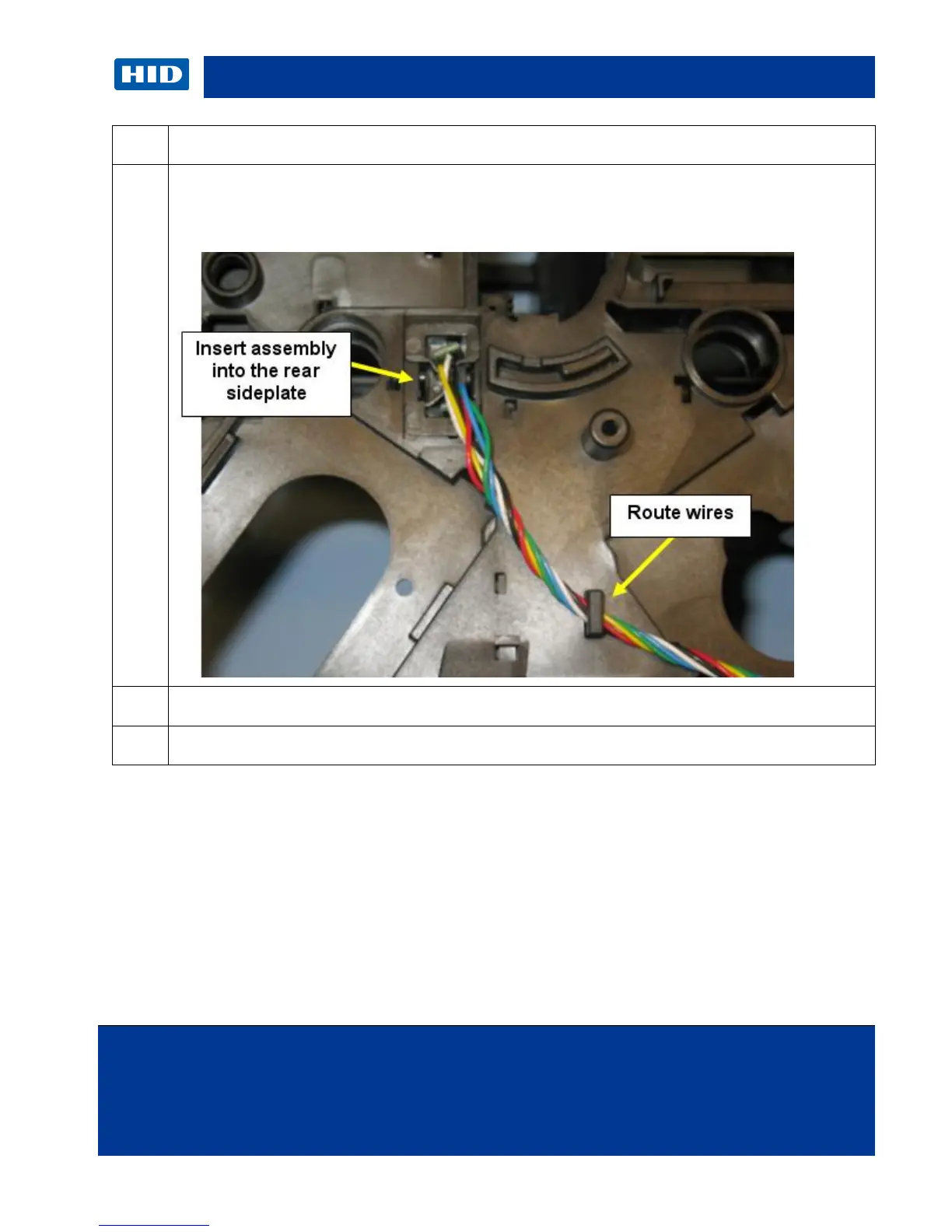

Replace with the new sensor. Push the sensor back in using the tabs to snap the sensor
in place. This is done from the rear sideplate of the printer near the gears.
Note: The wire routing to the frame.
7
Reverse assembly to reinstall parts. Verify wave washer is in place.
8
Procedure is complete

Fargo C50 Specifications

General

Print Technology	Dye-Sublimation / Resin Thermal Transfer
Resolution	300 dpi
Connectivity	USB 2.0
Print Speed	24 seconds per card (YMCKO)
Card Capacity	30 card output hopper
Card Size	CR-80 (3.375" x 2.125")
Dimensions	13.7" W
Weight	7.5 lbs (3.4 kg)
Operating System Compatibility	Windows 7, 8, 10
