Step
Procedure
14
VERY IMPORTANT STEP

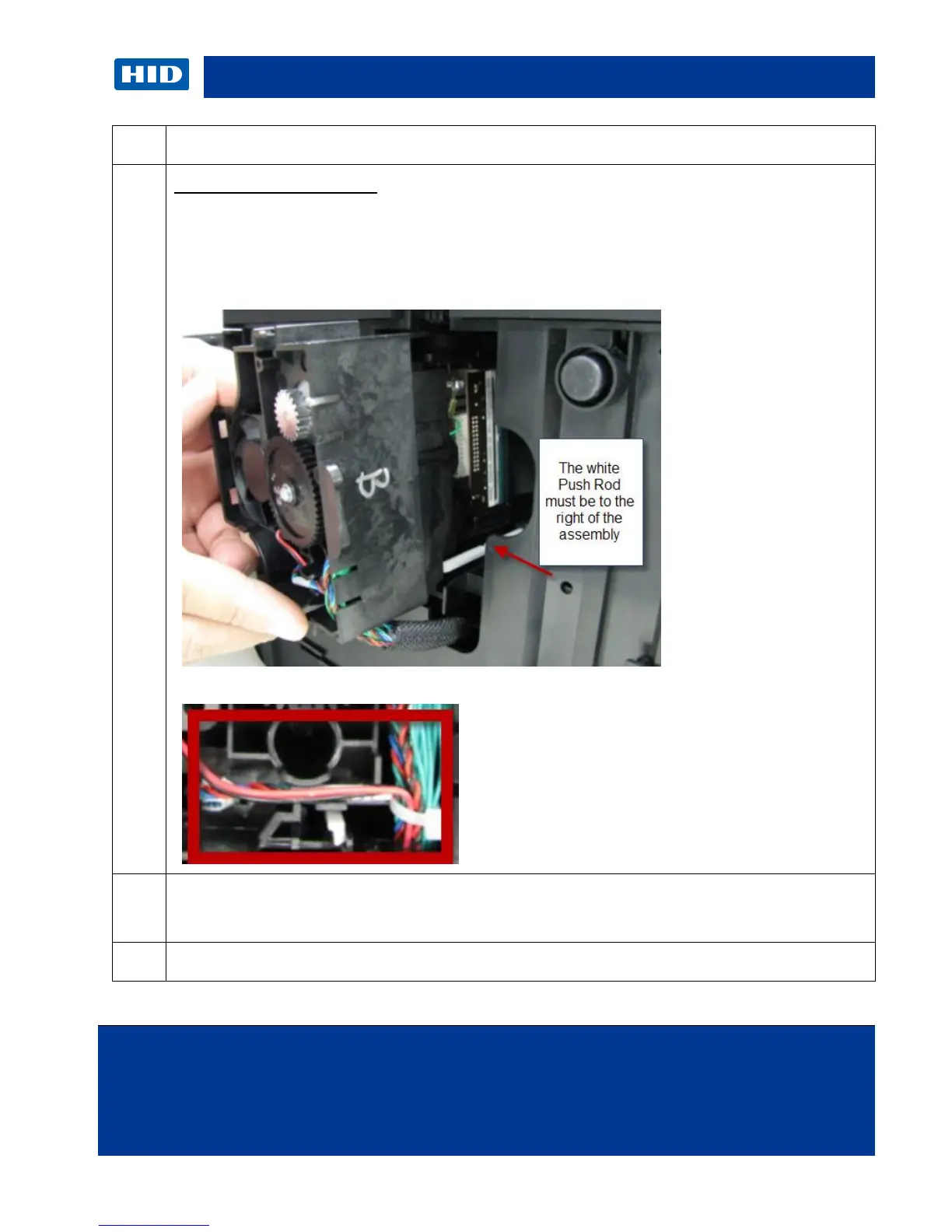

Reinstall the printhead mount assembly into the printer.
Line up the Printhead assembly.
IMPORTANT NOTE: Verify the white Push Rod is to the right of the assembly before
reinserting.
Verify the push-rod is in the correct position. It will rest to the right side of the tab.
15
CAREFULLY re-insert the completed printhead assembly.
Do not scratch the printhead surface.
16
Replace the Headlift cover by snapping back into place.
