DTC1000/DTC4000
Card Printer/Encoder User Guid
e (L001398, Revision 1.2)
78

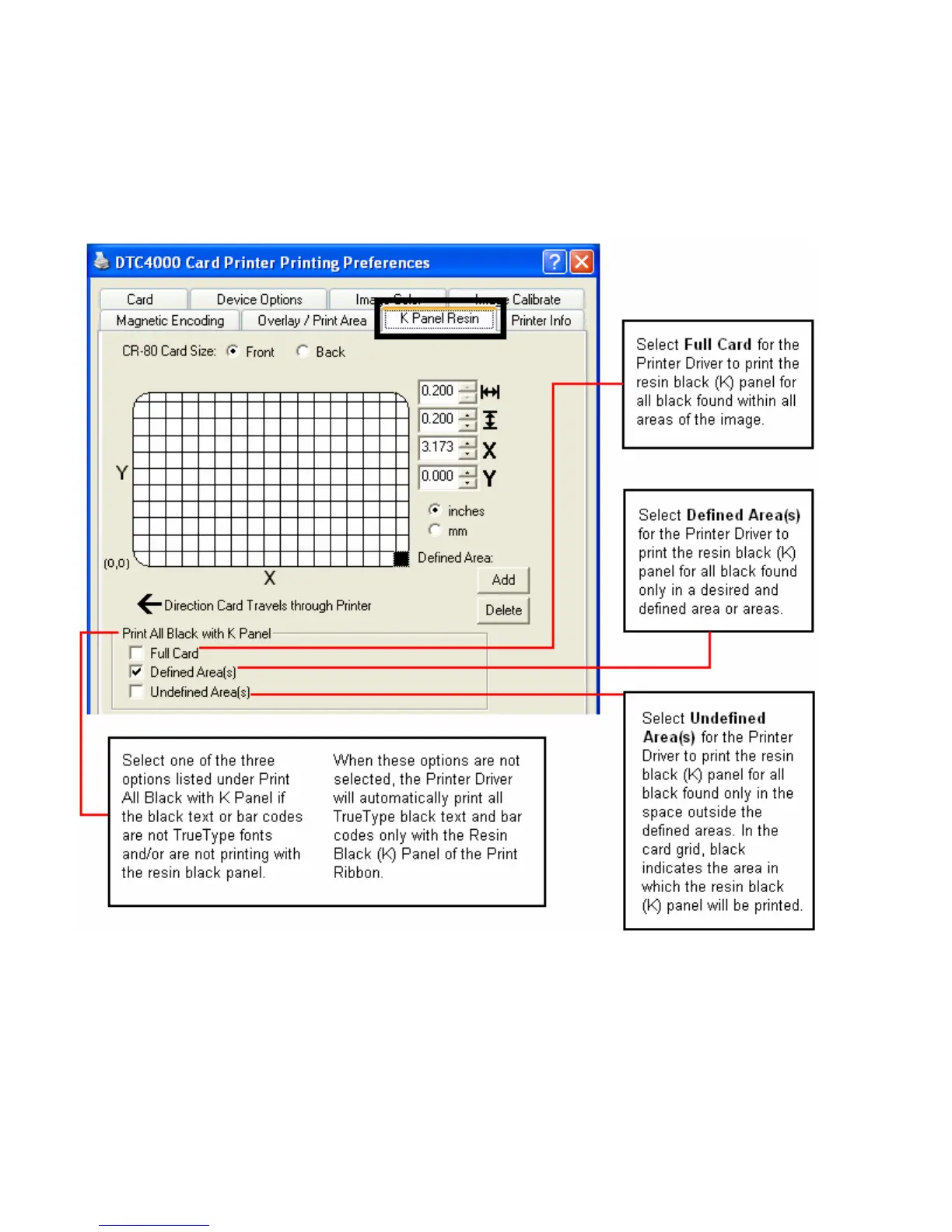

Using the K Panel Resin tab
Use this tab to control where the resin black (K) Panel of a f
ull-color Ribbon is printed. Refer to
Using
the Defined Area Option
for a specific procedure that relates to this tab.
77
79
Table of Contents
DTC1000/DTC4000 User Guide
1
Table of Contents
2
FAX: (952) 946-8492 Www.hidglobal.com DTC1000/DTC4000 User Guide
1
Section 1: Specifications
7
Regulatory Compliances
7
Agency Listings
8
United States
8
Canada
8
Environmental Protection (China-Rohs)
9
Traditional Chinese RF Emissions and Safety Statements
9
Simplified Chinese
10
Safety Messages (Review Carefully)
11
Technical Specifications
12
Functional Specifications
16
Printer Components: Print Ribbons
16
Ribbon Types/Count Table
17
Printer Components: Blank Cards
18
Section 2: Setup and Installation Procedures
19
Choosing a Good Location
19
About Moisture Condensation
19
Unpacking and Inspection
19
Installing the Print Ribbon Cartridge (DTC1000 and DTC4000)
20
Installing the Ribbon
21
Installing Blank Cards into the Card Hopper (DTC1000 and DTC4000)
23
Setting the Card Size for CR79 and CR80
25
Connecting the Printer Power
29
Section 3: Print Driver Installation
30
Driver Installation Instructions
31
Swift ID Installation Instructions
33
Installing Swift ID
35
Printer Installed on Network
36
Printer Connected Via USB Connection
38
Option No. 1
38
Option No. 2
38
Uninstalling Swift ID
39
Additional Swift ID Rules
39
Section 4: Printer Preferences Tab Functions
40
Using the Card Tab
41
Using the Toolbox Options
43
Using the Configuration Tab
44
Using the Event Monitoring Group Box
44
Using the Calibrate Ribbon Tab
45
Using the Clean Printer Tab
46
Using the Advanced Settings Tab
49
Using the Device Options Tab
58
Using the Image Color Tab
62
Using the Image Calibrate Tab
65
Using the Magnetic Encoding Tab
66
Using the Magnetic Encoding Tab - ISO Standards
67
Using the Magnetic Encoding Tab - Custom Encoding or Raw Binary Encoding Mode
69
Reviewing the ISO Track Locations
70
Reviewing the Sample String
71
Sending the Track Information
72
Reviewing the ASCII Code and Character Table
73
Using the Overlay / Print Area Tab
75
Using the K Panel Resin Tab
78
Using the Printer Info Tab
81
Section 5: Selecting the Fluorescent Panel Ribbon Type (DTC4000 Only)
82
Creating a Custom Fluorescent Image (Using the YMCFKO Ribbon)
82
Configuring Fluorescent Data (F-Panel for YMCFKO Ribbon) Using the Application
84
Section 6: System Overview- Troubleshooting
88
Reviewing the DTC1000/DTC4000 Sequence of Operations
88
Section 7: Troubleshooting
90
Printer Error Button and Display Message Table
90
Using the Error Message Table
92
Troubleshooting with the Error Message Table
93
Printer Specific Tools (DTC1000/DTC4000)
101
Additional Printer Specific Tools (DTC4000)
103
Section 8: Cleaning
104
Safety Messages (Review Carefully)
104
DTC1000 and DTC4000 Card Printer/Encoders Cleaning Kit
105
Supplies (Included with the Cleaning Kit)
105
Printhead Cleaning
106
Cleaning the Platen and the Card Feed Rollers
107
Cleaning the Printer's Interior
111
Cleaning the Printer's Exterior
111
Section 9: Firmware Upgrades
111
Upgrade the Printer Firmware
111
Section 10: HID Global Technical Support
115
Reading the Serial Numbers on a Fargo Printer
116
Appendix A
117
Appendix A
117
Using the Defined Area Option
117
Configuring Fluorescent Data (F-Panel for YMCFKO Ribbon) Using the Workbench
118
