SYMBOL DESCRIPTION
ALIM FX800 GENERAL FEEDING
ALIM FX804 FEEDING CONTROL UNITY EXTENSIONS STABILIZERS
ALIM FX801 FEEDING USER PANEL ON BASE
FARI ACTIVATION WORK LIGHTS
EV1 ELECTROVALVE FOR CRANE BLOCK
EV2 ELECTROVALVE DOUBLE LIMITING DEVICE
EV3 XP ELECTROVALVE
EV4 ELECTROVALVE FOR PRESSURE REDUCTION OF
REGENERATIVE EXTENSION EXIT
EV5 REGENERATIVE ELECTROVALVE
FX800 CENTRAL PROCESSING UNITY
FX801/A/G USER PANEL
IP1/2/3 PROXIMITY MICROSWITCH FOR ROTATION CONTROL
LCV WINCH LOAD LIMITING DEVICE
FC
RUN END WINCH
OPTION OPTIONS
PLE CONTACT FOR PLATFORM
RC RECEIVER OF THE RADIO
MAN SELECTOR REMOTE/MANUAL FOR CRANE USE WITH
RADIO OR MANUAL
FX002/1/2 WINCH LOAD LIMITING DEVICE
S3 CONNECTION SENSOR JIB CONNECTING DEVICE
TEMP1+SC SENSOR ACTIVATION WARMTH EXCHANGING DEVICE 1
TEMP2+SC SENSOR ACTIVATION WARMTH EXCHANGING DEVICE 2
TI1 SENSOR OF CORNER ON SECUNDARY ARM
TI2 SENSOR OF CORNER ON HYDRAULIC JIBS
TP0 PRESSURE TRANSDUCER FOR DISTRIBUTOR
TP1 PRESSURE TRANSDUCER FOR INNER RAM
TP2
PRESSURE TRANSDUCER FOR SECONDARY RAM
TP3
PRESSURE TRANSDUCER FOR THE JIB RAM
DF
FLOW DEVIATOR (FOR VERSIONS FROM
GROUND AND FROM SEAT)
FX804
CONTROL UNITY EXTENSIONS/STABILIZERS
EVE1…EVE4 ELECTROVALVE CONTROL EXTENSION 1… EXTENSION 4
EVS1…EVS4 ELECTROVALVE CONTROL STABILIZER 1… STABILIZER 4
EVR / EVU ELECTROVALVE FOR CONTROL EXIT/RETURN
EXTENSIONS/STABILIZERS
EVDEV ELECTROVALVE FOR CONTROL ELECTRICIAL
DEVIATING DEVICE CRANE/STABILIZERS
G.R.E. JOINED ELECTRICAL ROTATING
DCS DECLASSEMENT
IE2016 CABLE FOR CONNECTION FORM CANBUS
IE2017
CABLE FOR CONNECTION FORM CANBUS
IE2019 CABLE FOR FORM CANBUS TO RADIO
IE2021 CONNECTOR IN "Y"
EM URGENCE
LUCI LUMINOUS TOWER
CN1 CONNECTOR 1 ON FX800
CN2 CONNECTOR 2 ON FX800
CN3 CONNECTOR 3 ON FX800
CN4 CONNECTOR 4 ON FX804
CN5 CONNECTOR 5 ON FX804
5
ELECTRIC SCHEMATICS
GR5 - EVOLUTION
5 ELECTRIC SCHEMATICS

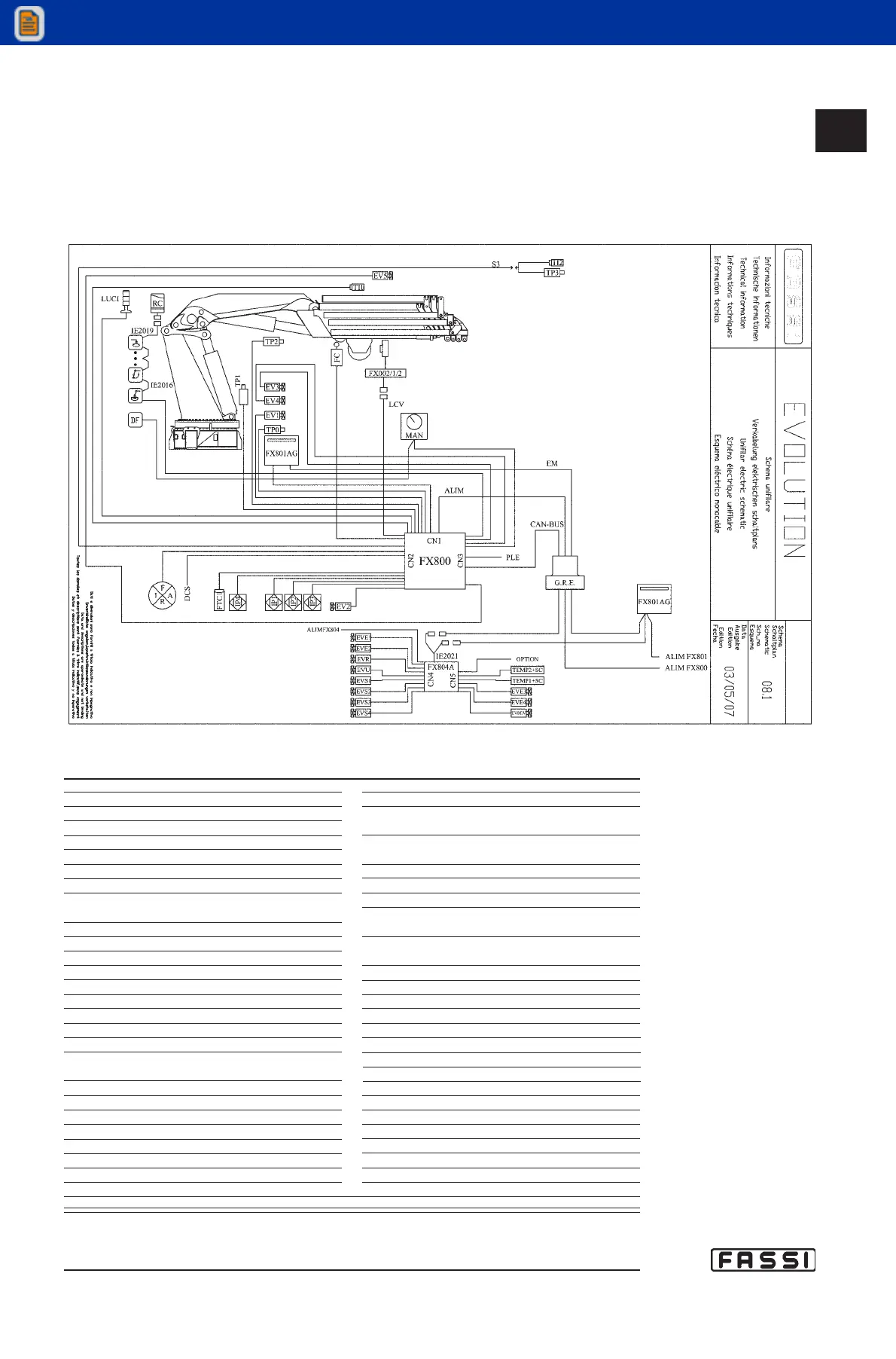

Electric schematic for crane
