10. NOMENCLATURE OF THE SAFETY AND
PROTECTION DEVICES

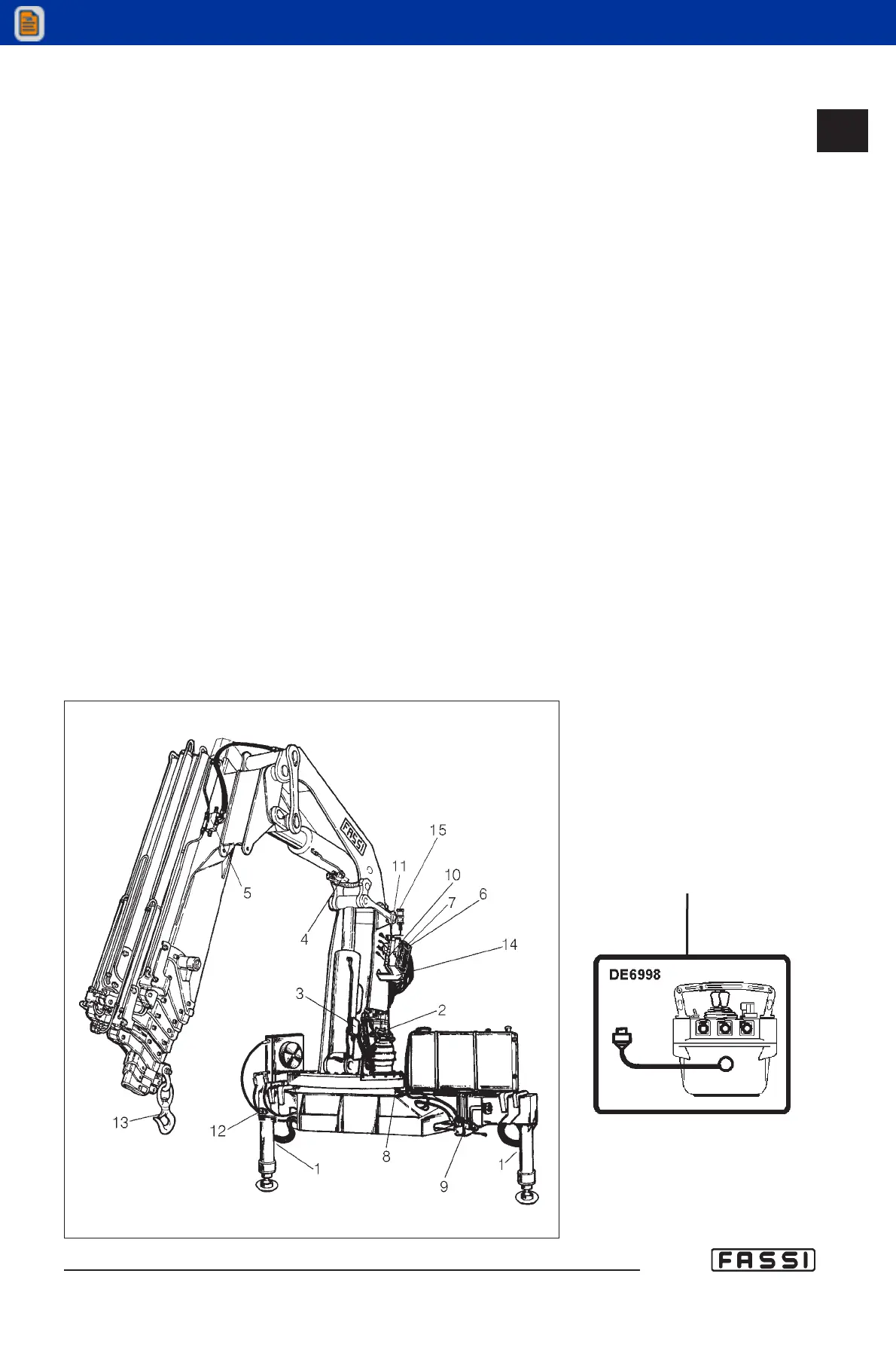

10.1 Controls for crane and outriggers through push-
button panel of the radio remote control (fig. 1)
Pos Description
1. Check valves for outrigger rams
2. Check valves for rotation control (flow regulators)
3. Check valve for inner ram
4. Check valve for outer ram
5. Check valve for booms extension rams
6. Lifting moment limiting device assembly
7. Control panel
8. Rotation limiting device
9. Main pressure valve (outriggers)
10. Main pressure valve (crane)
11. Auxiliary valves (crane)
12. Safety device for outrigger supports
13. Hook safety device
14. Exclusion tap lever
15. Visual indicator yellow/red light
Before crane use check that safety and protection devices are fitted and active.
Under no circumstances interfere with the safety and protection devices.
Interference with the check valves and removal of the lead seal remove the
Manufacturer and invalidate the warranty.
Use the ladder for the access to the top seat.
fig. 1
7
NOMENCLATURE OF
THE SAFETY AND
PROTECTION DEVICES
GR5_700B»1400A-
EVOLUTION
10
