11
SUPPLEMENTARY BEAMS
GR5_1100XP_1500AXP
- EVOLUTION
11 SUPPLEMENTARY BEAMS
11.1 Generality
Supplementary beams are used in conjunction with the crane outriggers to ensu-
re the vehicle stability during load handling.
Code
outrigger ram outrigger extension Weight
stroke mm interaxis mm type kg
1400801HE 410
8500
Hydraulic-“H” variable
1600
1400802HE 353
10000
Hydraulic-“H” variabie
2400

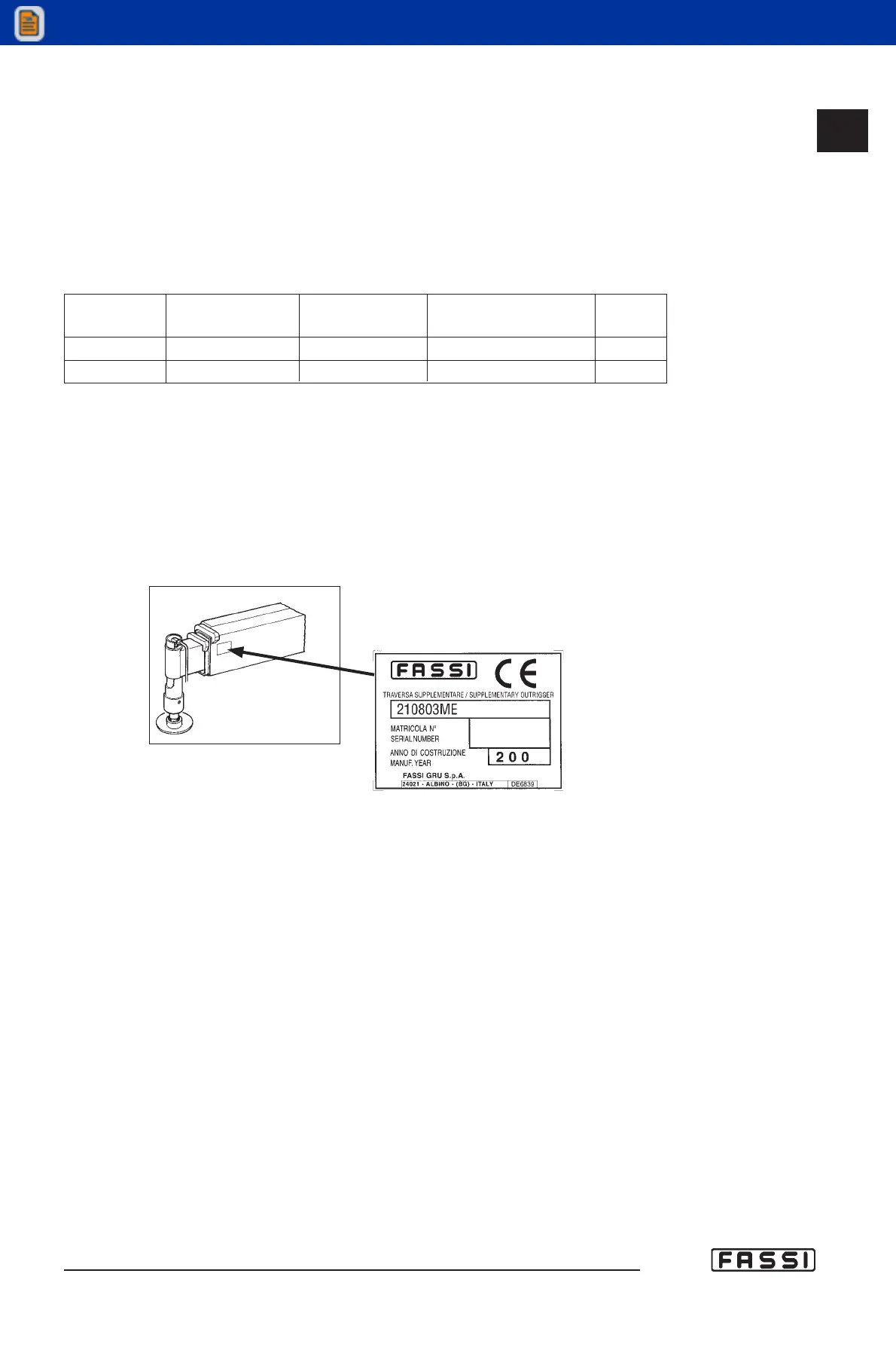

11.2 Identification of the supplementary beams
Identification data of the supplementary beam is punched on the plate DE6839 (fig.
1).
fig. 1
DE6839
