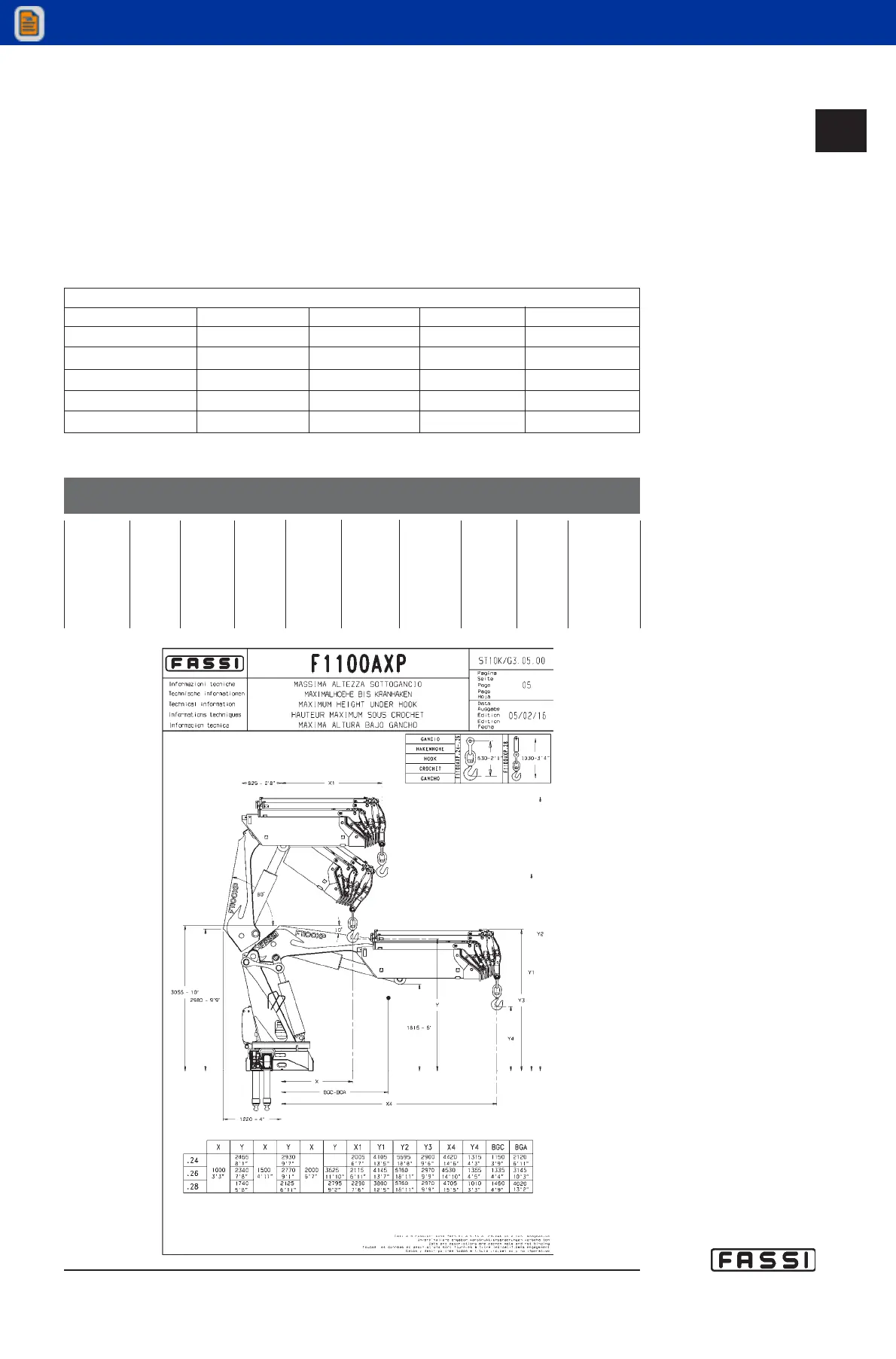

2 CLASSIFICATION OF THE CRANE MODEL
2.1 Generality
The design of this crane has been carried out in respect of fatigue test classification H1B3 of the
EN12999 norm. The crane can operate, intermittently, with lifting devices other than the hook. The
dimensions and the capacity of the implements must be proportioned with crane performances.
2.2 Hydraulic jibs
Hydraulic jibs
Extension type Weight=kg Manual Weight=kg Manual Weight=kg Manual Weight=kg Manual Weight=kg
L414 850 ------------------ PL41 31 QL41 21 ------------------
L425 1050 QL42 55 RL42 36 SL42 25 ------------------
L426 1200 ------------------ RL42 36 SL42 25 TL42 15
L516 1400 ------------------ RL51 36 SL51 25 TL51 15
L616 1420 ------------------ RL61 36 SL61 25 TL61 16
2.3 Technical data
2
CLASSIFICATION OF
THE CRANE MODEL
F 1000A/1100AXP.28
F 1000A/1100AXP.28
Lifting Standard Hydraulic Rotation Rotation Working Pump Oil tank Crane Max. working
capacity reach extension arc torque pressure capacity capacity weight pressure
on the outrigger
(Φ 400)
78,0 / 85,8 tm 20,00 m 15,25 m 360° 10,20 tm 31,0 / 33,5 90+110 265 l 9600 kg 21,7 / 23,0
764,92 kNm /
continuous 100 kNm MPa l/min daN\cm
2
841,41 kNm
