9
CRANE
NOMENCLATURE
GR5_700B»1400A-
EVOLUTION
9 CRANE NOMENCLATURE

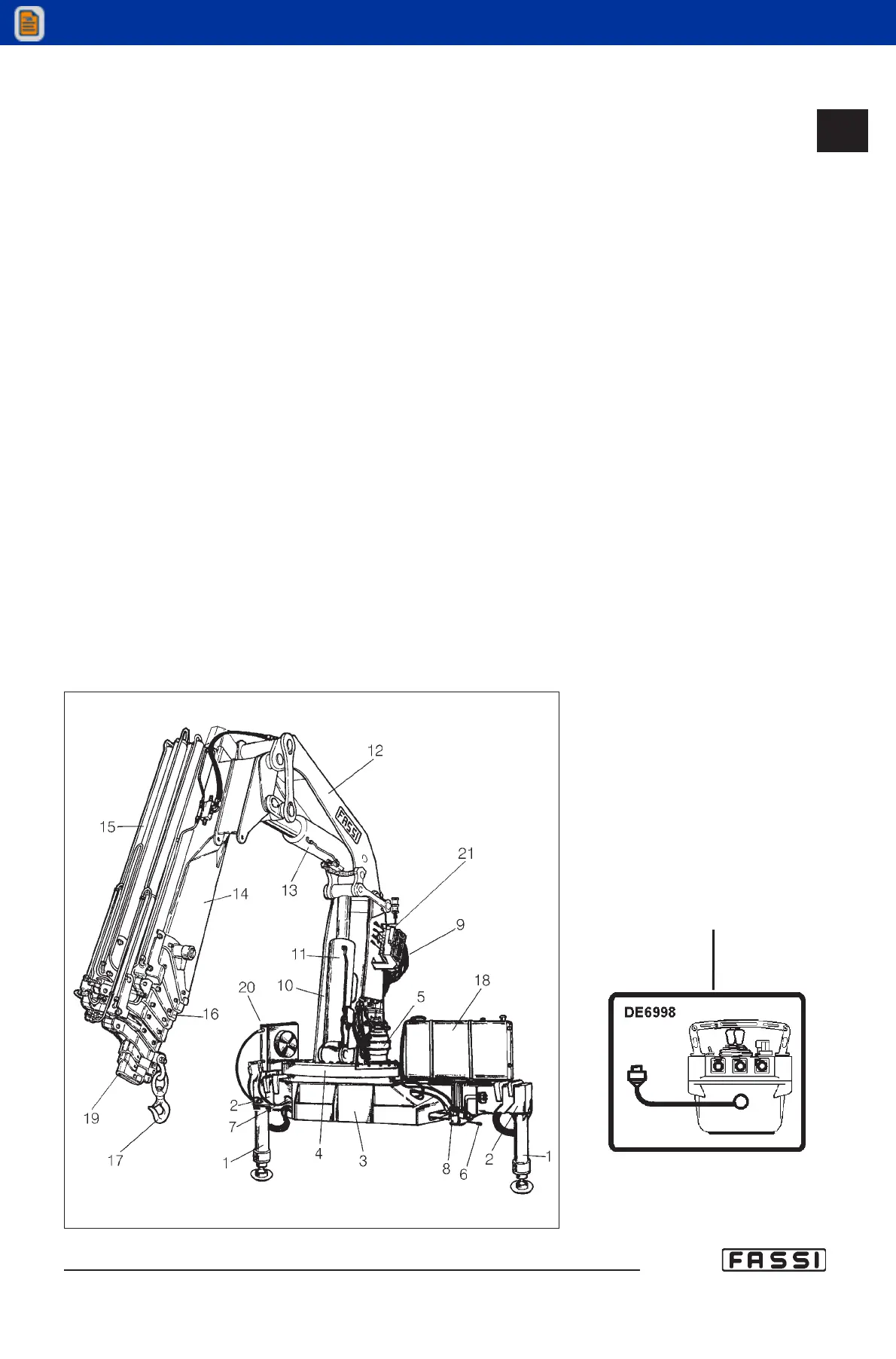

9.1 Controls for crane and outriggers through push-
button panel of the radio remote control (fig. 1)
Pos Description
1. Outrigger rams
2. Outrigger supports
3. Base
4. Slew ring
5. Rotation motoreducer
6. Deviator crane - outriggers
7. Dual control for deviator crane - outriggers
8. Integrated group for outrigger controls
9. Electric hydraulic distributor for crane
10. Column
11. Inner ram
12. Inner boom
13. Outer ram
14. Outer boom
15. Booms extension rams
16. Extension boom sections
17. Lifting hook
18. Oil tank
19. Manual extensions (optional)
20. Heat exchanger
21. Receive radio remote control
22. Push-button panel (transmitting-console of the radio remote control)
fig. 1
22
