CAPACITY PLATES
F 1000A/1100AXP.28
3 CAPACITY PLATES
3.1 Generality
The represented plates refer to the nominal design capacities.
(!) WARNING (!)
If the capacities are downgraded or partially reduced (e.g. sector in front of vehi-
cle cab) capacity plates must be applied in line with the final test figures.
(!)
WARNING
(!)
Some cranes with more than 6 extensions have two hooks :
- the first hook ( ) has to be positioned on the hook connection of the sixth
hydraulic extension and it has to be used for the greatest loads, represented
on the plate with the black hook.
- the second hook ( ) has to be positioned on the hook connection of the last
hydraulic extension and it has to be used for the other loads, represented on
the plate with the white hook.

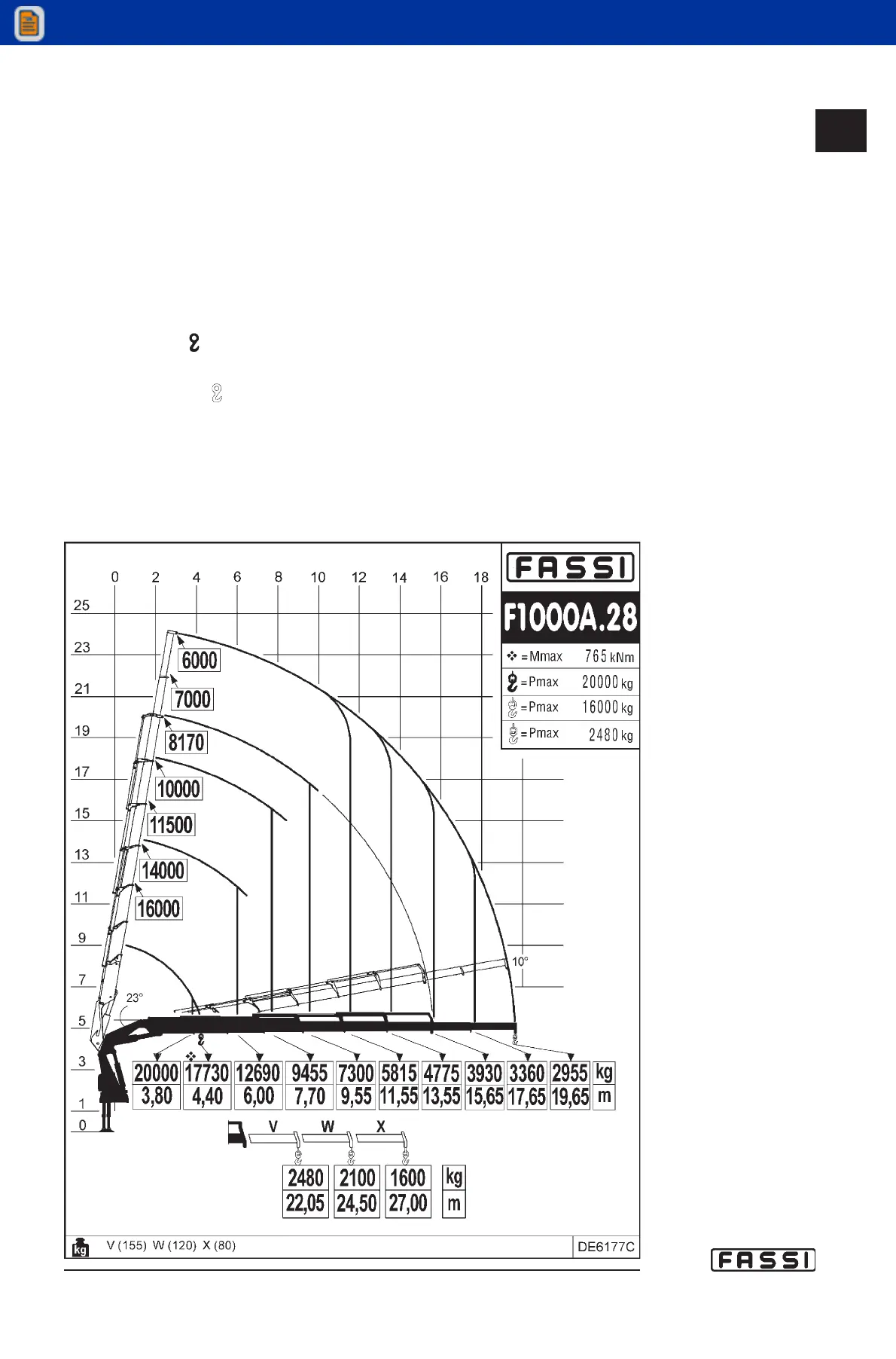

3.2 Capacity plates with lifting moment limiting device
