14. DIAGRAMS AND SCHEMATICS

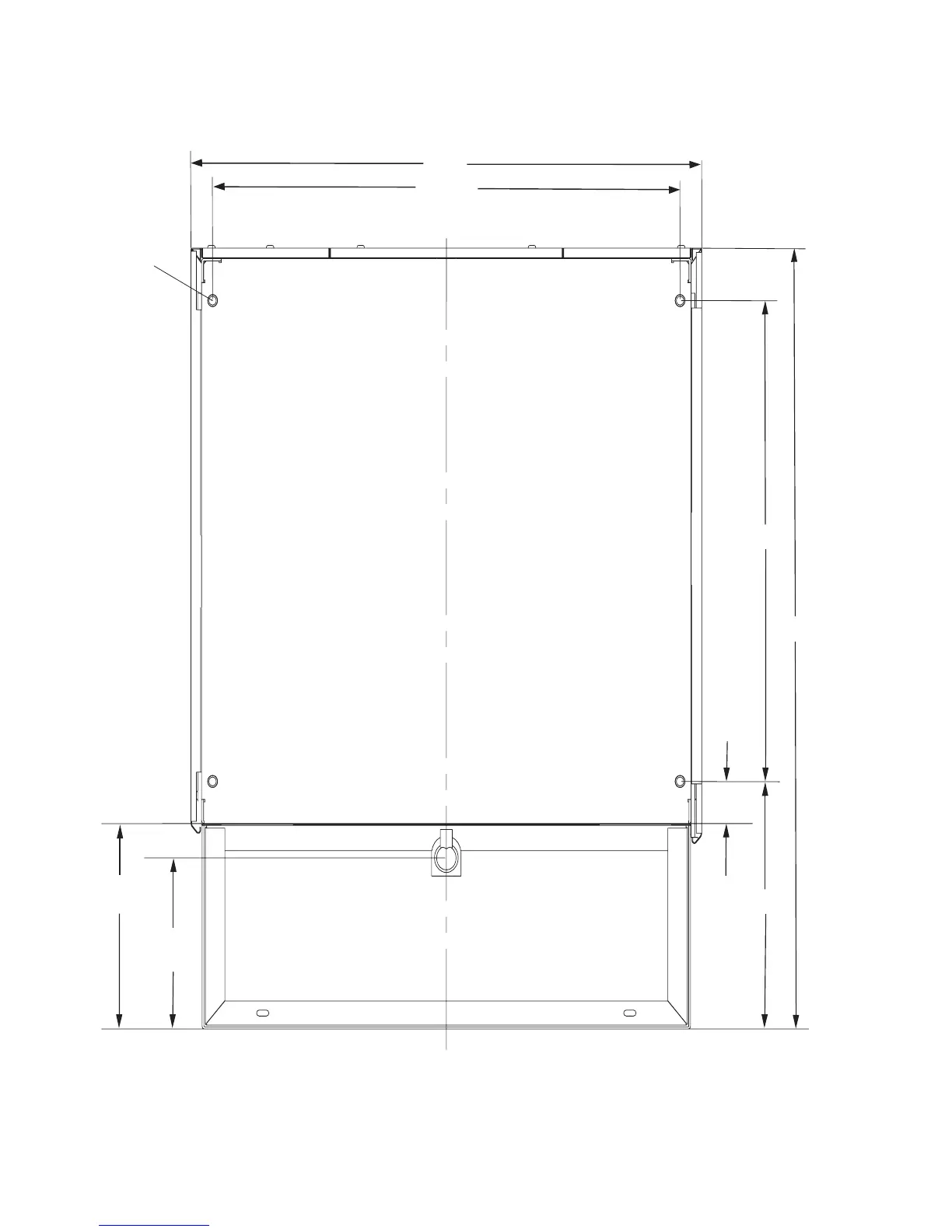

14.1 MOUNTING DIAGRAM - FBD 562
This Figure illustrates the locations of threaded mounting holes in the base of the FBD562 units.
17.0”
CENTER
LINE
4 x 1/2”
CLEARANCE
HOLE
14.875
1.75”
10.3”
FRONT
20.0”
32.4”
7.125”
DRAIN
8.500”
DRIPTRAY
EDITOR’S NOTE: NOT DRAWN TO SCALE
