14.2 MOUNTING DIAGRAM - FBD 563

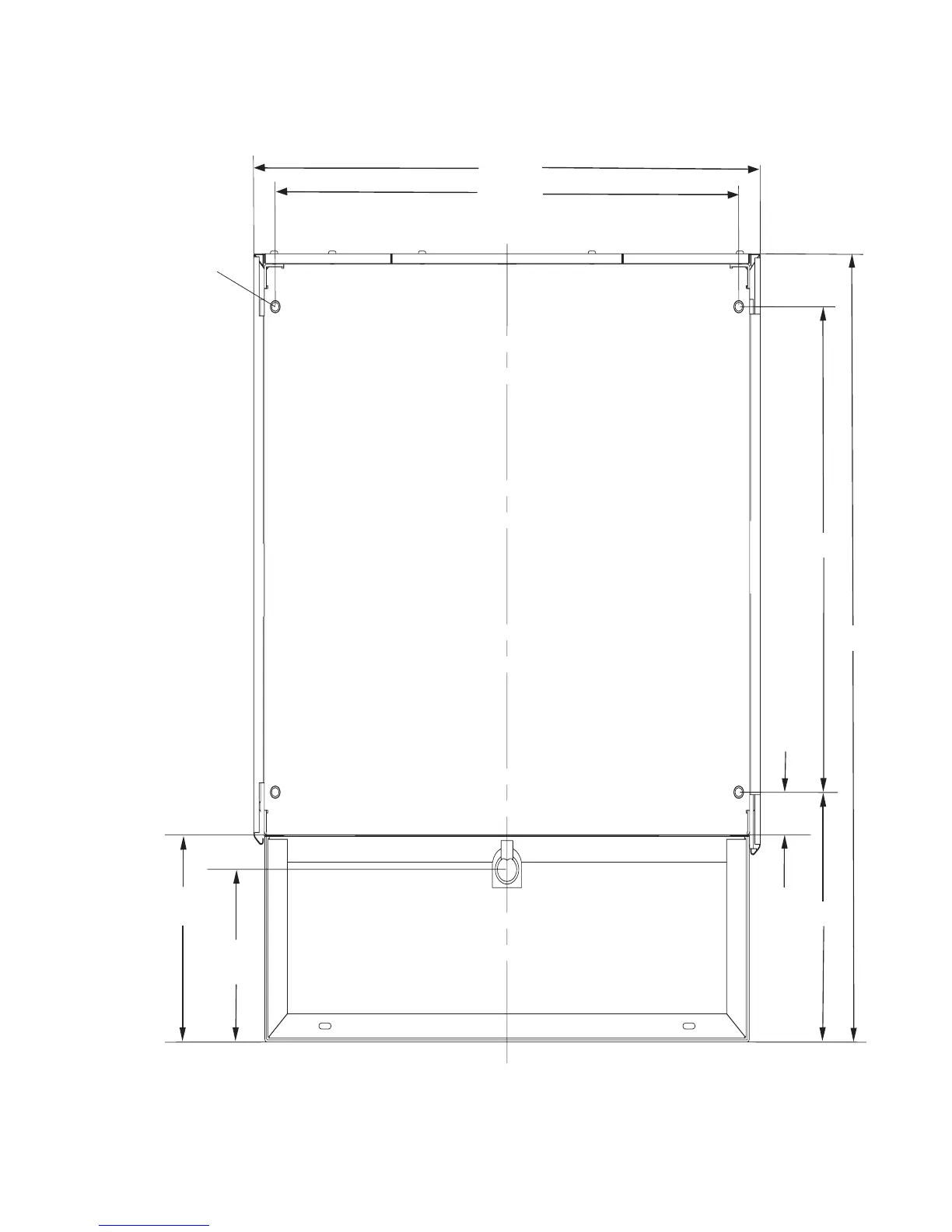

This Figure illustrates the locations of threaded mounting holes in the base of the FBD563 unit.
43
20.250”
CENTER
LINE
4 x 1/2”
CLEARANCE
HOLE
18.125”
1.75”
10.3”
FRONT
20.0”
32.4”
7.125”
DRAIN
8.500”
DRIPTRAY
EDITOR’S NOTE: NOT DRAWN TO SCALE
