For machines with additional rip capacity of 48" (1250mm), additional supports need
to be assembled (see next step).
For machines with 31" (800mm) capacity, once the supports are in place, with the
screws in location, the table can placed on top of the screws and brought into
alignment with the cast iron table, ideally using a straight edge as shown below. The
exact alignment details can be found in tolerancing information.

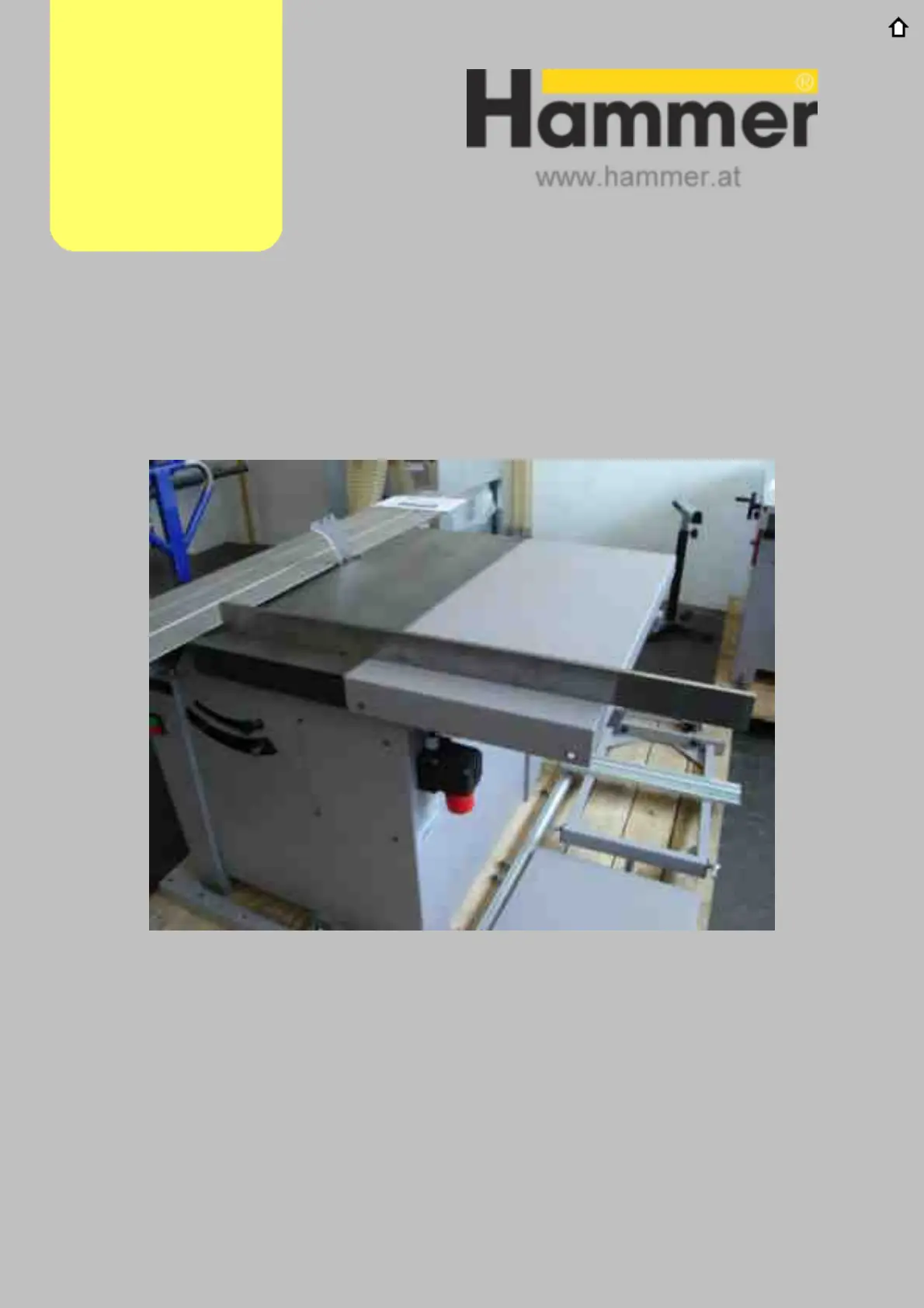

(picture showing full length 31"(800mm) Rip capacity)
Continued…
