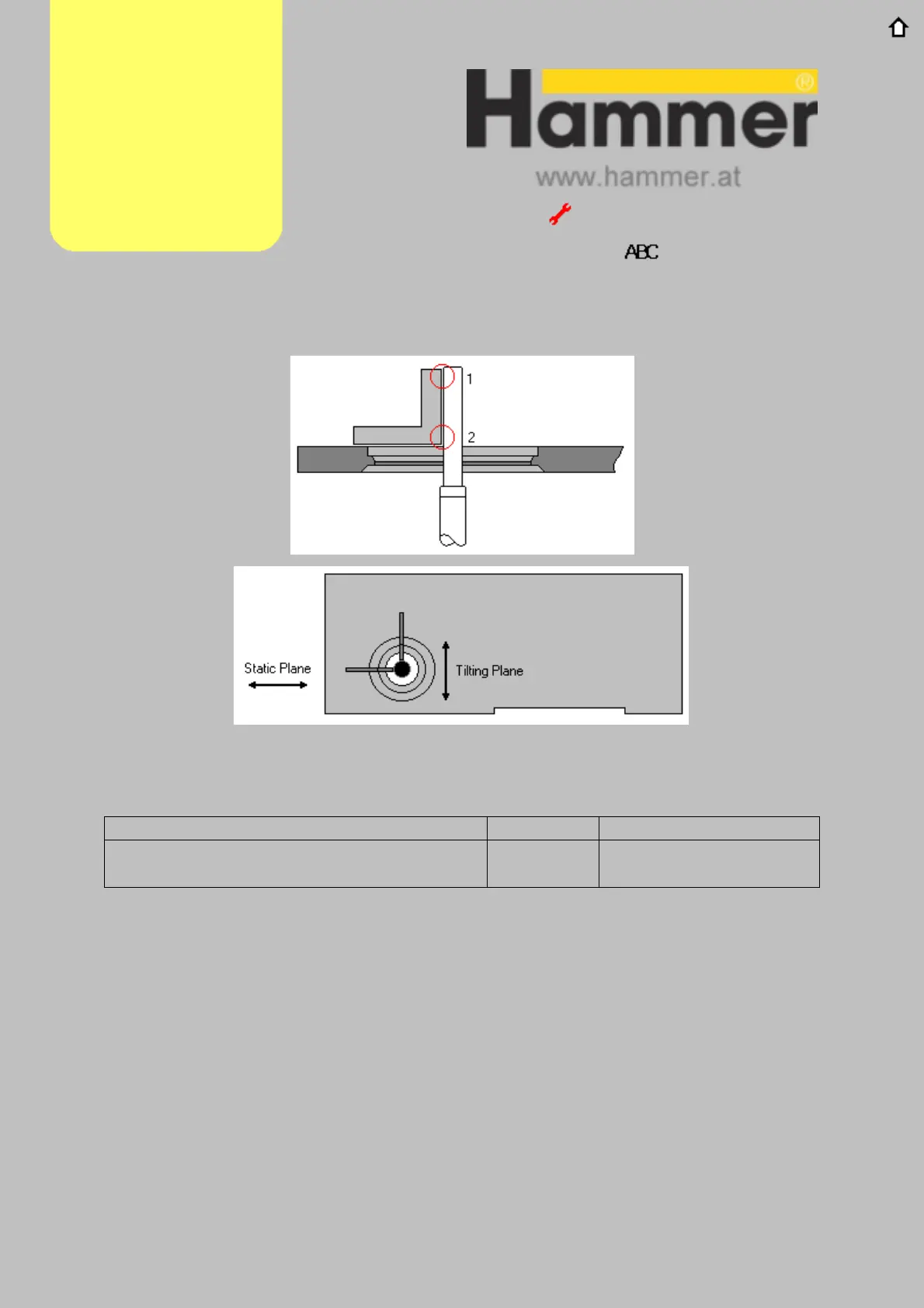

Using an engineers square and a feeler gauge, check the 90° alignment of the
spindle in the two planes indicated above.
Test Point Unit type Tolerance
Permissable gap at 1 or 2 Metric 0.0mm to 0.20mm
Imperial 0.000” to 0.008”
Alignments
Adju s t m e n t Lin k
SH02 Shaper Spindle Alignment at 90°
