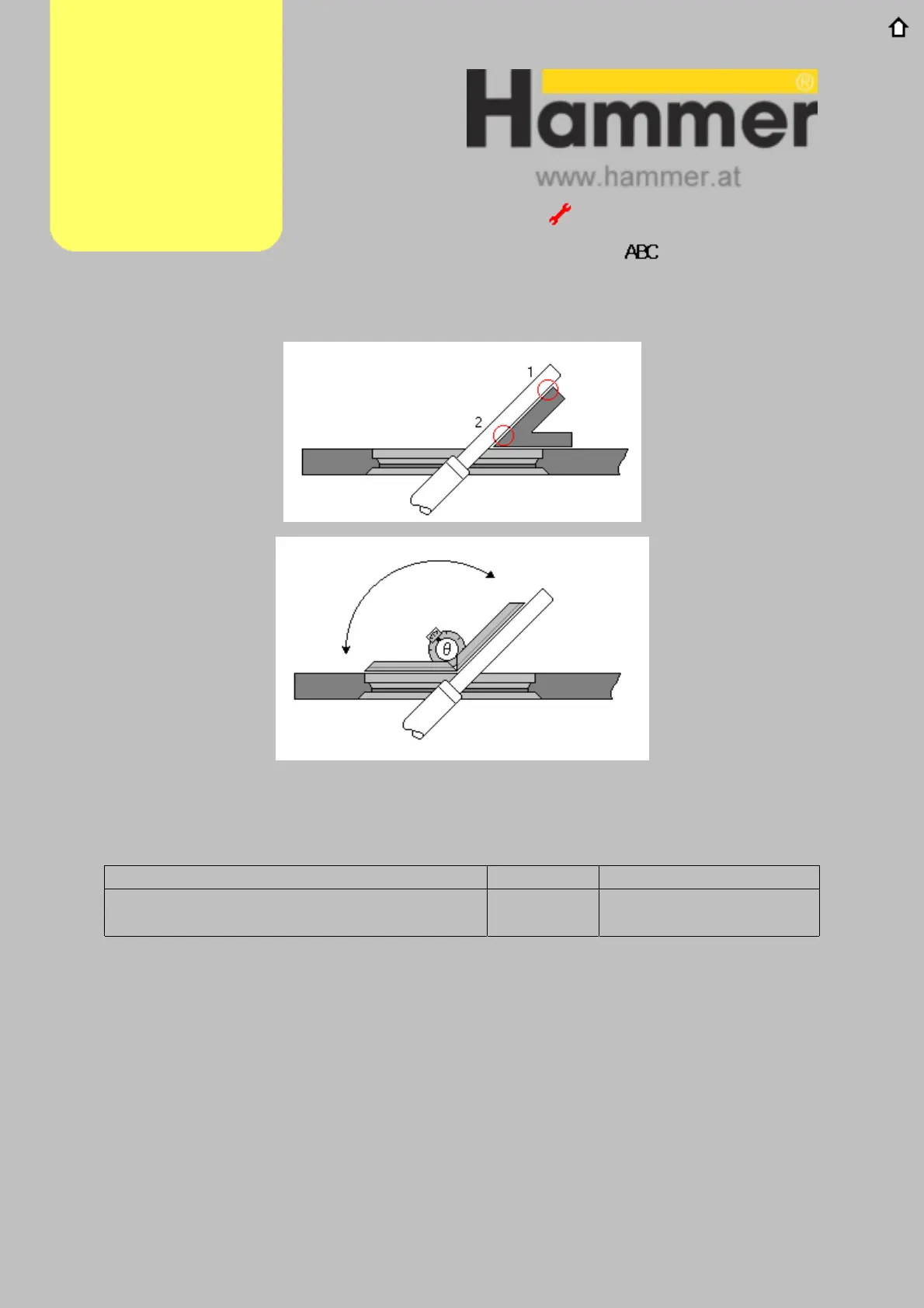

Using a 45° engineering angle (or an angle gauge set to 135°) and a feeler gauge,
check the 45° tilt position.
Test Point Unit type Tolerance
Permissable gap at 1 or 2 Metric 0.0mm to 0.20mm
Imperial 0.000” to 0.008”
Alignments
Adju s t m e n t Lin k
SH03 Shaper Spindle Alignment at 45°
