Sliding Table Assembly
¾17mm wrench and Cross-head Screwdriver
To assemble the sliding table to the machine chassis, you will ideally need someone
to help you lift the table out of the container and into situe on the edge of the chassis,
as shown in figure ST01.1. If no help is available, then the best help you can give
yourself is to support one end of the table as shown in Fig.ST01.1 whilst you guide
the table into place over the screwheads.

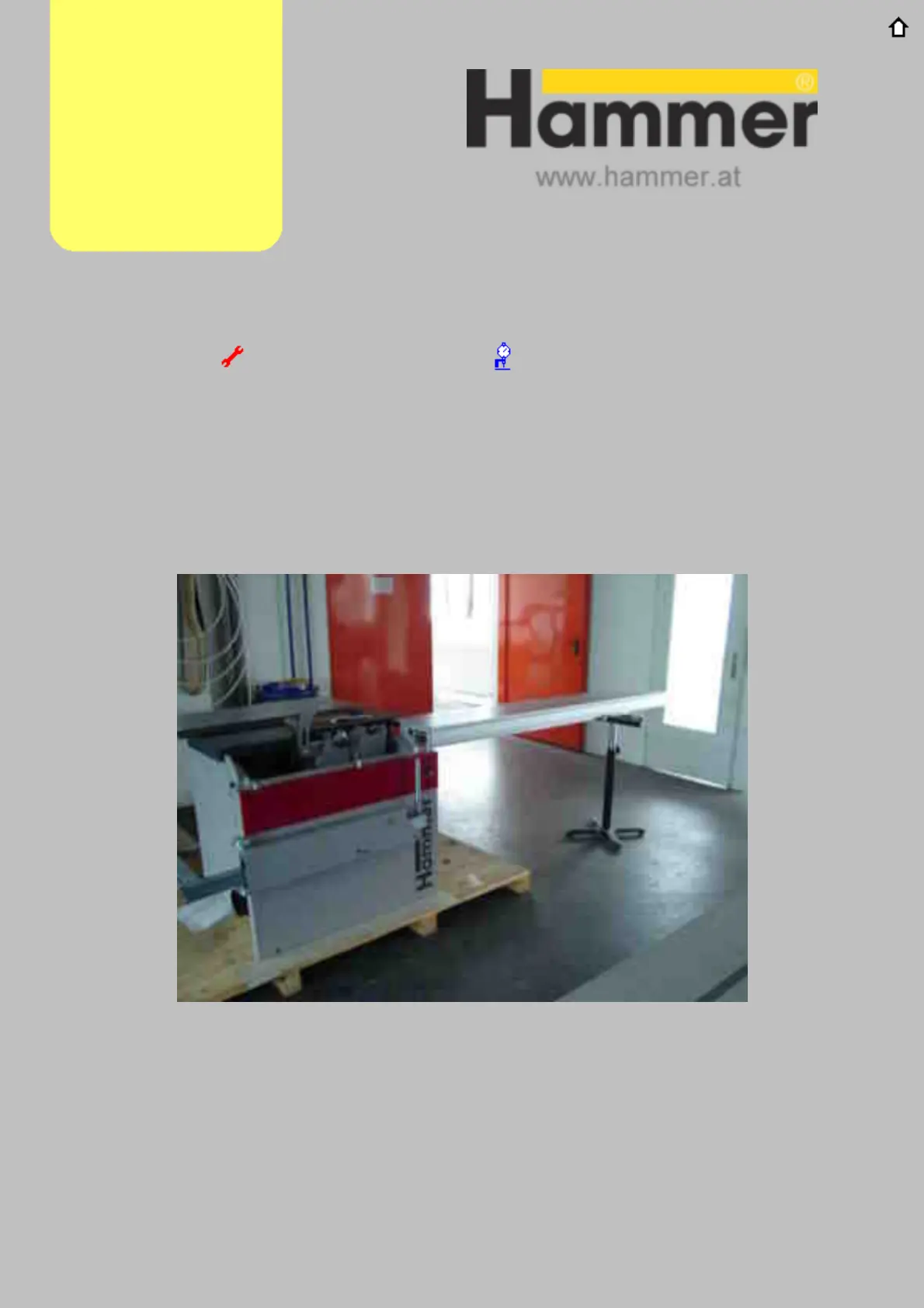

Figure ST01.1 Sliding table in place ready to be slotted over the securing screws
Continued…
