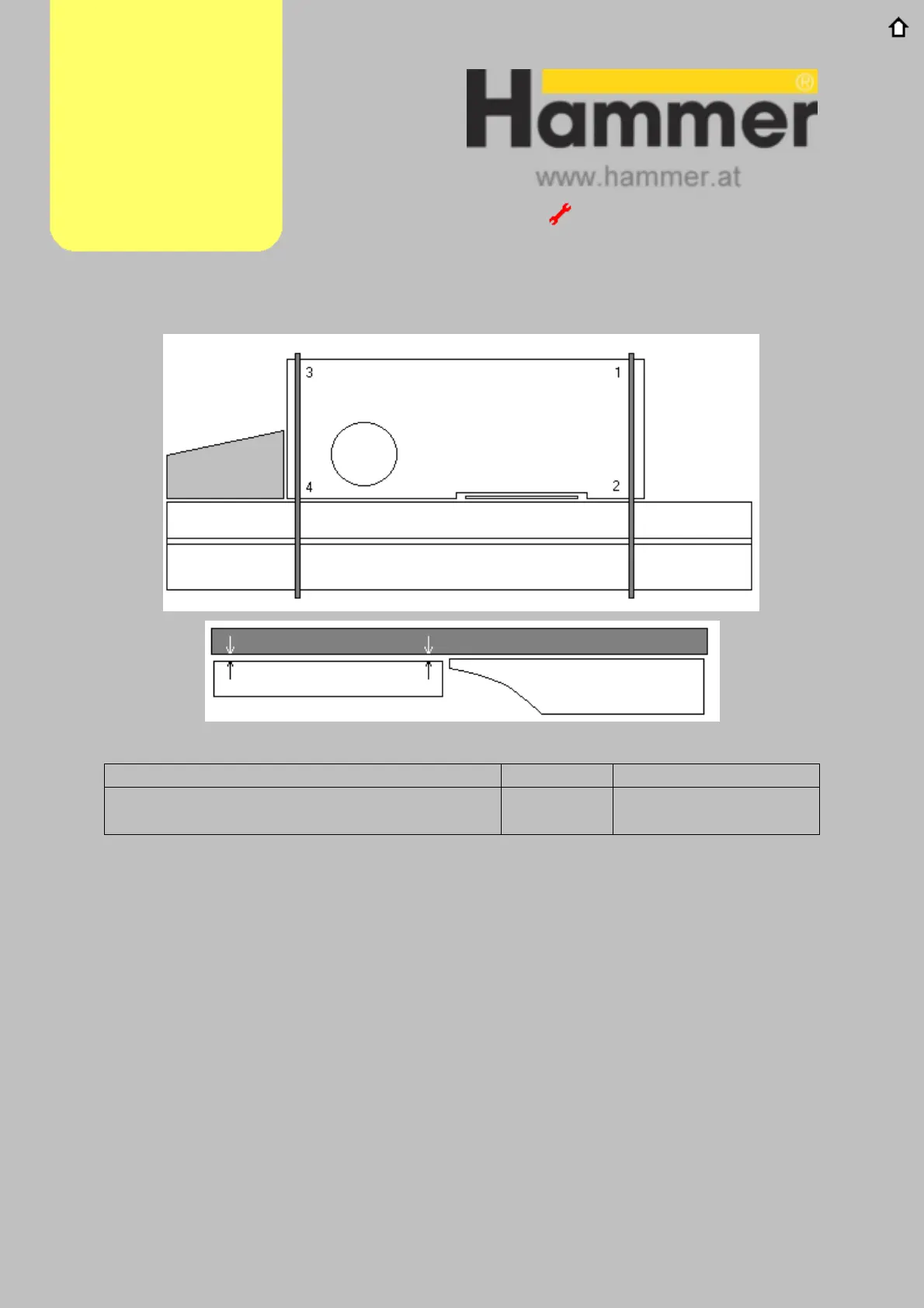

Check the gap at points 1, 2, 3 and 4 with a feeler guage.
Test Point Unit type Tolerance
Sliding table above the cast iron table Metric 0.0mm to 0.35mm
Imperial 0.000” to 0.014”
Alignments
Adju s t m e n t Lin k
SS02 Sliding Table - Centre Locked Position
To Next Page
