SS02 Centre locked position
The sliding table can be a fairly tricky aspect of the machine to adjust, but if the
following technique is applied it will be possible to adjust the sliding table to within the
tight tolerances specified by the FELDER group.
First, a quick description of the functions of the securing nuts (see figure SS02.1)
1. The main fuction of the rectangular washers is to help to spread the load that
the screw head would otherwise place directly onto the slidng table bed.
2. The function of the top nut is to secure the sliding table bed to the screw
3. The middle nut (just above the chassis) controls the hieght of the sliding table,
moving the nut down will raise the table, moving it up the screw will lower the
table (at that point)
4. The lower nut (underneath the chassis) is for tightening the entire sliding table
assembly to the chassis.

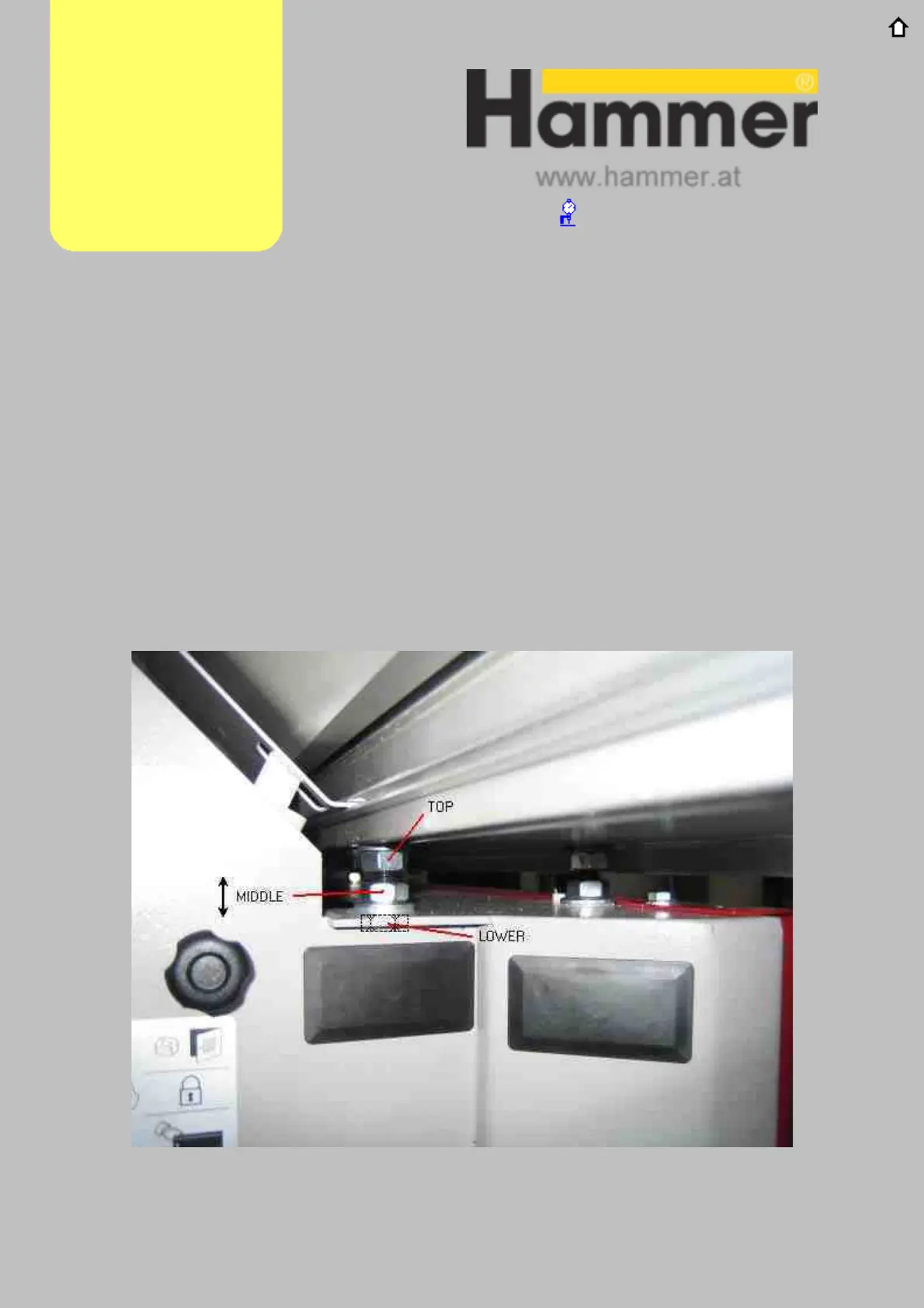

Figure SS02.1 Sliding table securing nuts
Depending on the length of the sliding table, the locations of the adjustments vary
slightly. The permutations are shown in the following diagrams:
Adjustments
Alig nm e nt Lin k
Continued…
