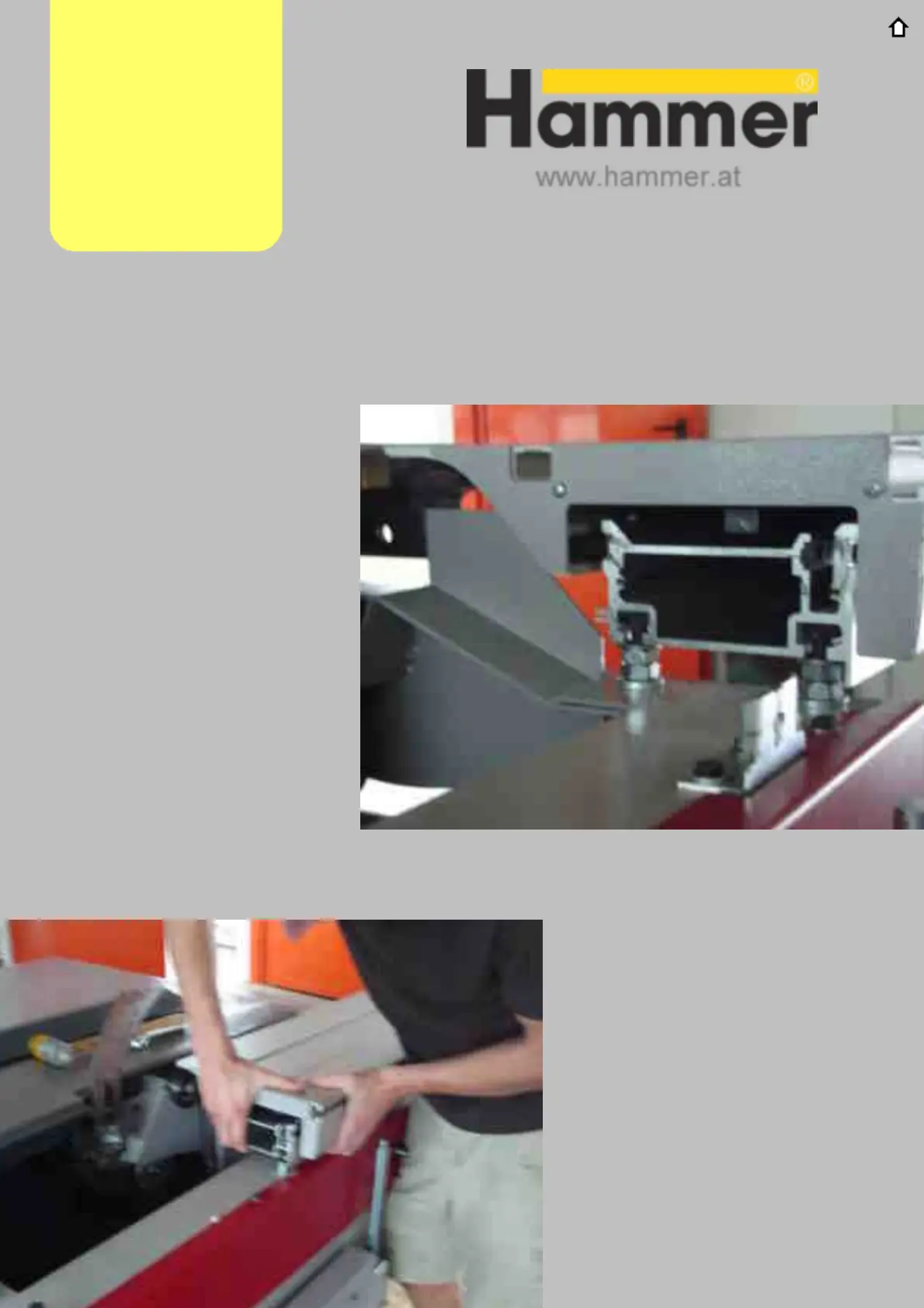

Once in situe, carefully guide the sliding table over the securing screws as shown in
figure ST01.2. If the sliding table does not s
lide onto the screws easily, make sure the
sliding table is being held level and that the screw head is turned so that two of its
side faces are parallel to the inside of the sliding table channel.
ST01.2 Sliding table sliding into
Carefully push the sliding table over all of the screwheads, being careful not to catch
your fingers in the process! Figure ST01.3
Figure ST01.3 Sliding the table all the way along
place over the screw heads
Continued…
11.Assembly
