The correct position of the sliding table is determined by first unlocking the sliding
part of the table and moving it to the very front of it’s travel, as shown in figure
ST01.4. The front of the sliding table should be level with the start of the cut-out
section in the black pla
stic insert.

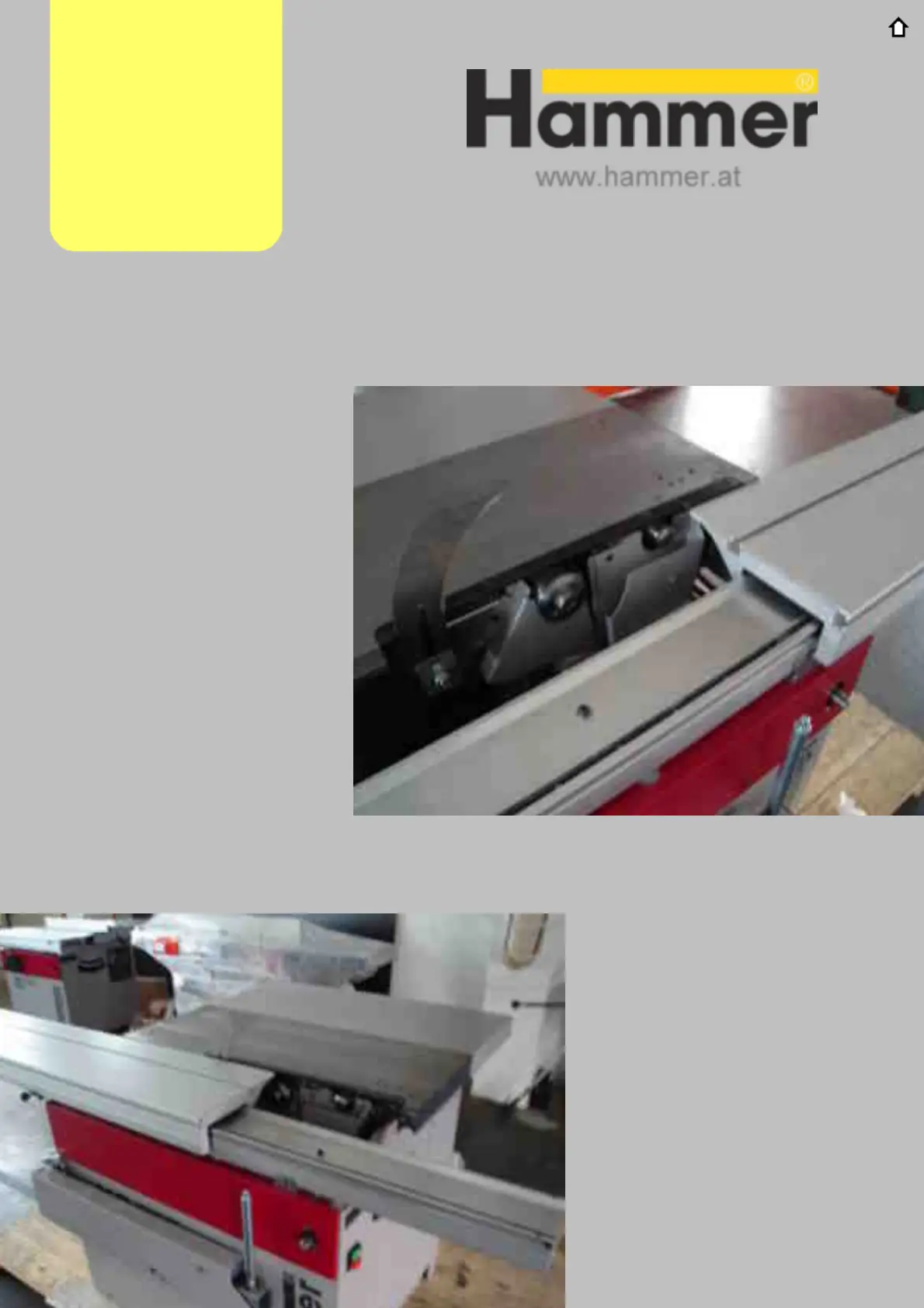

Figure ST01.4 Front of the sliding table travel
This position can be verified by moving the slding table to the very end of the travel,
where the sliding table should stop with the back edge of the table level with the
centre, or axis, of the saw blade. This is shown in figure ST01.5.
Figure ST01.5 Sliding table at the end of
travel, back edge level with saw axis
Continued…
11.Assembly
