When you are happy that the sliding table is in the correct position, lock it down by
tightening the top nut on each screw only, leaving the two on either side of the
chassis alone (otherwise you will alter the alignment of the sliding table to the cast
iron table). This screw is shown in figure ST01.6

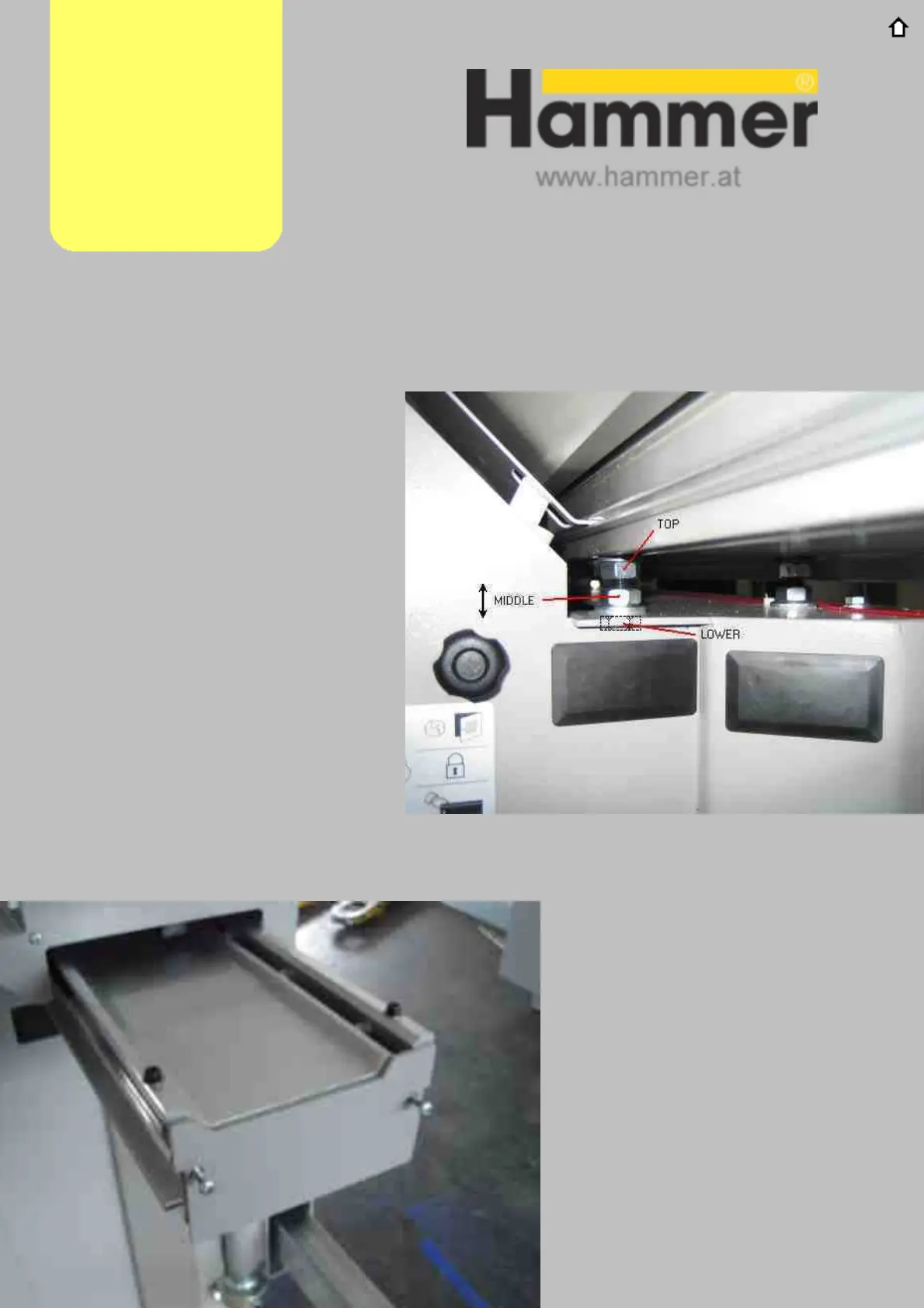

Figure ST01.6 Showing the three locking nuts. ONLY
After the sliding table locke down, you can assemble the end plate(s) to the bed of
the slding table, shown in figure ST01.7
ST01.7 Coverplates for sliding table bed
use the top one to lock the slding table in place!
11.Assembly
