If the 90° angle that the shaper makes to the cast iron table (in the tilting plane only)
is not aligned to within the specified tole
rance limits, then an adjustment can be made
to the 90° stop on the tilt-controlling axle. It is pictured in figure SH02.1 and can be
accessed through the cutout or from the access hatch for the shaper. You will need
to loosen off the stop with an allen screw first, turn it along the axle in the required
direction, lock it back into place and then return the shaper back to 90° to check the
new alignment. Once checked, re-adjust as necessary.

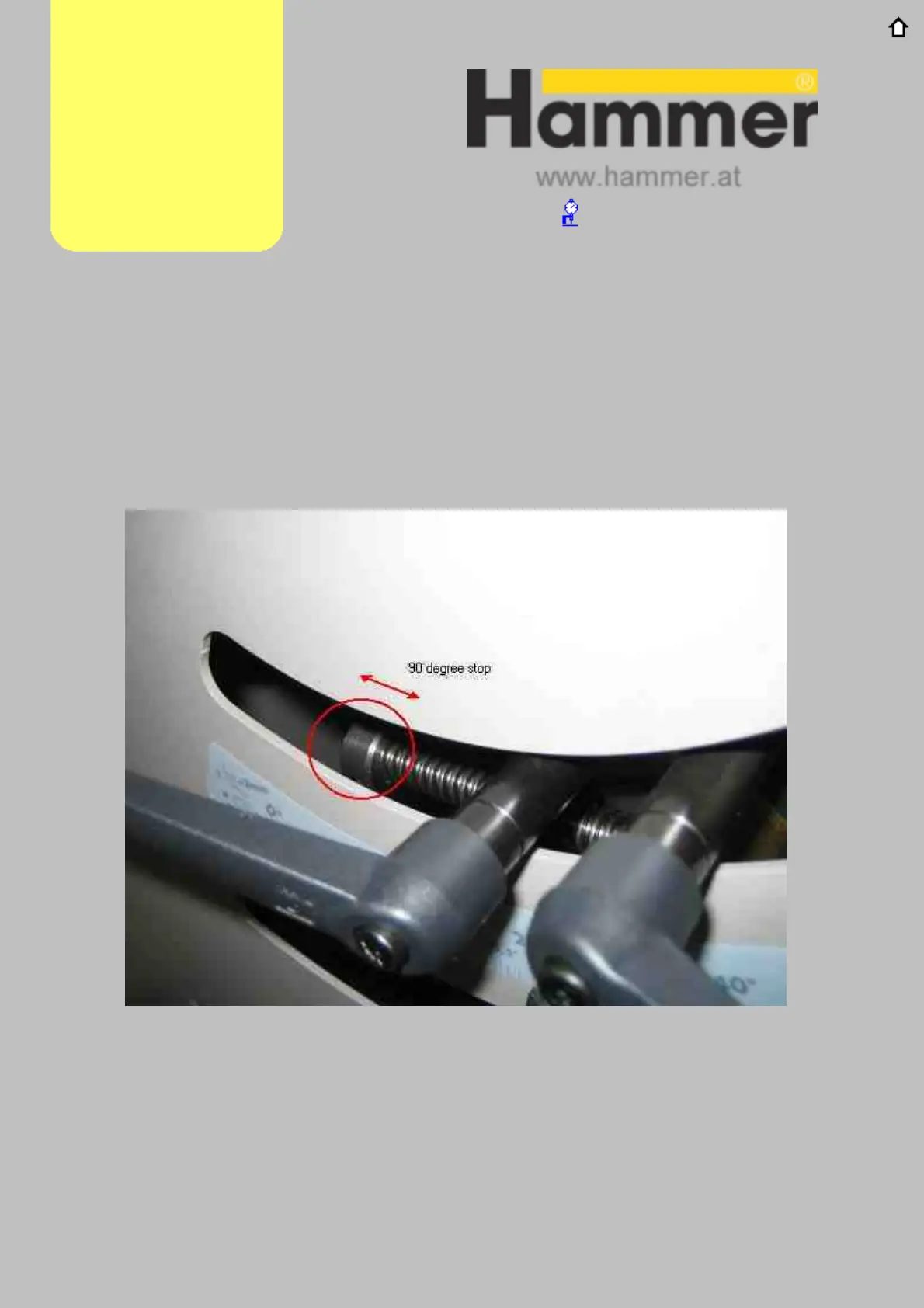

Figure SH02.1 The 90° stop on the tilt-controlling axle
Adjustments
Alig nm e nt Lin k
SH02 Shaper Spindle at 90° (for tilting spindles)
