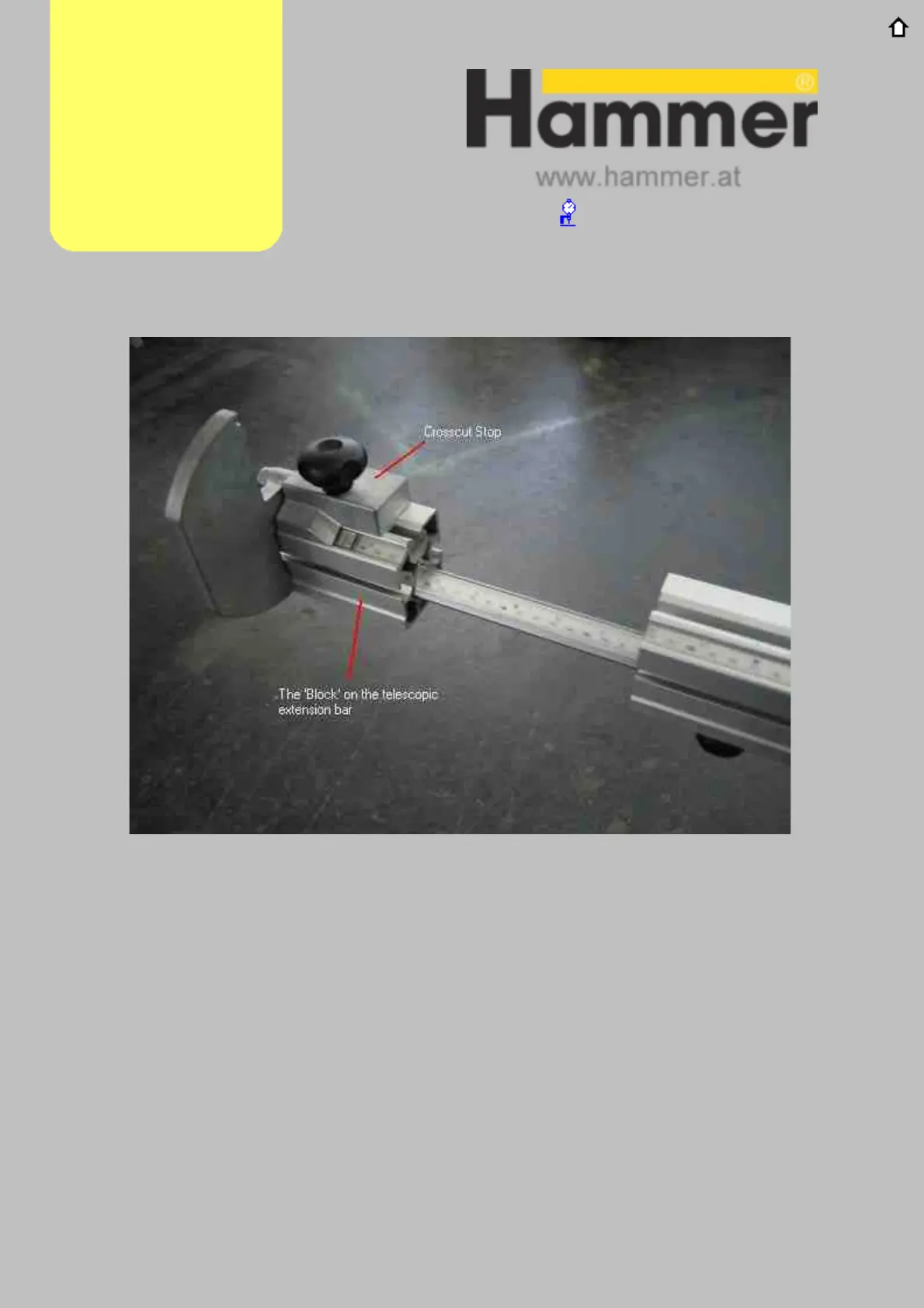

Figure SS07.2 Crosscut telescopic extension
If necessary, the stop and block (Figure SS07.2) can moved along the telescopic
extension bar. Figure SS07.3 shows the location of the allen screw which, if
slackened off slightly, will permit the movement of the stop and block. Make an
adjustment to the position of the stop and block and lock it back into place, then re-
check the new alignment.
Adjustments
Continued…
Alig nm e nt Lin k
SS07 continued
