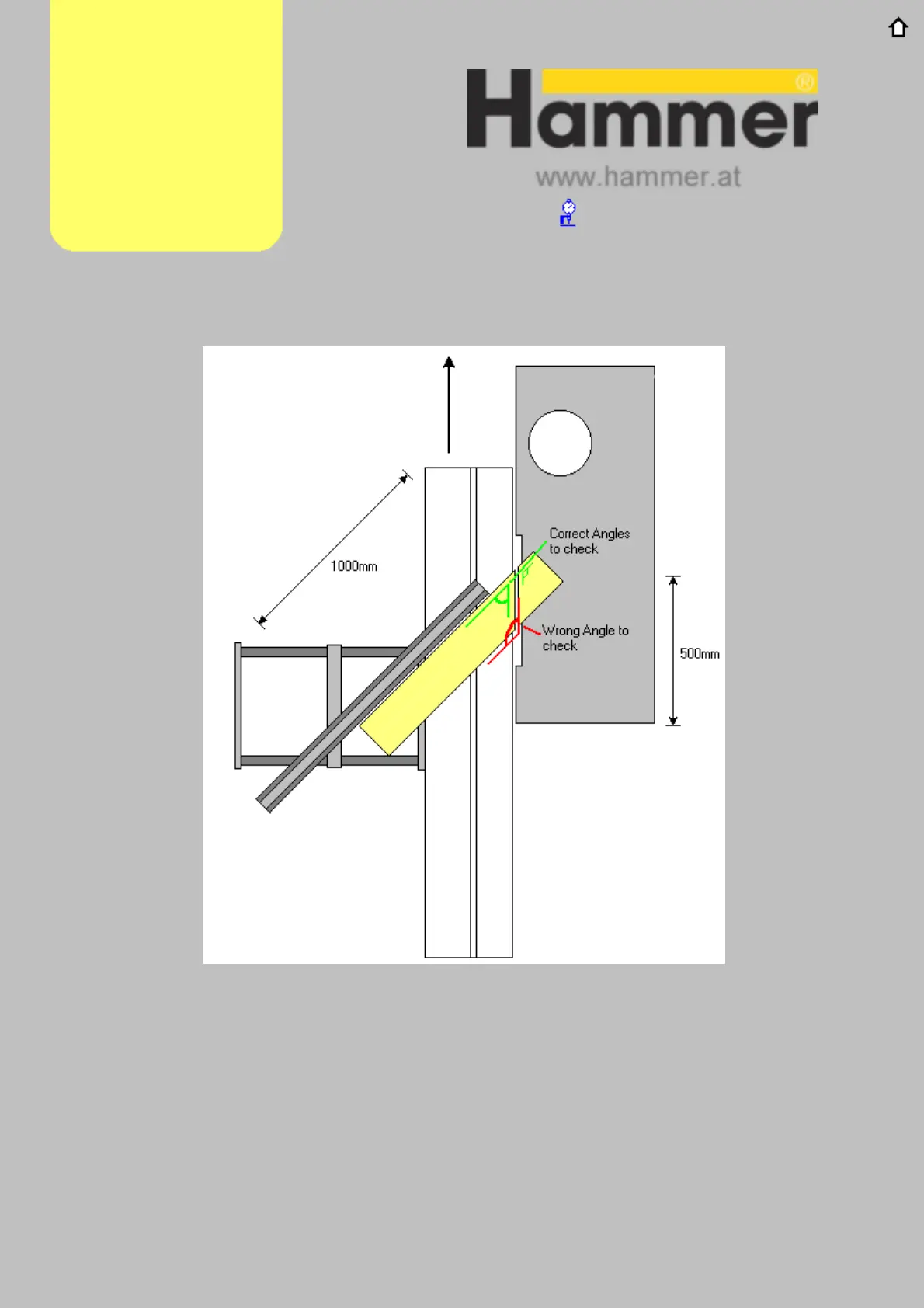

Figure SS08.2 The correct angle to check
Note the measured angle, but do not yet make any adjustment as we also need to
check the 45° angle from the other side of the outrigger, as shown in figure SS08.3.
Repeat the cut and measure the 45° angle produced from this position.
Adjustments
Continued…
Alig nm e nt Lin k
SS08 continued
