Calibration of the rip fence scale is quick and easy for whichever Hammer you own.
The first step would be to set the rip fence at a given position (say 12”), lock it down
and make a cut from it. Measure the cut workpiece and adjust as necessary:
For machines with the round guide bar, see figure SR09.1, for combination
machines, see figures SR09.2 and 9.3.

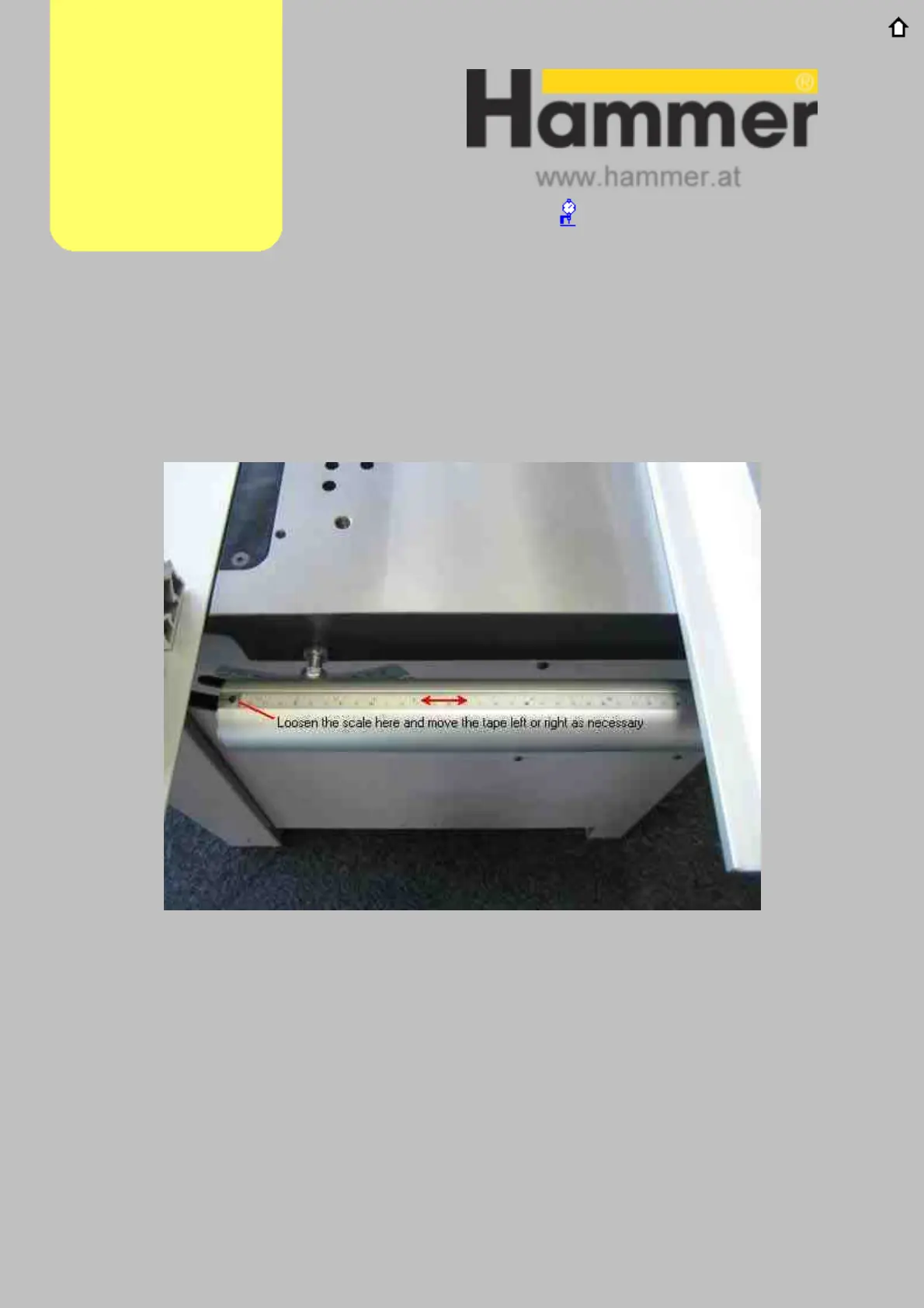

Figure SR09.1 Scale adjustment on the Guide bar
Adjustments
Continued…
Alig nm e nt Lin k
SR09 Calibration of the Rip Fence Scale
