220-2 and C-220 Cutting
Assembly

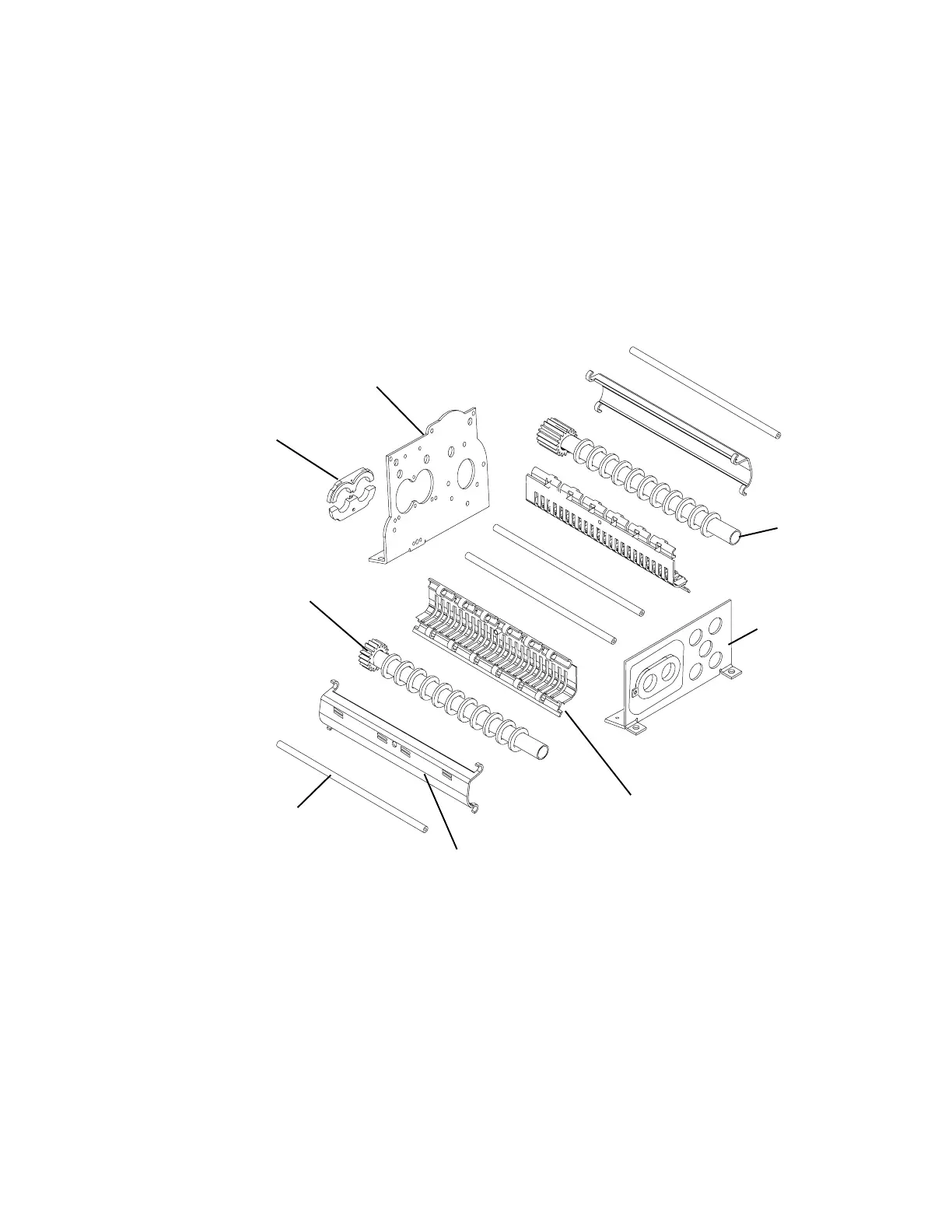

Models 220-2 and C-220 are strip-cut shredders. The
cutting assembly consists of 2 cutting shafts that are
protected by the stripper shrouds and strippers. Four
distance shafts hold the cutting assembly together and
attach to the left and right bearing plates.
stripper
shrouds (2)
small cutting
shaft
assembly
distance
shafts (4)
left bearing
plate
strippers (2)
journal
bearing
inset
large cutting
shaft
assembly
220-2 and C-220
Cutting Assembly
right bearing
plate
