Fellowes 220-2 - Wiring Diagrams; Models 220-2, 220 C-2, C-220, and C-220 C

33

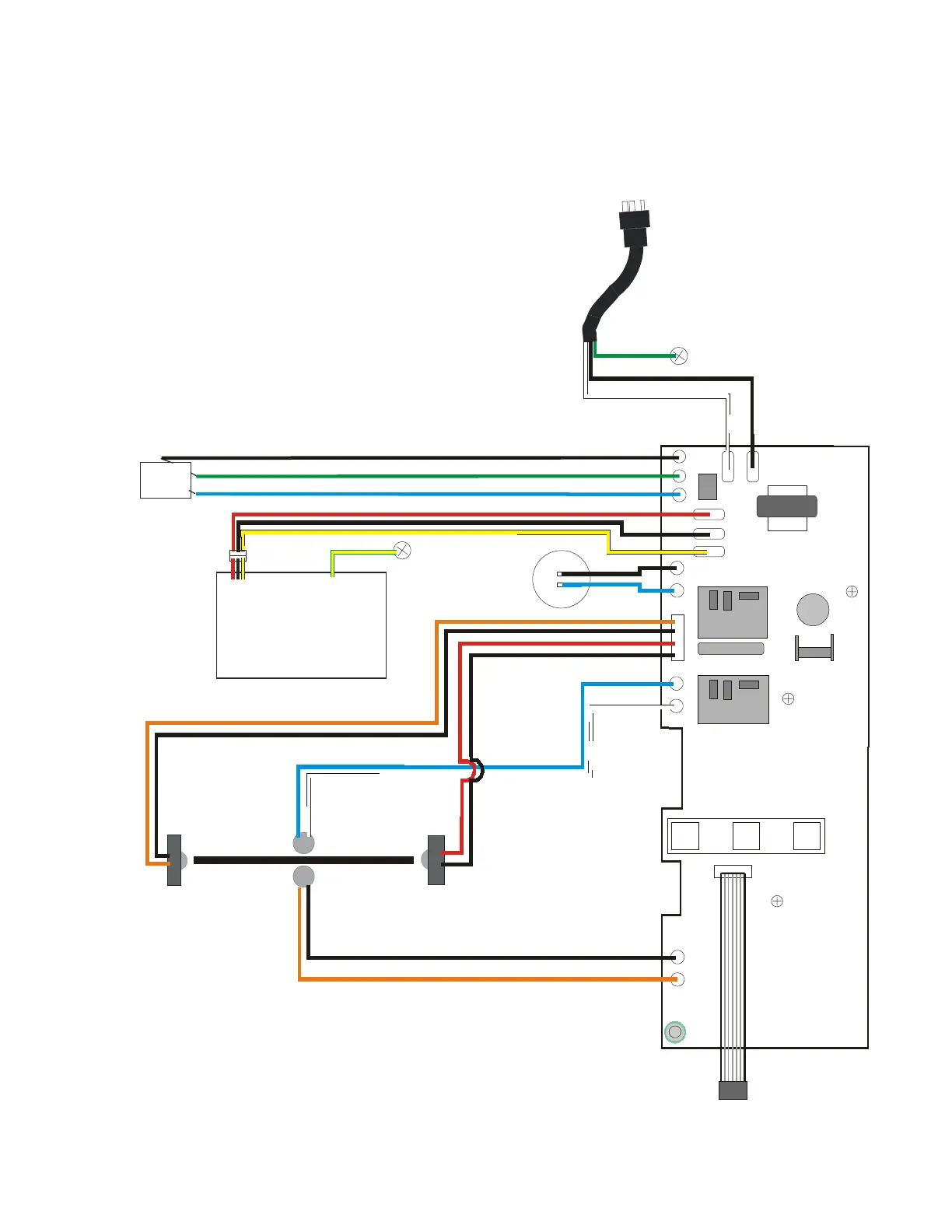

Wiring Diagram
Models 220-2, 220C-2, C-220 & C-220C
Version 1
PC Board
Capacitor
Door
Closed
Switch
Motor
Paper
Feed
Slot
Basket Full
Sensor (right)
white
black
black
red
green/yellow
Paper
Jam
Sensors
Power Cord
Ground
blue
blue
black
green
black
white
green
red
yellow
black
black
cable to operator
panel switches
orange
blue
black
orange
Basket Full
Sensor (left)
Ground
