Fellowes 220-2 - Page 40

34

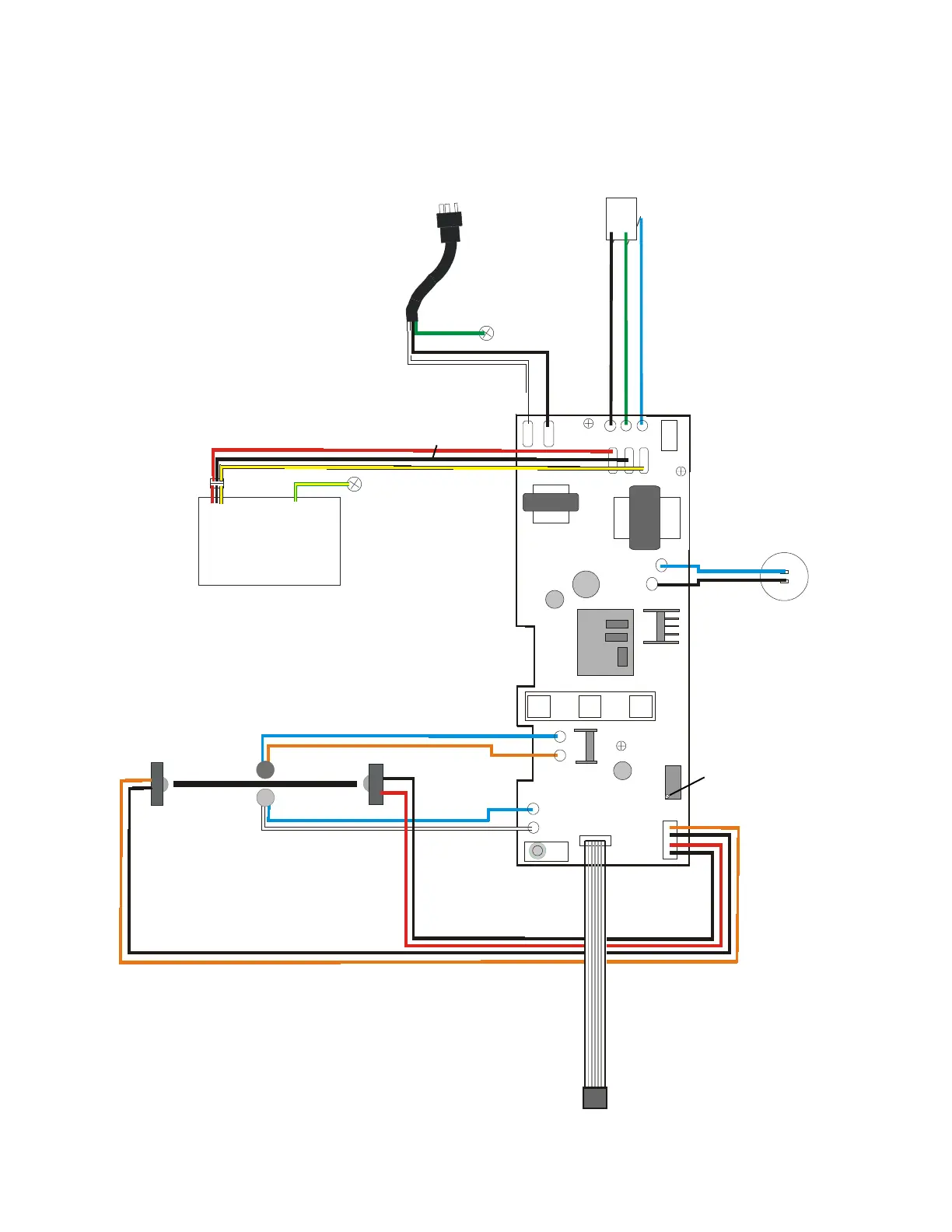

Wiring Diagram
Models 220-2, 220C-2, C-220 & C-220C
Version 3
black
Ground
green
white
black
blue
red
green
blue
black
black
red
blue
orange
white
blue
black
orange
cable to
operator panel
switches
green/
yellow
yellow
black
Motor
Ground
Door Closed
Switch
Capacitor
PC Board
Paper Jam
Sensors
Basket Full
Sensor (left)
Basket Full
Sensor (right)
current limit
adjustment
screw
Power
Cord
