Fellowes 220-2 - Cutting Assembly

37
Reference Fellowes
Description No. Part No.
5 Stripper set (2 strippers, 2 shrouds)
5.8 sc 230501/220601 31626
3.9 sc 220501/220601 31670
6 Journal bearing insert
sc 220714 31629
cc 220715 31671
Igus bearing pressed w/bushing
sc 220711/220340 31632
cc 250712/250340 31678
7 Long cutting shaft assembly
5.8 sc 230721 31630
3.9 sc 220721 31676
cc 250741 31672
8 Short cutting shaft assembly
5.8 sc 230821 31631
3.9 sc 220821 31677
cc 250841 31673
9 Distance shafts
sc (4), cc (2) bottom 220402 31628
cc only (2) top 250402 31669
Long shaft spacer (not shown)
sc 220312 31612
cc 250312 31659
Cutting block, complete (left/right
bearing assemblies, long/short
cutting shaft assemblies)
5.8 sc 31658
3.9 sc 31680
220-2, 220C-2, C-220, and C-220C Parts Lists - continued

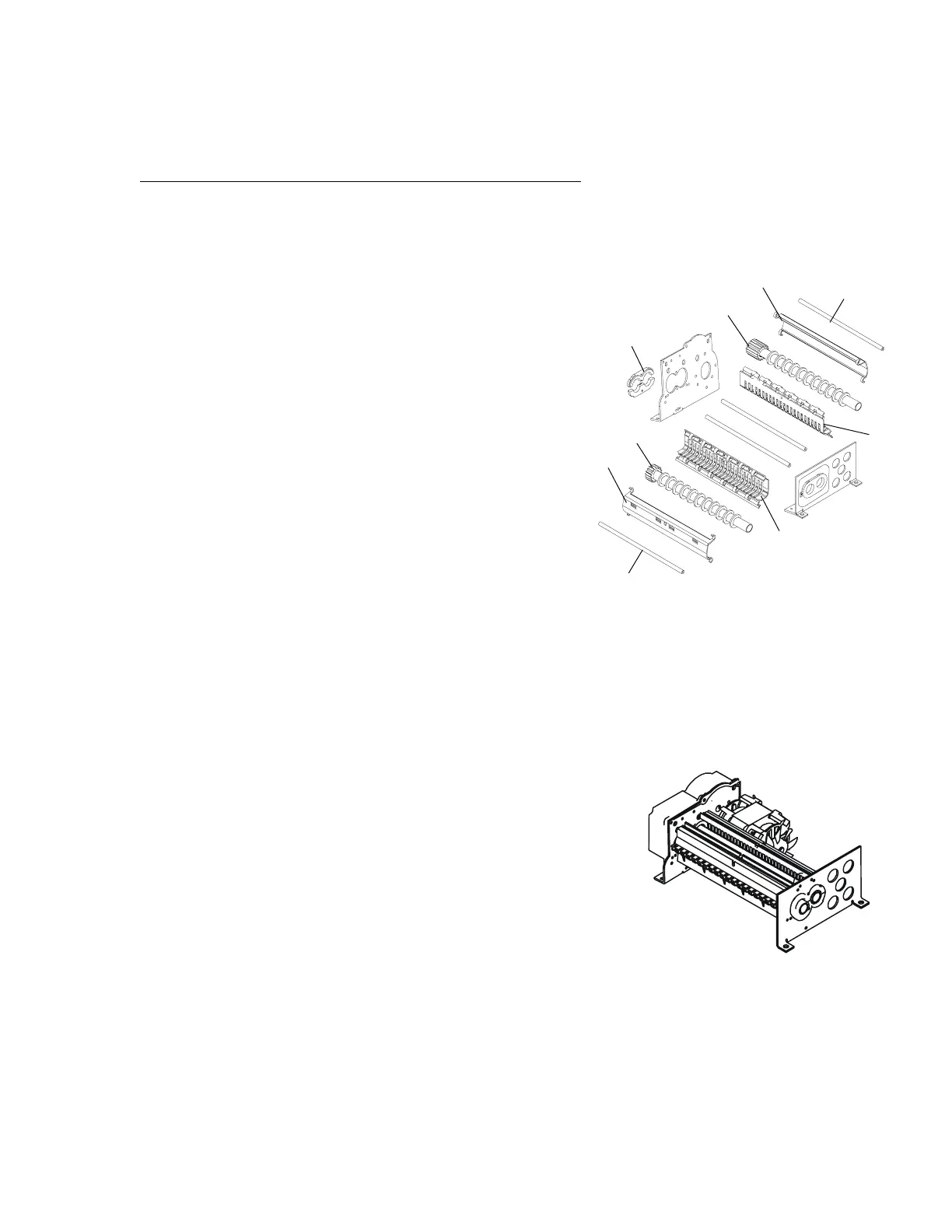

Cutting Assembly
6
8
7
9
5
5
5
5
9
