7.10 Centimeter range with Trimble receiver
7.10.1 FENDT base station
7.10.1.1 Configure the FENDT base station correction signal — Trimble AG-715 450 MHz radio
modem
Procedure
1.
Select the correction signal via the "Signal
Type" selection field.
NOTE:
Correction signal activation can only be
received if a green tick appears in the
connection status. Where applicable, verify
channel, frequency and signal format.
2.
Select 'Fendt Station' under station type
3.
Set the mode
4.
Set the frequency

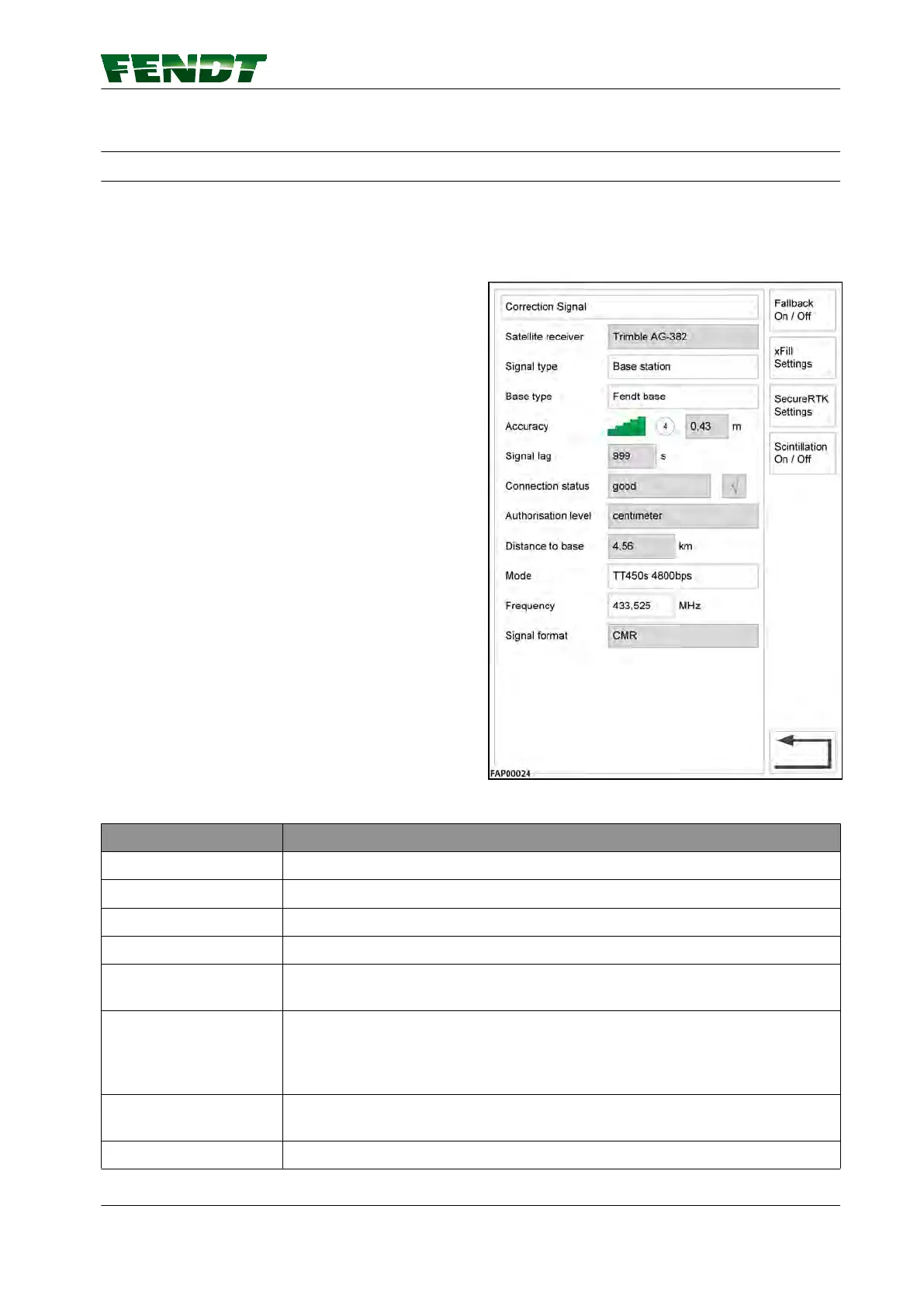

Fig. 53
Display
Satellite receiver Designation of the installed receiver
Signal type The correction signal source can be selected here
Base Type Fendt Base
Accuracy Bar indicator and decimal value of static accuracy
Signal lag Specifies the time in s taken to receive the correction signal update. If 999 is
shown here, the correction signal cannot be currently received.
Connection status Specifies the connection status of the GNSS receiver to the source of the
correction data (e.g. connected, update required, expired). The tick shows
whether the GNSS receiver is currently connected to the correction data
source.
Authorisation level Specifies the accuracy level of the GNSS receiver (depending on the hardware
modules installed in the receiver)
Distance to Base Distance in m
