Tripod

Fig. 105

Carrying case

Fig. 106

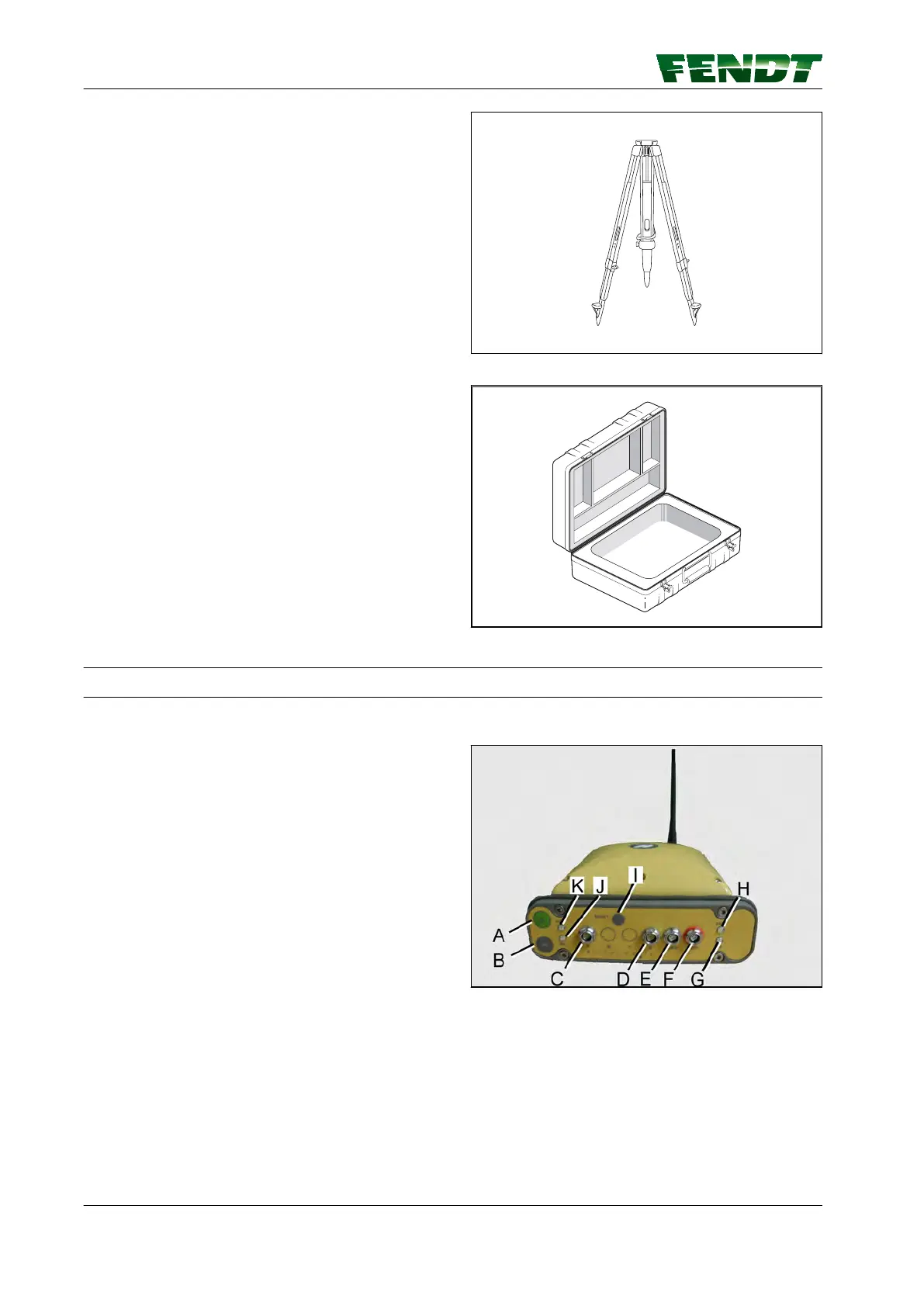

7.17.3 LED and keys on the base station

Base station with radio module

(A) ON/OFF button

(B) Function button

(D) RS 232 communication interface D

(E) USB communication interface

(F) Current supply connector Input: Operation:

6-28 VDC; Load: 9-28 VDC (power

consumption < 2A)

(G) Modem status LED

(H) Battery status LED

(I) Reset button

(J) Recording status LED

(K) Implement status LED

Fig. 107

7. Start-up

136 VarioGuide

438.020.070.012
