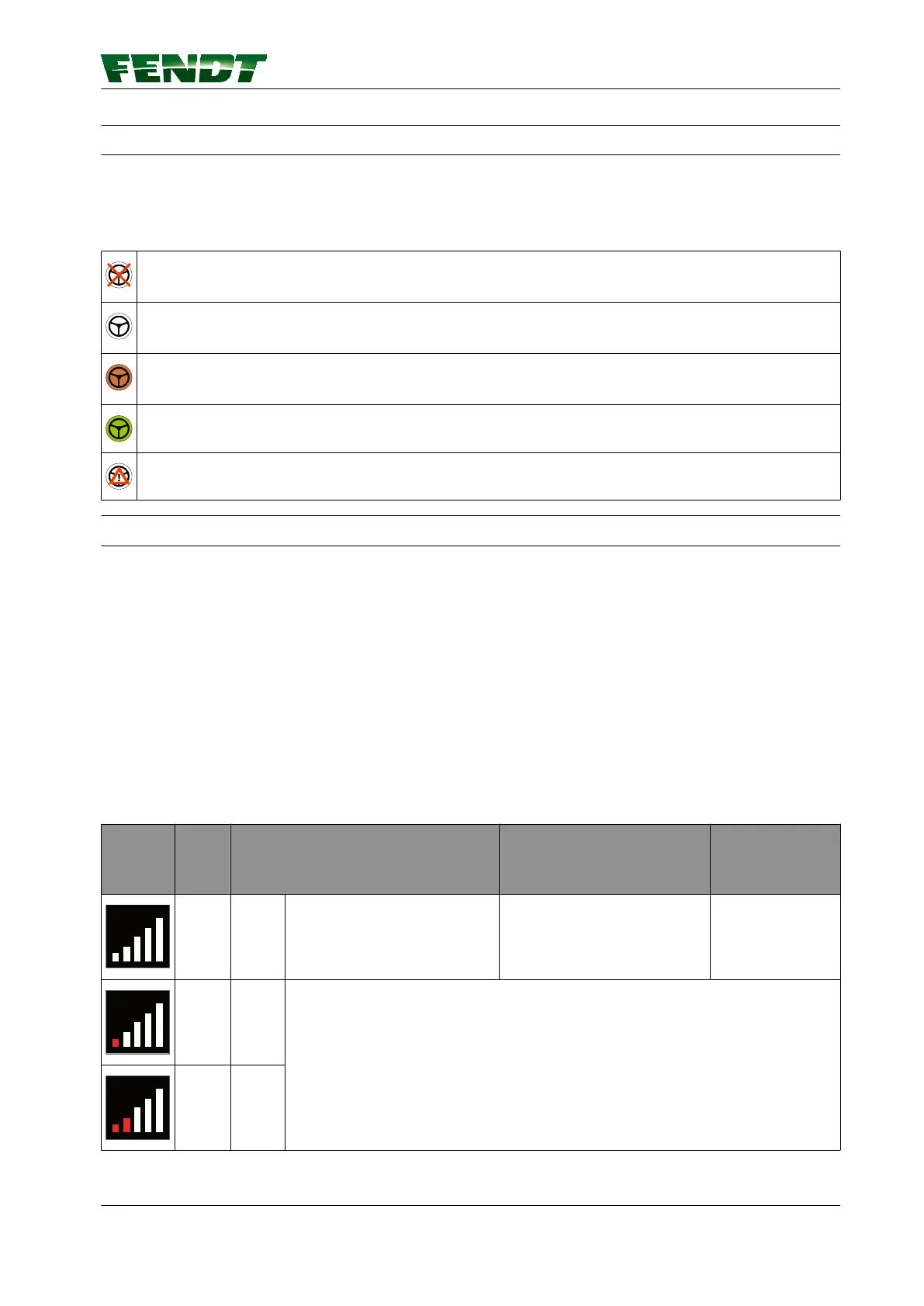

5.2.4 Steering status
Steering status information
Steering status is shown in map view and on the VarioGuide information page as a steering wheel icon
which varies in appearance.
Steering icon struck through on a white background: Not ready for operation. The activation
conditions have not been satisfied, and the automatic steering system cannot be enabled.
Steering icon on a white background: Ready for operation. The automatic steering system can be
activated.
Steering icon on an orange background: The automatic steering system has been activated but not
all activation conditions are satisfied (distance to way line too great, etc.).
Steering icon on a green background: Automatic steering is active.
Steering icon with a warning triangle on a white background: A system fault has occurred.
5.2.5 Novatel bar indicator, Trimble
NOTE:
Automatic wayline guidance can only be activated when at least three bars are displayed.
The accuracy of positioning is dependent upon the positions of the satellites relative to each other and the
position of the receiver, as well as the accuracy of time measurement and the runtime.
At favourable angles (~ 90°), the accuracy of measurement will be greater than at acute angles or angles of
approx. 180°.
HDOP (Horizontal Dilution of Precision)
The HDOP value is a measure of measured value scatter; the lower the value, the lower the degree of
measurement error.
SV
SV indicates the number of satellites used.
Bar
indicato
r
GNSS Correction signal HDOP
SV
NOK NOK - - -
OK NOK only if fallback is deactivated
OK OK
