FENDT varioguide - Determine the Working Width, Navigation Point Distance and Coupling; Length

158 pages

To Next Page

To Previous Page

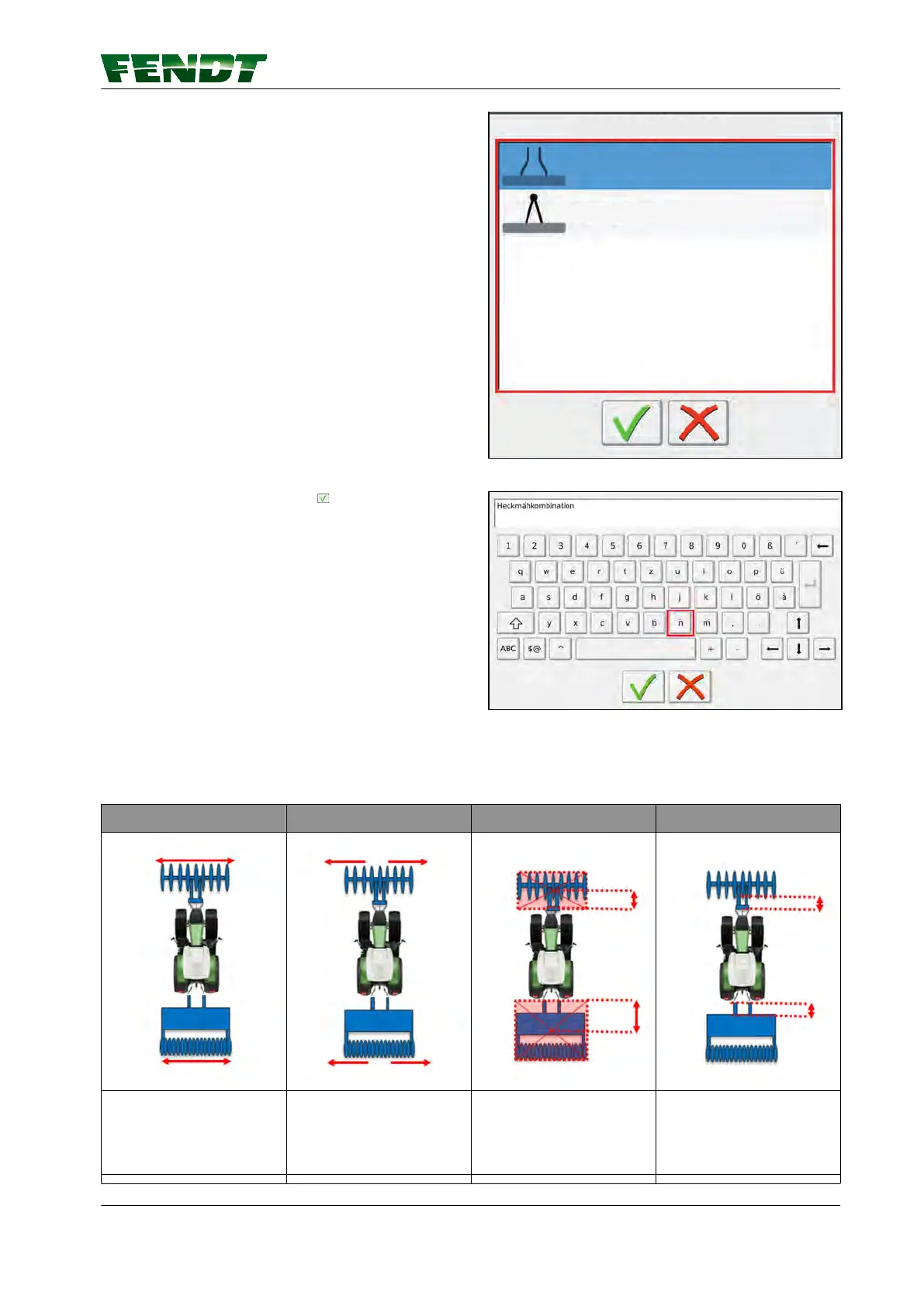

Select the trailer type.

Gezogenes Gerät

Heckkraftheber

Heckgeräteanbauposition auswählen

Fig. 19

Assign a name and press to confirm.

Fig. 20

7.2.4.2 Determine the working width, navigation point distance and coupling length

Working width Center Navigation point Coupling length

Actual working width of

the implement

Movement of the

implement from the

center (e.g. for mowers)

Distance of the

horizontal rotational axis

of the implement from

the lower link hooks

Distance of the

processing area of the

implement from the

lower link hooks

7. Start-up

VarioGuide 77
