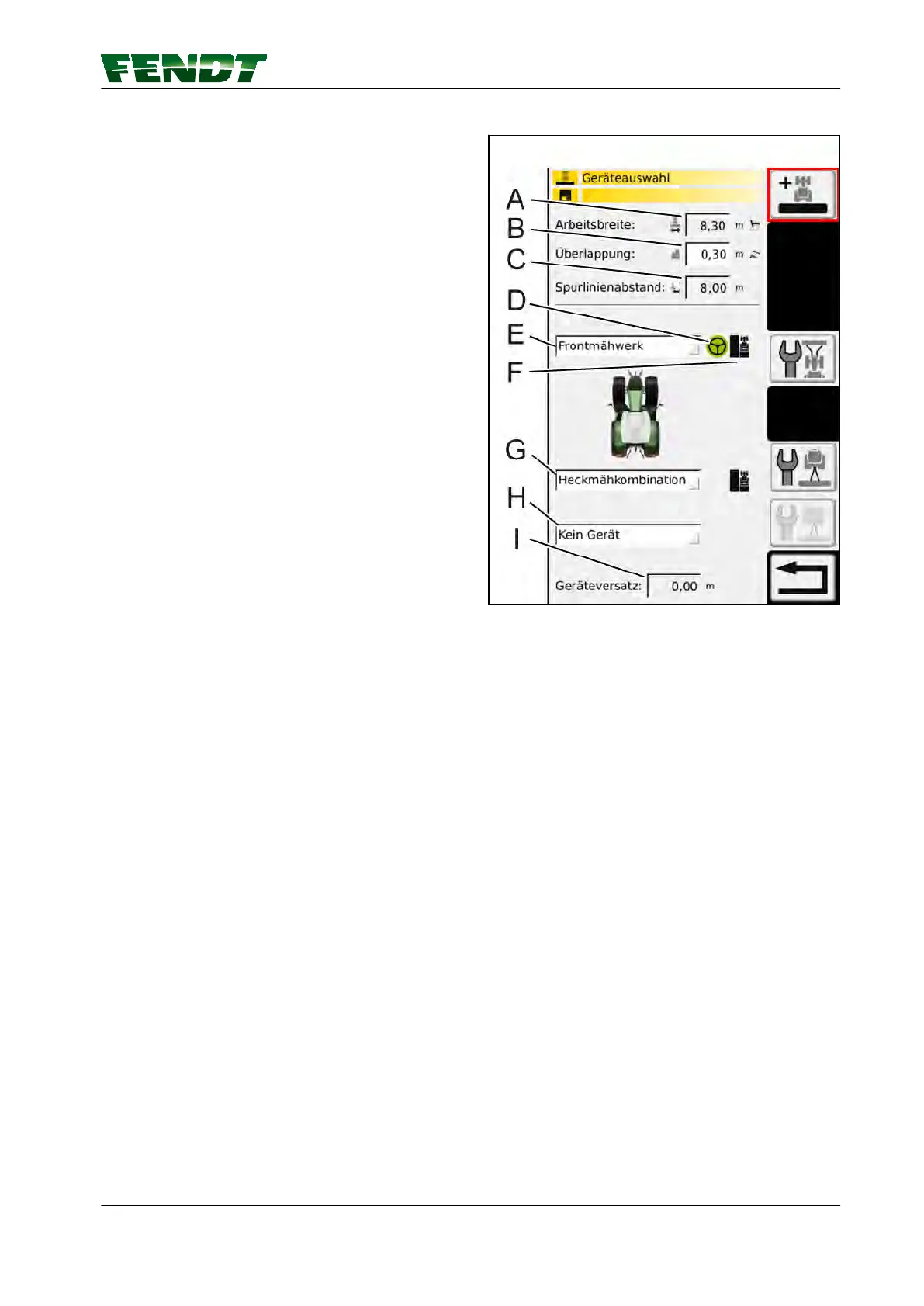

Display
(A) Working width display: actual determined/
measured working width
(B) Overlap display: required overlap (affects the
map display and the wayline distance)
(C) Calculated wayline distance display
(D) Symbol: Implement determines wayline
guidance
(E) Front-mounted implement selection field
(F) Symbol: Implement is used for processed
area
(G) Rear-mounted implement selection field
(H) Second rear-mounted implement selection
field
(I) Implement offset (calculated)
Fig. 7
