Fermax 60305 - Panel Internal Wiring Diagram

Pag 41
KIT
VIDEOPORTERO DIGITAL 5 HILOS
VIDEOPORTERO DIGITAL 5 HILOS

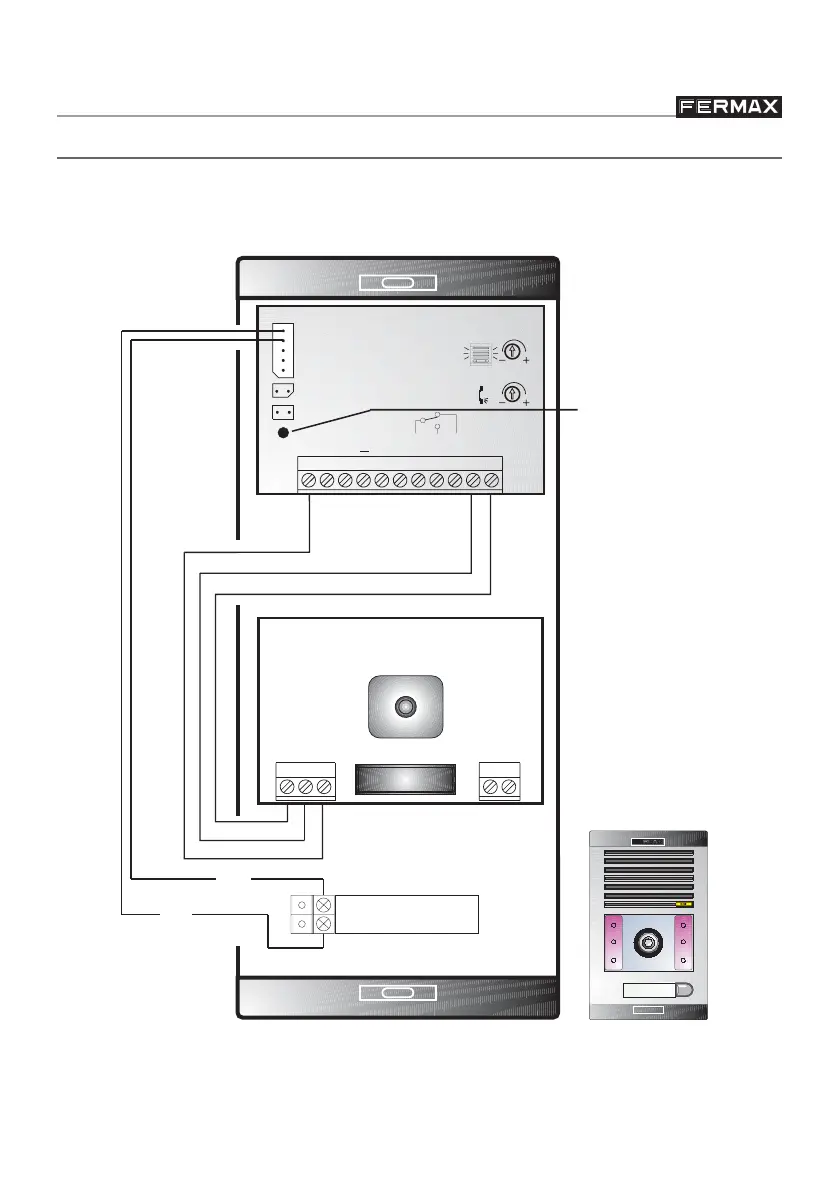

PANEL INTERNAL WIRING DIAGRAM
The outdoor panel leaves the factory prewired. The system cannot function if these
connections are altered or removed. So, when you fix a wire to any of the prewired
terminals you must keep the wiring already in place.
1
CT
+ -
V-V+
..........
..........
....
....
Cp
LL1
Ct
L
B
S
EXT.
INT.
C
B
No
+-
+12
Nc
PLACA
TELEFONO
JP2
HIGH RESOLUTION
CCD CAMERA
PAN &TILT
(*) DIAGNOSTIC LED
(*) The ADS KIT amplifier incorporates electronic circuits to protect against installation
wiring errors, presenting in each case the symptoms explained in the
TROUBLESHOOTING TABLE , (at the end of this manual).
ADS KIT AMPLIFIER
VISION CAMERA
