Fermax 60305 - Auxiliary Devices Wiring Diagram

Pag 43
KIT
VIDEOPORTERO DIGITAL 5 HILOS
VIDEOPORTERO DIGITAL 5 HILOS
The extender (REF.2040) is used to be able to hear the call tone in a part of the house
other than where the Monitor is installed, for example in the garden. This diagram
indicates how to connect it without exposing the wiring of the rest of the installation.
1
2
HIGH RESOLUTION
FLAT MONITOR
Vo-
Vi-
+
L
-
CT
Vi+
Vo+
+A
-A
J1 PRG
CN2

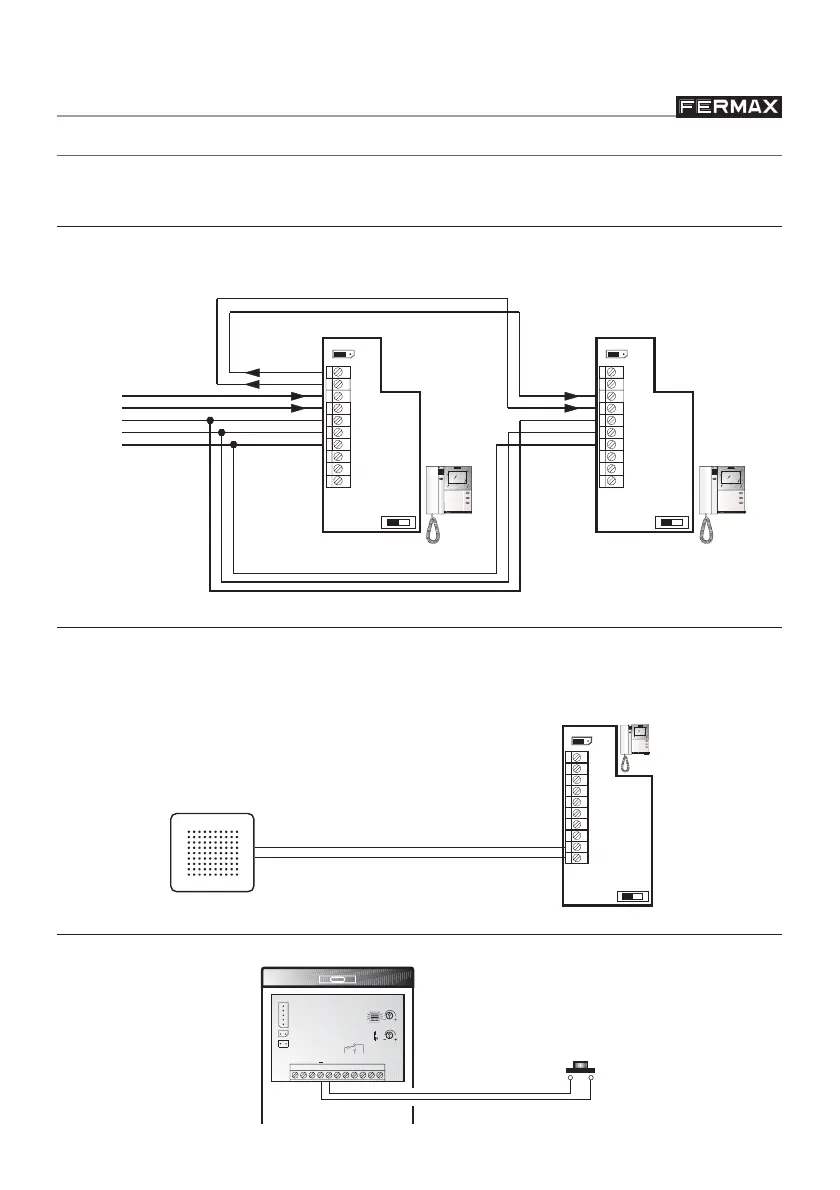

AUXILIARY DEVICES WIRING DIAGRAM
This kit may be enhanced with the accessories shown below.
Enhancement with secondary monitor
Call extender
How to install a pushbutton to open the door from inside.
Interior door release button
Ct
L
B
S
EXT.
INT.
C
B
No
+-
+12
Nc
PLACA
TELEFONO
JP2
ADS KIT
AMPLIFIER
How to add a secondary monitor. This means higher consumption in the installation
and it may be necessary to increase the section. See table on previous page.
Vo-
+A
-A
CT
-
+
L
Vi-
Vi+
106CI08C
J1 PRG
Vo+
CN2
1
2
HIGH RESOLUTION
FLAT MONITOR
Vo-
+A
-A
CT
-
+
L
Vi-
Vi+
106CI08C
J1 PRG
Vo+
CN2
1
2
HIGH RESOLUTION
FLAT MONITOR
+
L
Vi-
Vi+
-
Kit Monitor Secondary Monitor
From the
installation
