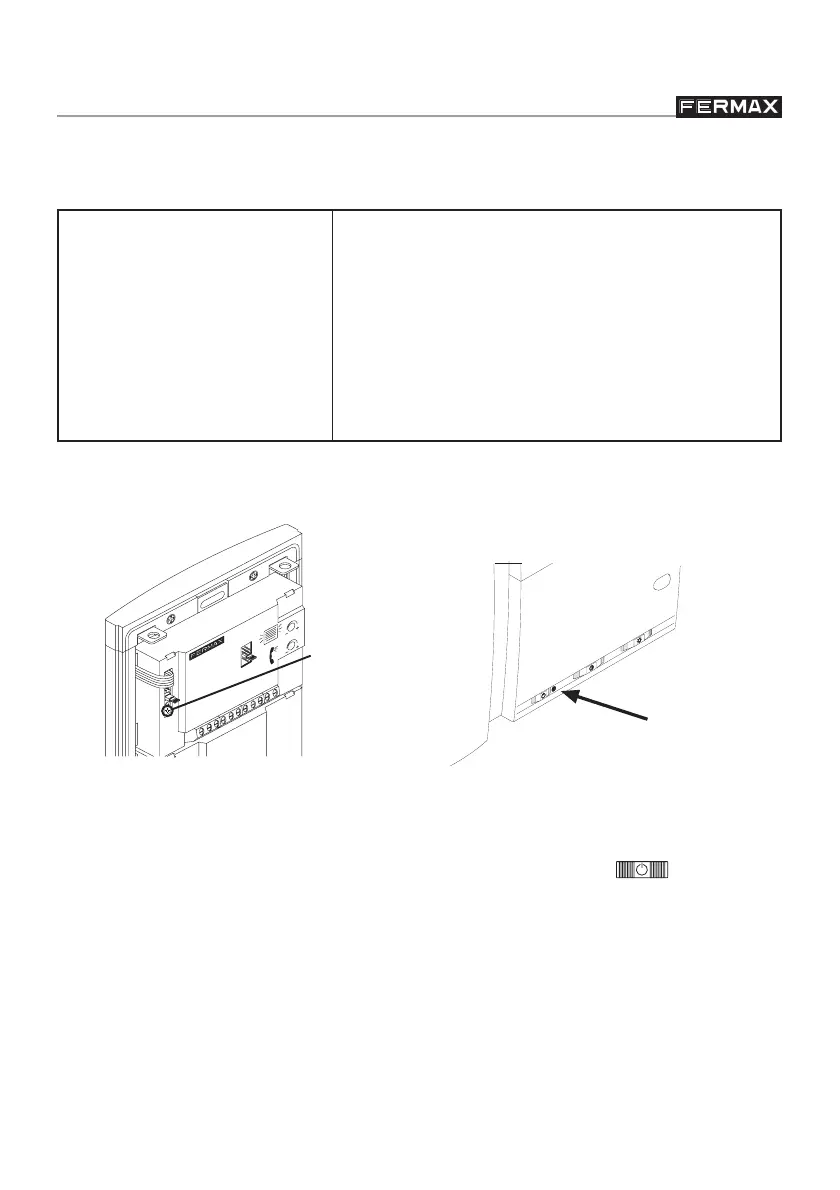

VIDEOPORTERO DIGITAL 5 HILOS
VIDEOPORTERO DIGITAL 5 HILOS
The ADS KIT amplifier incorporates
electronic protection circuits against
installation wiring faults presenting,
in each case, the symptoms
explained in the
TROUBLESHOOTING TABLE. If
when making a call the Diagnostic
LED emits short blinks, this
indicates that there is a short circuit
between «+» and «L», or inverted ca-
bles.
The on-off indicator shows if the Monitor
is on.
The ON/OFF switch
must be ON.
For prolonged periods of absence, turn
off the Monitor with this switch and it is
completely disconnected.
SYMPTOM
POINTS TO CHECK
Diagnostic
LED
Power status
LED
• Door release does not work well.
- Make sure you are using a 12 Vdc (continuous current)
door release, 0.3 A. max.
- Increase negative section.
- Distance between panel and monitor. Increase section
or add additional power supply.
- Power supply position. Maximum distance from panel:
30 metres. Increase section or add additional power
supply.
